Easy single-action cleaving for skill-free and speedy operation
PART#: K8
FEATURES;
● Precision cleaves for fusion splicing, also ideal for preparing fiber for pre-poished connectors
● Utilizes an automatic anvil drop for fewer required steps and better cleave consistency
● Cleave Angle of 90 Degrees ± 0.5 Degrees
● Its 16-position blade provides approximately 78,000 Cleaves
● Standard 125/250um & 125/900um fibers

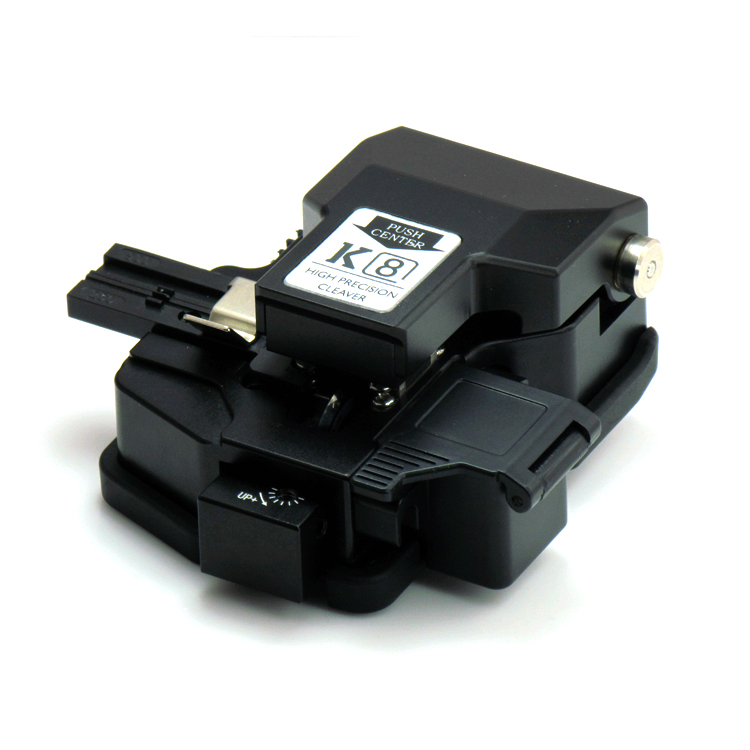

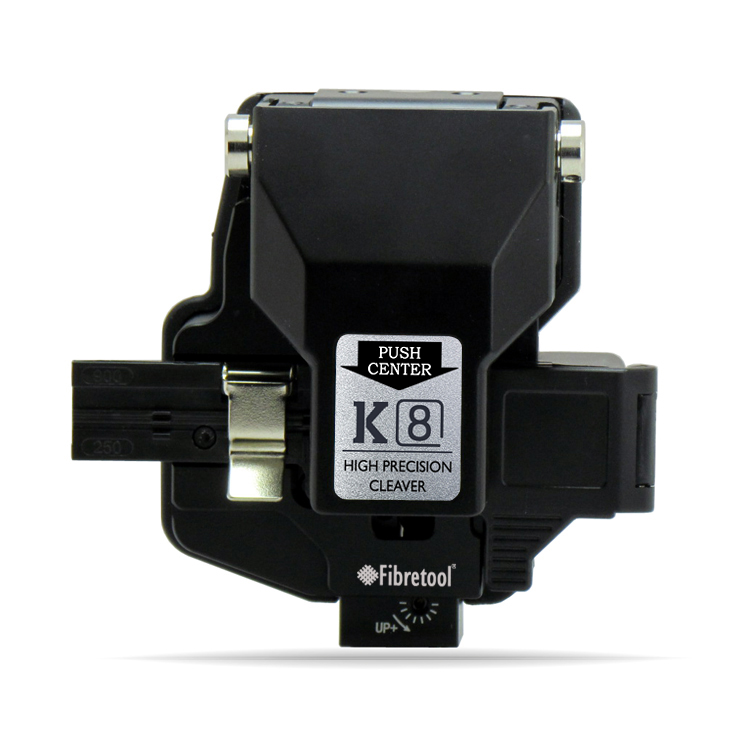

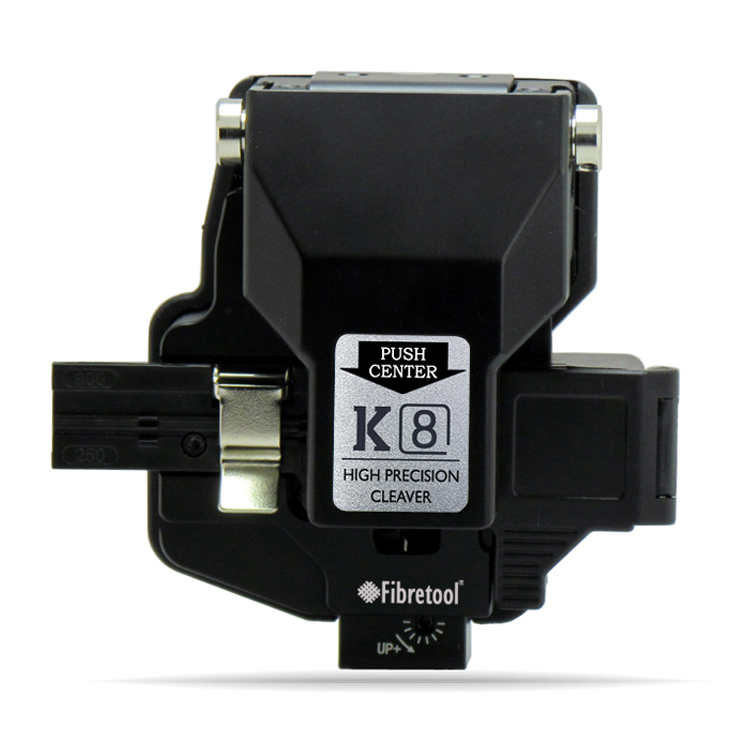

The K8 is the most versatile tool available for optical fiber cleaving. The K8 is ideal for use in fusion splicing, field termination, or any other precision application. It has a simple cleaving operation that can be performed in the palm of the hand, which allows the user to take the cleaver to fiber in limited slack applications. The K8 can perform cleaves on single fibers (0.25 to 0.90) and up to 12 count ribbons.
Technical Specifications:
Applicable range | Single Core Fiber / Ribbon Fiber |
Coating Diameter | φ0.25mm - φ0.9mm(Single) / 0.25mm(Ribbon) |
Cladding Diameter | 0.125mm |
Cleave Length | 5~30mm |
Typical Cleaving Angle | <0.5° |
Maximum Blade Life | 48,000 times (3,000*26) |
Number of Steps for Cleave | One Step |
Scrap Collection | Included |
Dimension | 110mm(W)*110mm(D)*40mm(H) |
Weight | 320g |
