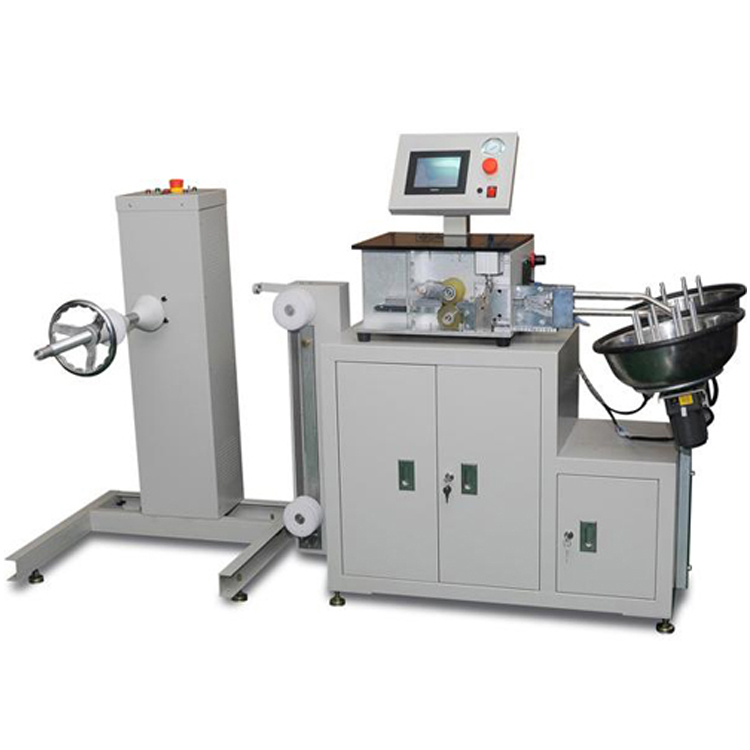

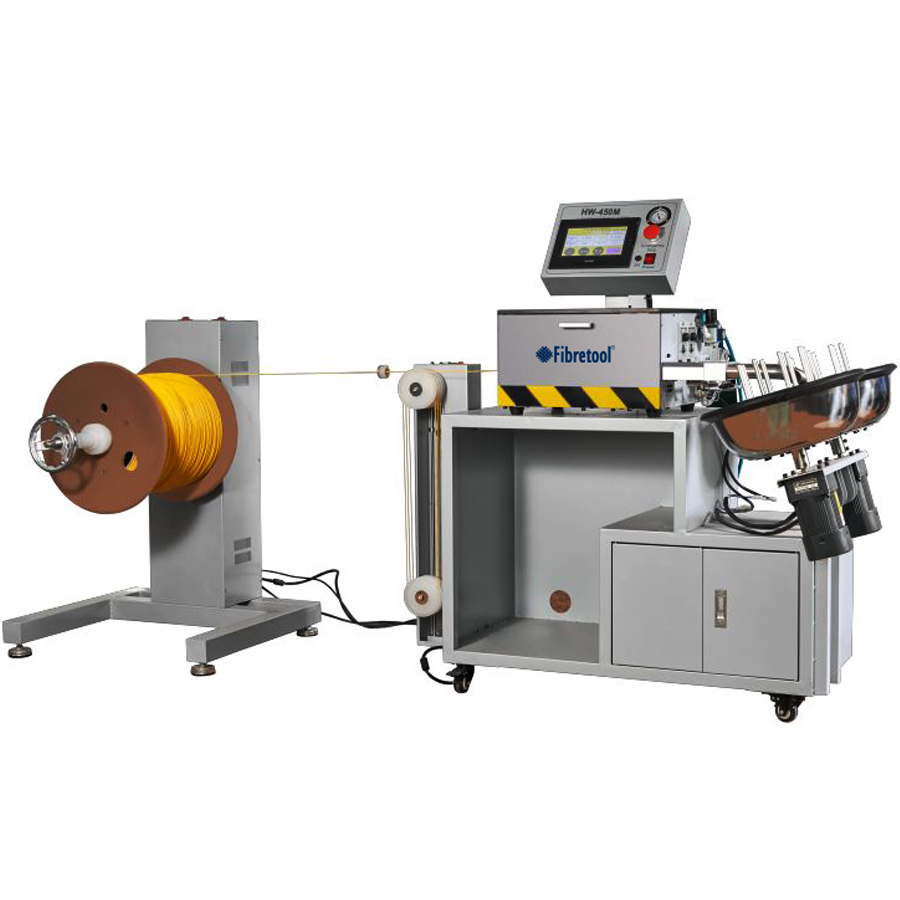

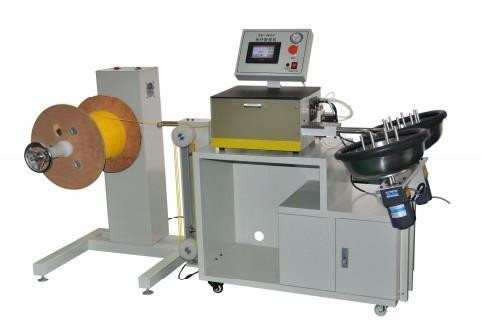

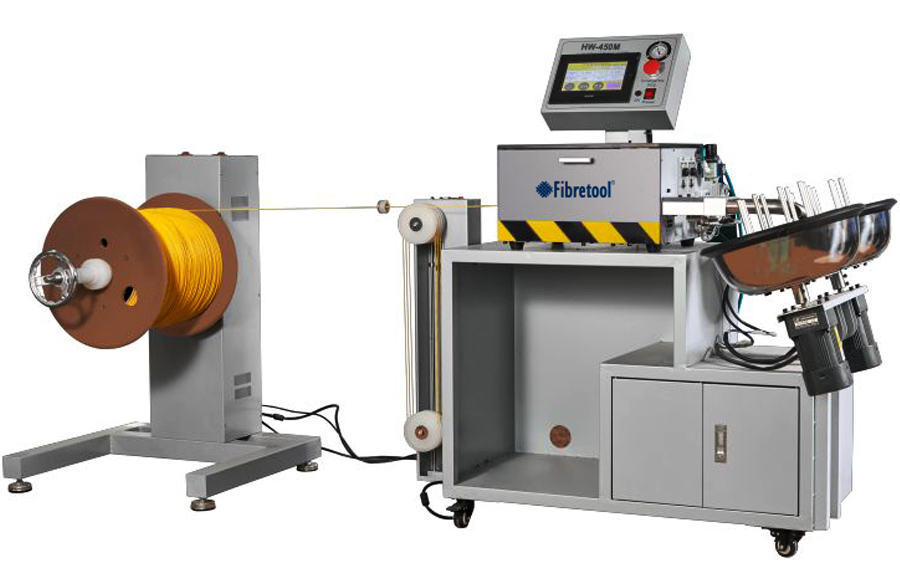

Automatic Fiber Optic Calbe Cutting and Rolling Machine
❤ Add to collection

Automatic Fiber Optic Calbe Cutting and Rolling Machine

A special machine for cutting and rolling cable during production line of 2.0 - 12mm simplex or duplex fiber optic patch cord.

PART#: HW-450M


FEATURES;


● HW-450M is applied for producing fiber optic patchcord

● It is a professional equipment with measuring length / cutting and winding fuctions

● It could cut different indoor optical fibers intorequired length and wind cable into circularity

● This equipment integrates the advantages from China and oversea factory’s cutting machines

● It increase an automatic feedback function for data groups

● It makes the measuring accuracy impove better

● It includes automatic winding and automatic cutting functions to protect the optical fiber

● Flexible for length and speed setting, High efficiency

● Friendly touch screen interface, compact window, self-defined language: Chinese / English / Korea

● Easy to handle, High precision, High speed, Low noise.

￥0.00
0.00
￥0.00
￥0.00
Weight：0.00KG
Description

A special machine for cutting and rolling cable during production line of 2.0 - 12mm simplex or duplex fiber optic patch cord.

PART#: HW-450M


FEATURES;


● HW-450M is applied for producing fiber optic patchcord

● It is a professional equipment with measuring length / cutting and winding fuctions

● It could cut different indoor optical fibers intorequired length and wind cable into circularity

● This equipment integrates the advantages from China and oversea factory’s cutting machines

● It increase an automatic feedback function for data groups

● It makes the measuring accuracy impove better

● It includes automatic winding and automatic cutting functions to protect the optical fiber

● Flexible for length and speed setting, High efficiency

● Friendly touch screen interface, compact window, self-defined language: Chinese / English / Korea

● Easy to handle, High precision, High speed, Low noise.

OVERVIEW:

Cutting cable dia.: 2.0mm - 12.0mm.

Cutting Length:1-9999mm, can be setting.

Computer control automatic cutting and winding to circles.

Touch screen operating.

Power: AC 220V or AC110V.

Application Widely used in the fiber optic patch cord productive industry.

1,Automatic cutting & rolling

2,Flexible length & speed setting

3,Friendly touch screen interface

4,Easy to handle


SPECIFICATIONS;


Model Number

HW-450M

Type

Fiber Optic Production Machine

Cable Type

Simplex/Duplex Optic Cable

Applied Cable Dia.

¢2.0~12.0mm

Max. Cable Length

999mtr

Cutting Speed

3m/s

Cable Discharge Way

Automatic

Cable Collecting Way

Double Wheel Linkage

Network

Wired LAN

Control Way

Touch Screen

Power

1800 W

Voltage

AC220~240V or AC110V

Frequency

50/60Hz

Weight

125 KGS

Dimensions

1065 x 500 x 1308 mm

Warranty Time

1 YEAR
