Sleeves for Single Fibers 250 Microns to 900 Microns

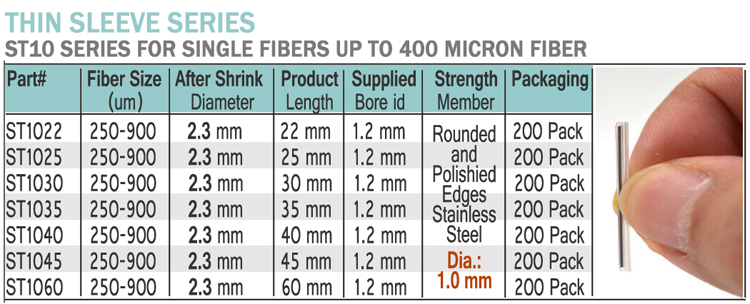

PART#: DESCRIPTION
ST1022 φ1.0 × 22mm Splice Protector Sleeves after Shrink Diameter 2.4mm
ST1025 φ1.0 × 25mm Splice Protector Sleeves after Shrink Diameter 2.4mm
ST1030 φ1.0 × 30mm Splice Protector Sleeves after Shrink Diameter 2.4mm
ST1035 φ1.0 × 35mm Splice Protector Sleeves after Shrink Diameter 2.4mm
ST1040 φ1.0 × 40mm Splice Protector Sleeves after Shrink Diameter 2.4mm
ST1045 φ1.0 × 45mm Splice Protector Sleeves after Shrink Diameter 2.4mm
ST1060 φ1.0 × 60mm Splice Protector Sleeves after Shrink Diameter 2.4mm
Description

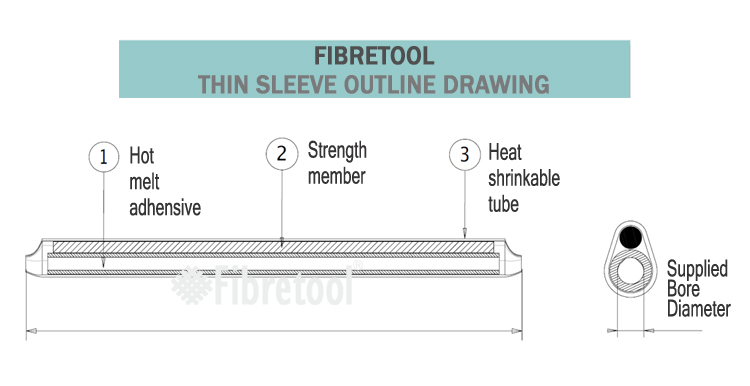

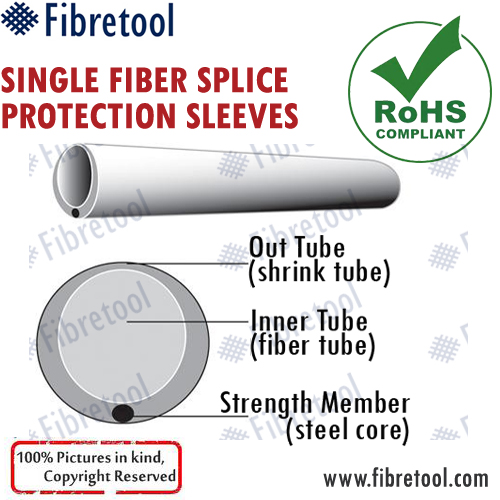

This is the industry's most popular, high quality fusion splice protection sleeve at an economical price. It has a steel strength member, inner fiber tube and outer shrink tube.
We offer a number of high quality splicing sleeve options.
Standard lengths include 60mm, 45mm and 40mm. Sleeves come standard with a clear tube for viewing the color of the fiber itself.
Features:
● RoHS and Reach Compliant
● Clear (transparent) outer Tube
● Inner support steel is made by SUS stainless steel, Polished stainless steel rod
● Varied size, length and color are available for option
● Working temperature : -45 ~ 110 ℃
● Shrinking temperature range: 120 ℃
● Outer tube material is made by polyolefin
● Inner tube material is made by EVA (ethylene-vinyl acetate)
● Custom products available
● Stocked for immediate delivery.
