SC/APC Optical Fiber Field Fast Connector
❤ Add to collection

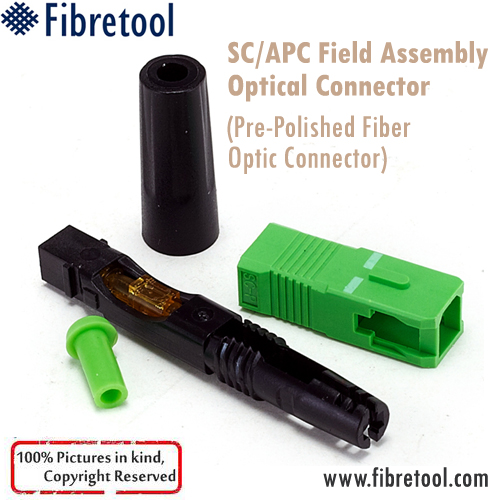

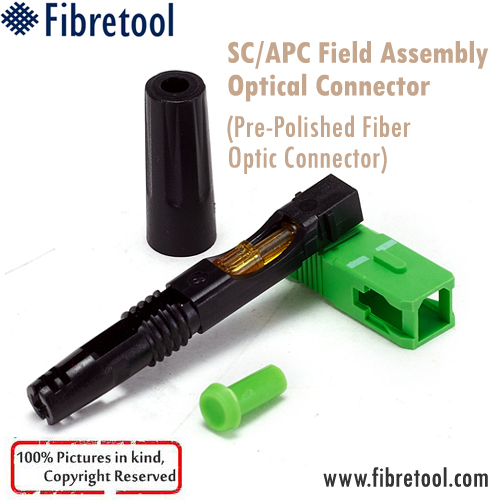

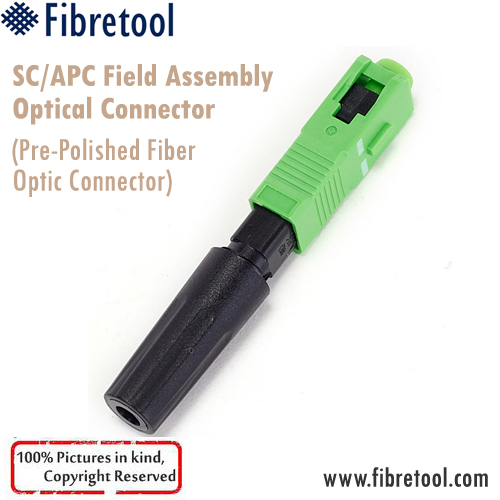

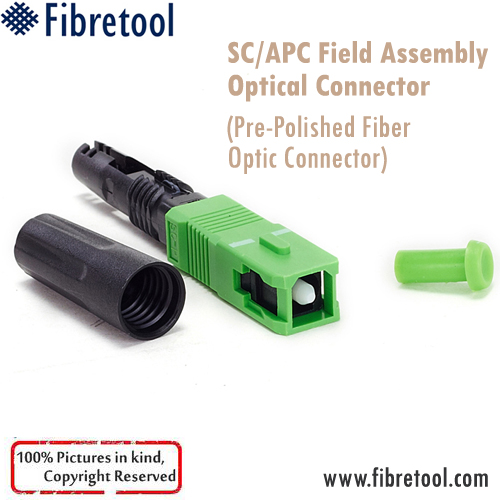

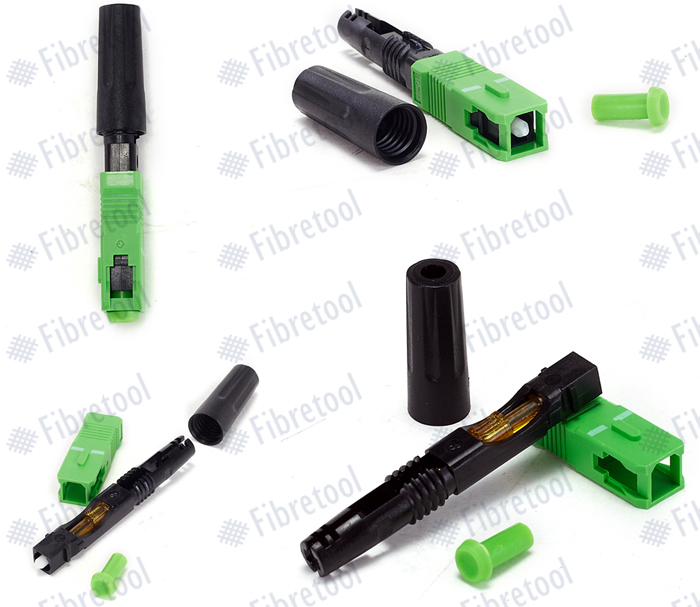

SC/APC Optical Fiber Field Fast Connector

PART#: SC/APC
Features


Standards of IEC, Telcordia
60 seconds installation time
Can be used 10 times
Low insertion loss
Compatible with standard SC connectors;
Field installable, cost effective, user friendly;
UPC, APC polishing optional;
No electricity required;
FTTH cable, fiber optic cable optional;
Reliable durable and superior optical performance.

0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description

PART#: SC/APC
Features


Standards of IEC, Telcordia
60 seconds installation time
Can be used 10 times
Low insertion loss
Compatible with standard SC connectors;
Field installable, cost effective, user friendly;
UPC, APC polishing optional;
No electricity required;
FTTH cable, fiber optic cable optional;
Reliable durable and superior optical performance.


Product Code: FIC-SC/APC
Description


Our SC fast connectors make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Our fast connector can greatly reduce the assembly and set up time. The pre-polished connectors are mainly applied to FTTH cable in FTTH projects, directly in the end user site.


Features


Standards of IEC, Telcordia
60 seconds installation time
Can be used 10 times
Low insertion loss
Compatible with standard SC connectors;
Field installable, cost effective, user friendly;
UPC, APC polishing optional;
No electricity required;
FTTH cable, fiber optic cable optional;
Reliable durable and superior optical performance.

Specifications

Fiber Type

SM/MM

Surface polishing

SC/UPC, SC/APC

Color

Blue, Green

insertion loss

0.3dB

return loss

≥60dB

joint endurance

10Times

Material of shell

ABS

Applications

2.0/3.0 or FTTH patch cord

Fiber Diameter

125um

Tensile Strength

>20N

Lock Strength

0.2dB

Temperature Cycle

0.3dB

Virbration

0.2dB

Temperature

-40℃~+80℃
