PART#: FPM-380
Features
High sensitivity, large dynamic range
Special universal connector interface FC/SC/ST
Quick starting, without warm-up and reducing testing time
Low-voltage display function
Optional auto-shutdown feature
Automatic calibration function
The relative ratio test
Large LCD display and backlight
Description

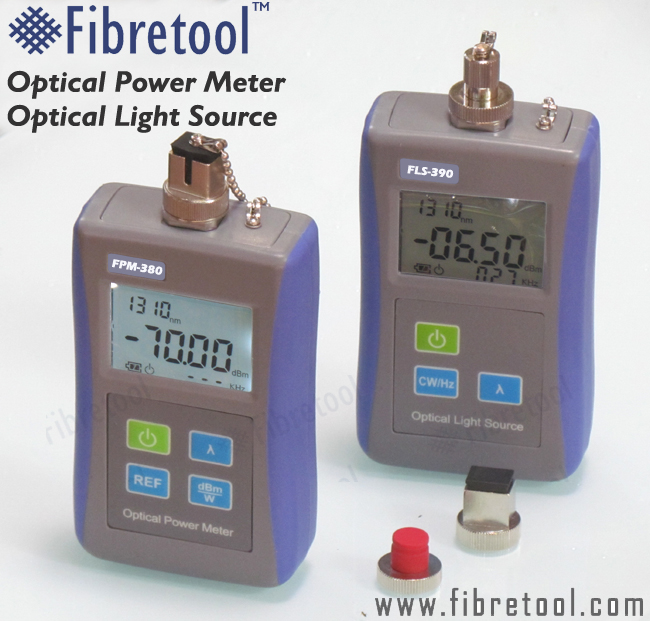

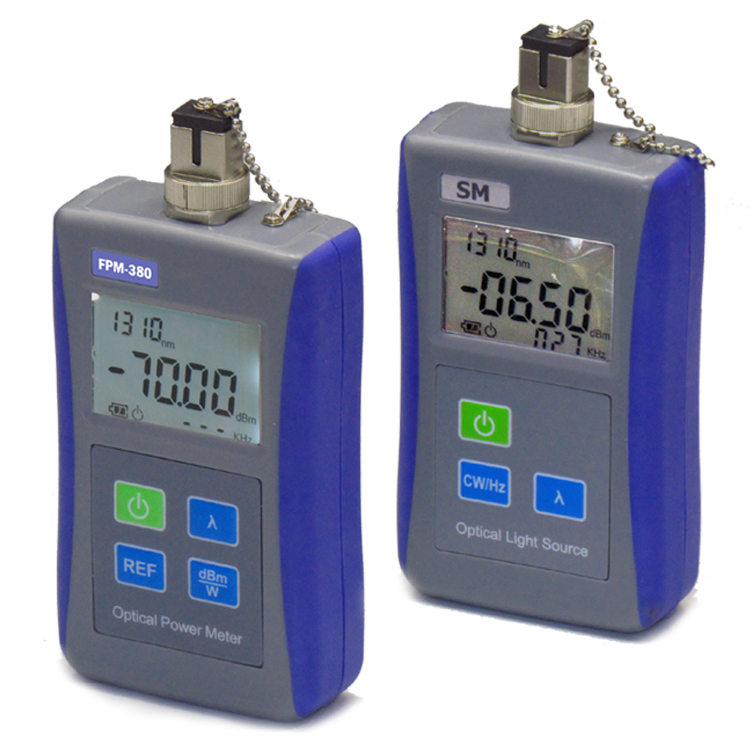

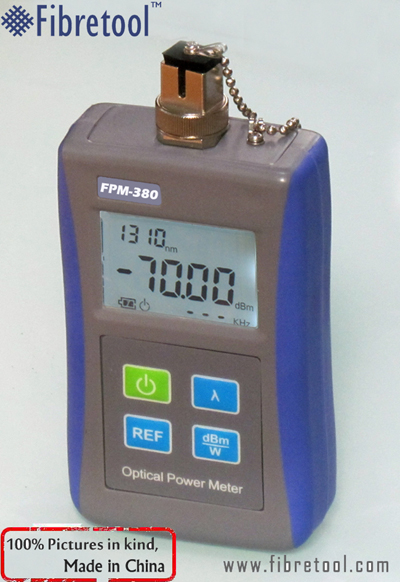

FPM-380 Handheld Optical Power Meter is a self-developed test instrument. For the installation, operation and maintenance of fiber-optic network is designed as a precise, durable, convenient, portable test instrument. Smart appearance with the backlight, auto-shutdown features, the wide range of optical power testing, test the accuracy of precision as well as a common interface design.
Features
High sensitivity, large dynamic range
Special universal connector interface FC/SC/ST
Quick starting, without warm-up and reducing testing time
Low-voltage display function
Optional auto-shutdown feature
Automatic calibration function
The relative ratio test
Large LCD display and backlight
Application
Maintenance Telecom
Maintenance CATV
Test Lab of Fiber Optic
Optical fiber sensors
Specifications
Type | FPM-380A | FPM-380C | |
Wavelength（nm） | 800～1650 | ||
Detector | InGaAs | ||
Optical Connector | FC SC ST/ Universal 2.5mm adaptor (LC、MU can be optional ) | ||
Measurement Range（dBm） | -70～+10 | -50～+26 | |
Uncertainty | ±5% | ||
ibrated Wavelength(nm) | 850、1300、1310、1490、1550、1625 | ||
Resolution(dB) | 0.01 | ||
Power Supply | 3pcs AAA 1.5V batteries | ||
working time(h) | 120 | ||
Operating Temperatrue(℃) | -10～+50 | ||
Storage Temperatrue(℃) | -20～+70 | ||
Automatic shutdown（min） | 10 | ||
Dimension（mm） | 125*65*29mm | ||
Weight（g） | 160g | ||
PART# CASSETTE TYPE
HW-380A Mini Optical Fiber Power Meter with 0.01dB Resolution
HW-380C CATV Mini Optical Fiber Power Meter with 0.01dB Resolution
