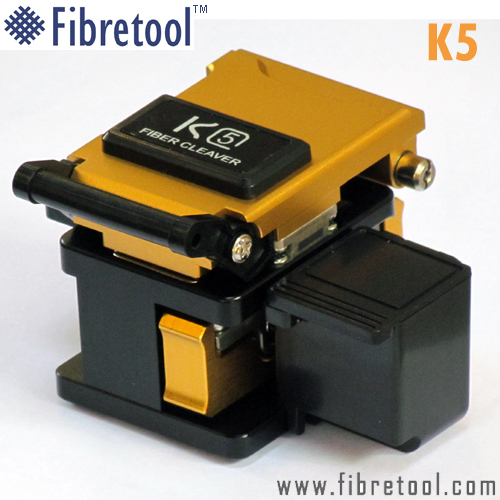

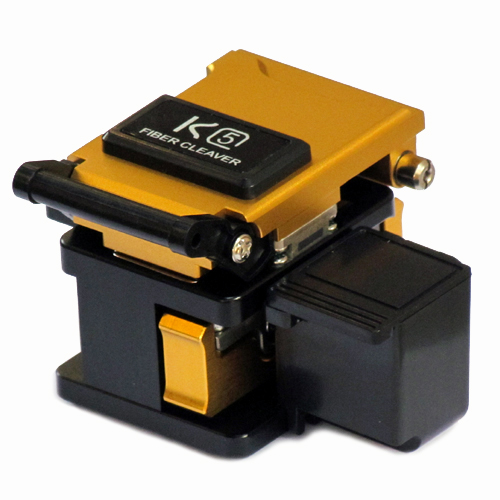

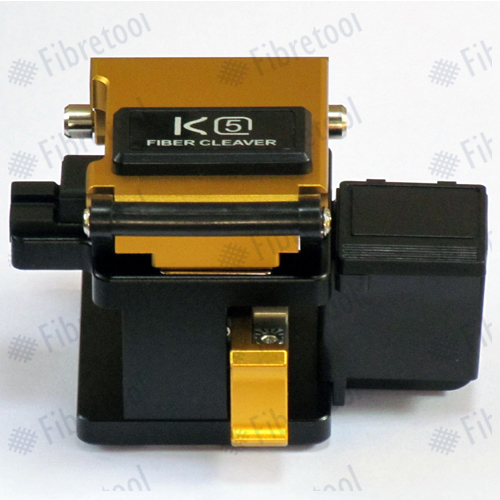

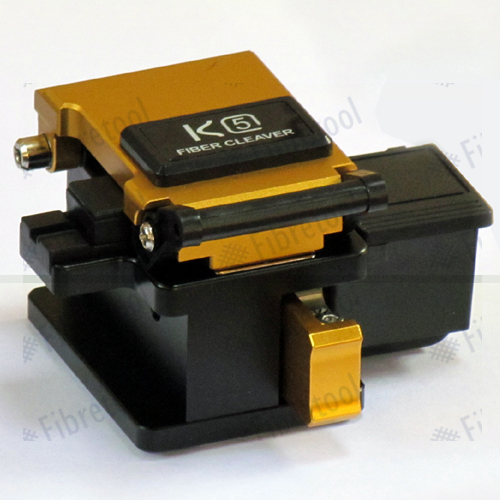

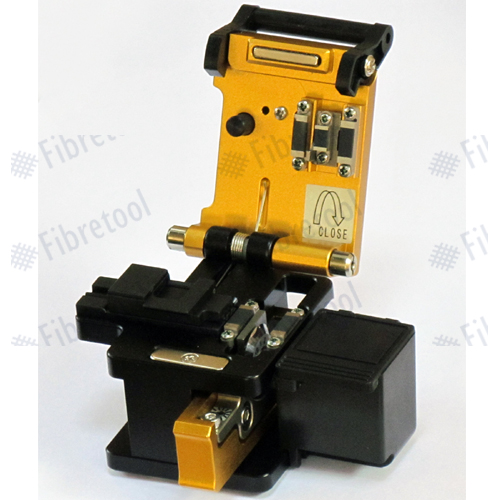

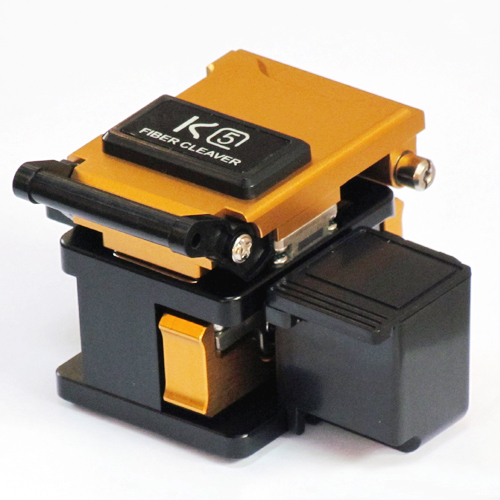

High Precision Single & Ribbon Fiber Cleaver, Compact and Easy-To-Use
PART#: K5
FEATURES AND BENEFITS:
● Compact Ergonomic Design, Light weight and user friendly shape
● Longer life blade (3 height settings х 16 rotating positions = 48,000 cleaves)
● Applicable up to 12-fiber ribbon cleaving
● 24 Position Rotatable and Replicable Blade
● Spare blade part number: FCP-20BL
DESCRIPTION:
K5 High Precision Cleaver is an instrument for high precision fiber cutting.
It can be installed with a variety of holders for ribbon cable up to 12 fibers as well as universal holder which is applicable to 250um, 900um, 3.0mm fiber cable and flat cable. Work efficiency can be maximized with easy and simple 2 step operations.
SPECIFICATION:
Type | Single fiber and ribbon fiber |
Cladding Diameter | 125um |
Cleaved Length | Single fiber: 8~20mm / Ribbon fiber: 10mm |
Applicable Fiber Cable | Single fiber: 250um, 900um, 3.0mm fiber cable and flat cable Ribbon fiber: 2 to 12 ribbon fiber cable |
Typical Cleaved Angle | Less than 0.5 Degrees |
Typical Blade Life Span | Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights) |
Operation Steps | 2 Steps |
Reclaim Function | Blade pushback |
Holder | Single: Universal holder / Ribbon: Replaceable holder |
