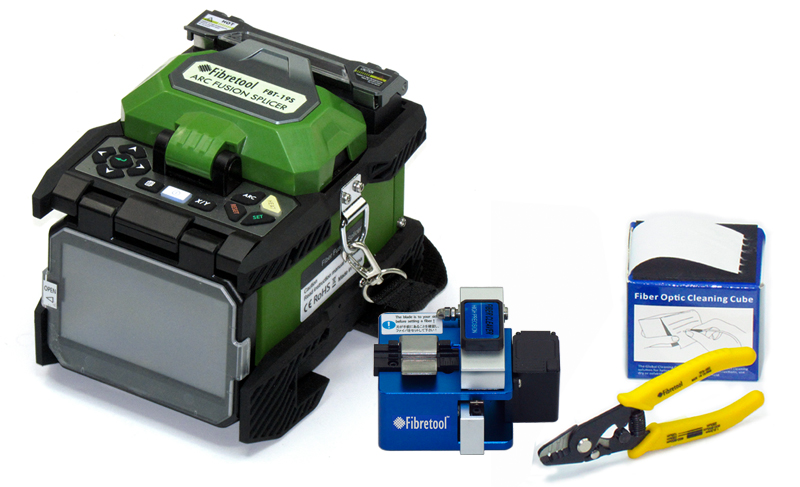

FBT-19S Fibretool ARC Fusion Splicer

PART#: FBT-19S

FEATURES
■ 7s fast splicing, 18s highly efficient heating
■ 320 times image magnification, 5mm fusing for ultra-short cleave length
■ 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage
■ Ceramic presser foot, ceramic V-groove, all-in-one fixture
■ Dual-directional fusing, auto fusing, intelligent heat shrink
■ USB and SD card interface, auto update of U disk
■ Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles
■ GUI (graphical user interface) and touch screen, convenient for operation
■ Dust-resistant, water-resistant, shock-resistant, greater environment adaptability
■ Small size, light weight

0.00
0.00
¥0.00
¥0.00
¥0.00
Weight:0.00KG
Description

PART#: FBT-19S

FEATURES
■ 7s fast splicing, 18s highly efficient heating
■ 320 times image magnification, 5mm fusing for ultra-short cleave length
■ 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage
■ Ceramic presser foot, ceramic V-groove, all-in-one fixture
■ Dual-directional fusing, auto fusing, intelligent heat shrink
■ USB and SD card interface, auto update of U disk
■ Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles
■ GUI (graphical user interface) and touch screen, convenient for operation
■ Dust-resistant, water-resistant, shock-resistant, greater environment adaptability
■ Small size, light weight


PRODUCT OVERVIEW
FBT-19S Optical Fiber Fusion Splicer is small size optical fiber fusions splicer, mainly used for fusion and protection of common communications fibers. The rich functionality and ultra-low splice loss make the splicer adaptive to fiber splicing in various environments. It is featured with small size, light weight, high reliability, greater environmental adaptability, dust-resistant, water-resistant and shock-resistant. Multiple fusion modes and heating modes are available to meet diversified customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional fusion. The monitor is a touch screen delivers fresh designed graphical interfaces, which are simple for operation. The modular pluggable lithium-ion battery of large-capacity ensures long-time field operations. The auto environment compensation system greatly improves adaptability of the splicer to hostile environments, so that low-loss splice can be remained consistent in various environments.

FEATURES
■ 7s fast splicing, 18s highly efficient heating
■ 320 times image magnification, 5mm fusing for ultra-short cleave length
■ 300 groups of splice modes, 100 groups of heating modes, 10000 groups of fusion records /64 images storage
■ Ceramic presser foot, ceramic V-groove, all-in-one fixture
■ Dual-directional fusing, auto fusing, intelligent heat shrink
■ USB and SD card interface, auto update of U disk
■ Built-in modular lithium-ion battery, at least 220 counts of splicing and heating cycles
■ GUI (graphical user interface) and touch screen, convenient for operation
■ Dust-resistant, water-resistant, shock-resistant, greater environment adaptability
■ Small size, light weight

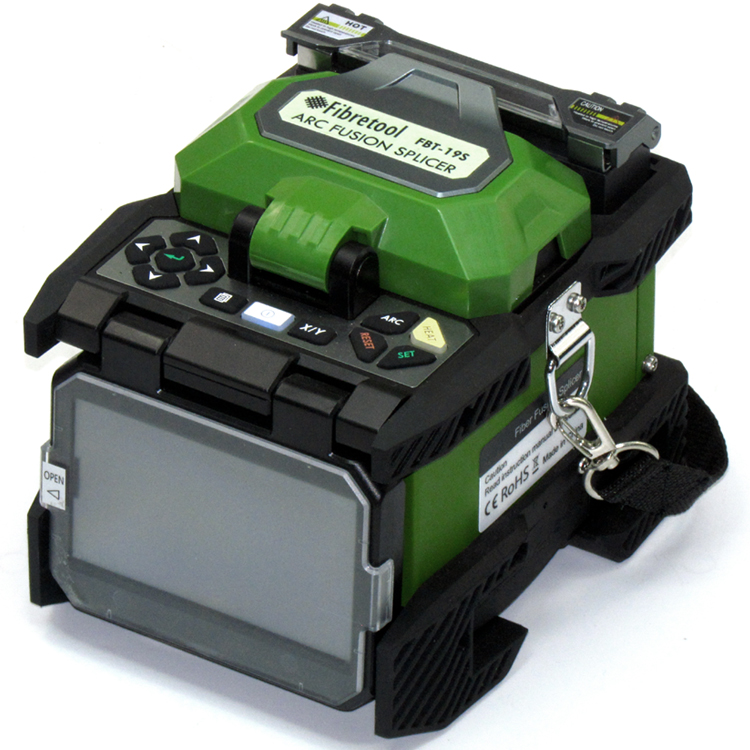

Small and light

Small size and light weight, the splicer is easy to carry and can be lift by one hand.

Water-resistant, dust-resistant, shock-resistant, greater environment adaptability
Meet IP52 requirements.

All-in-one fixer
The all-in-one fixture meet fusion demands of multiple optical fibers, jumpers and rubber-insulted wires with a cladding diameter of 80~150μm.

Graphical interfaces and touch screen
Fibretool FBT-19S uses entirely new GUI and touch screen in design. Operators can set up the splicer and get to know relevant information of it simply and directly by graphical interfaces.

Intelligent heat shrink
A detection unit is embedded in the heater. The heating function will only be enabled when the protection sleeve is put in the heater, to avoid mishandling.

Pluggable lithium-ion battery of large-capacity
The built-in pluggable lithium-ion battery of large capacity can answer working demand lasting all day long (typical 220 counts of splicing and heating cycles).

Ceramic V-groove and ceramic presser foot
Ceramic V-groove with high precision brings you convenient and accurate placement of optical fibers and makes cleanup easy.

Multi-functional Carrying case
The carrying case is novel in design and light in weight, has built-in compact working bench. Open or close the cover can turn it to a working bench.

SPECIFICATIONS
Model FBT-19S
Alignment method
Precise core alignment and cladding alignment
Applicable fibers
Any common optical fibers, rubber-insulated fibers and jumpers that meet    requirements of ITU-TG.651~653, ITU-TG.655 and ITU-TG.657.
Optical fiber diameter
Cladding:80~150μm, coating layer: 0.1~3mm
Cutting length
5~16mm(coated optical fiber diameter≤250μm);10mm(coated optical fiber diameter:0.25~3mm)
Fusion splicing consumption(typical value)
0.02dB(SMF);0.01dB(MMF);0.04dB(DSF);0.04dB(NZDSF)
Return loss
Better than 60dB
Fusion splicing time  (typical value)
7s
Heating time (typical value)
18s
Pulling force test
1.96~2.25N
Thermal shrinkage tube
60mm, 40mm and a series of thermal shrinkage tubes
Graphical display
High-performance 4.3 inch LCD
Magnification time
320 times/88 times
Fusion splicing record
10000 groups
Battery capacity
11.1V,6400mAh,typical value of fusion splicing and thermal cycle is 220   times
Battery service life
Cycle charging times reach 300~500, can be replaced by customers
Electrode service life
Typical value is 4000 times, can be replaced by customers
Construction lighting
Built-in lights with high-brightness and wide lighting area
Working environment
Temp:-10~50℃;hum: 0~95%RH,height above sea level:0~6000m
Operation interfaces
GUI graphical operation interfaces
External power
AC: AC100~240V,60Hz,0~1.5A;DC: DC10~15V
External port
USB / SD
Dimensions
120mm(W)×130mm(H)×154mm(D)(without rubber anti-vibration pad)
Weight
1.59kg(host engine),0.37kg(battery)
