PART#: KF4A
Benefits and Features:
Stripping
No scratches from heated stripping
Stripping time : 1.5sec
Over 5kg/f Tensile Strength of fiber after stripping
Cleaning
One-touch pump
Easy to refill cleaning alcohol
Cleaving
Single-action cleaving
Fiber chip collector attached
Ilsintech Swift Active Cladding Alignment, All-In-One

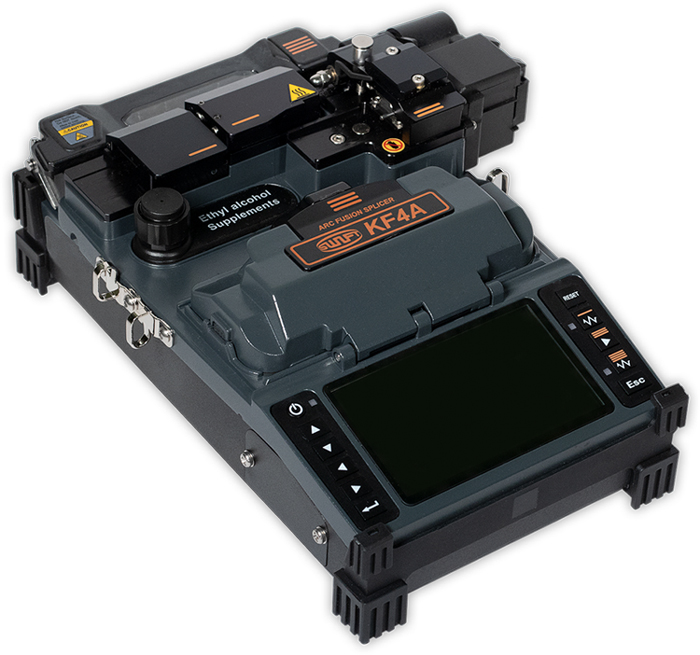

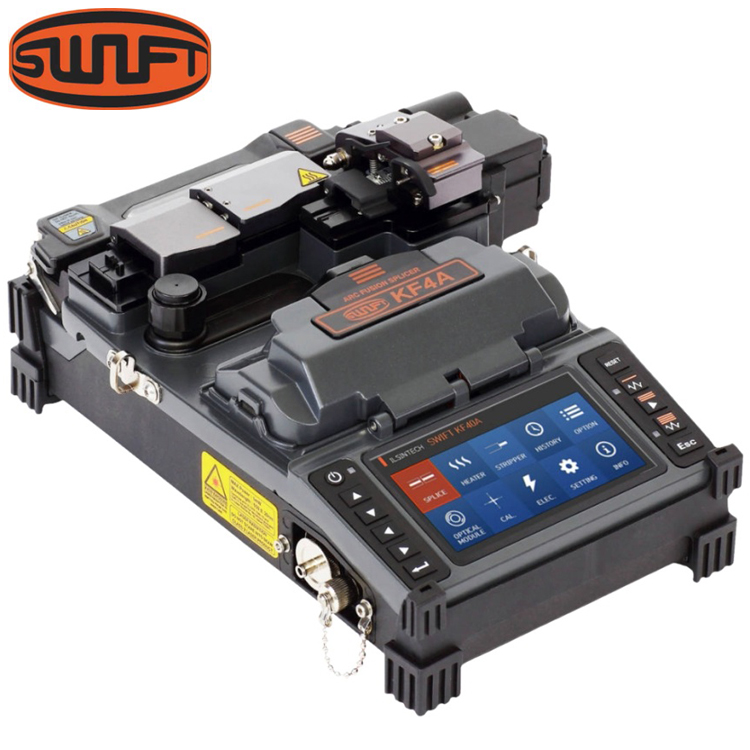

IlSintech KF4A

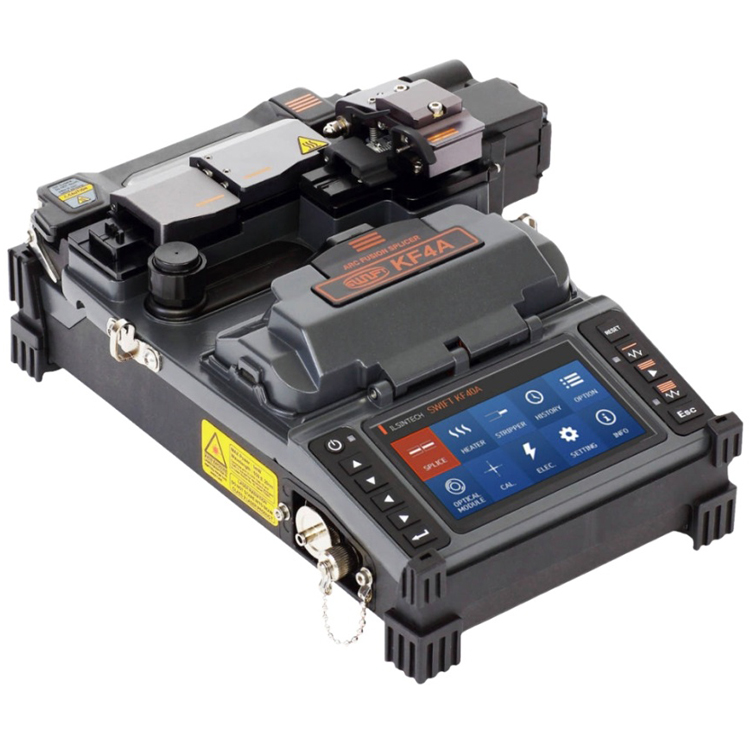

Swift KF4A Active Cladding Alignment, ALLINONE
Swift KF4A is the highly advanced and accurate ACTIVE cladding alignment fusion splicer, which has been designed to perform the major 5 multifunctional features systematically : stripping, cleaning, cleaving, splicing and sleeving.In addition, optional Optical Power Meter and V.F.L(Visual Fault Locator) is imbedded in the machine. They allow users check the splice result immediately without additional tools. (ALLINONE+, KF4A+) The Swift KF4A is best fit for fusion splicing and fusion Splice-On Connector(SOC) of FTTx network applications, which eliminates fatal issues with conventional mechanical connectors.
Benefits and Features:
Stripping
No scratches from heated stripping
Stripping time : 1.5sec
Over 5kg/f Tensile Strength of fiber after stripping
Cleaning
One-touch pump
Easy to refill cleaning alcohol
Cleaving
Single-action cleaving
Fiber chip collector attached
Resistance to Shock, Dust and Water
The splicer with high reliability has stable performance even in a harsh environment. Shock – Free Fall : 76cm from 5 sides / Waterproof : IPx2 / Dustproof : IP5x

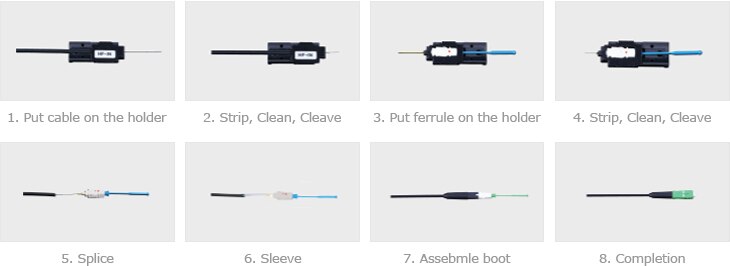

Compatible with Fusion Splice-On Connector(SOC) in accordance with the Industrial Standard

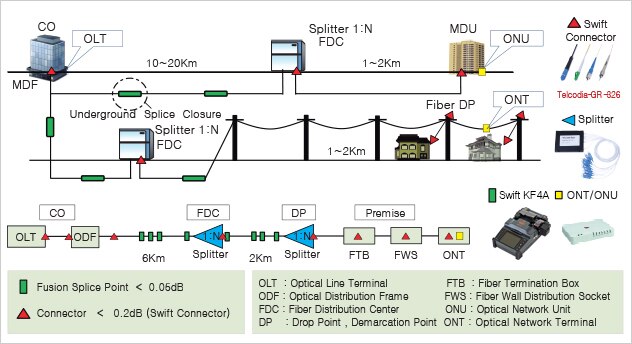

Perfect Solution with Swift KF4A and Swift Connector
Perfect Solution with Swift F1 and Swift Connector

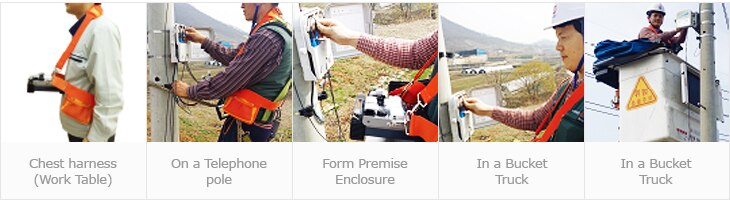

KF4A Work Belt
KF4A Specifications
Category | Description |
Fiber alignment | IPAAS Clad to Clad Alignment |
Applicable type of fibers | 0.25mm, 0.9mm, 2.0mm, 3.0mm Indoor cable |
Fiber count | Single fiber |
Applicable fiber dimensions | Cladding diameter : 125μm, Coating diameter : 150μm~3mm |
Fiber setting and cleaved length | 0.20in to 0.63in |
Splicing modes | Splice mode: 300, Heat mode: 100 |
Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS:0.04dB, NZDS: 0.04dB |
Return loss | > 60dB |
Splicing time | Typical 7sec with SM |
Sleeve heating time | Typical 13sec with IS-60 mode, IS-60 sleeve |
Applicable protection sleeve | 2.4in, 1.5in and micro sleeves |
Storage of splice result | Data : 5,000ea Up to, Image : 5,000ea Up to |
Tension test | 1.96N to 2.25N |
Operating condition | Altitude: 0~5,000m above sea level, Temperature: -14°F~122°F, Humidity: 0~95%, Wind: 15m/s, non-condensing, dust proof, water proof, shock proof |
Storage condition | Temperature: 40°F~176°F, Humidity: 0~95% |
Dimension | 132(W) x 212(L) x 73(H)mm (Without rubber protector) |
Weight | 1.5kg(Including battery) |
Viewing method and display | 2 AXIS Two CMOS cameras with 4.3-inch color LCD monito |
Fiber view and magnification | X/Y : 110X , Max :220X |
Power supply | Li-ion Battery(DC 14.8V, 3400mAh), 100 ~ 240V AC Charger |
No. of splice cycles with battery | Typical 200 cycles |
Electrode life | 21,000 splices |
Blade Life | 75,000 |
Terminals | USB |
STANDARD PACKAGE
Category | Model | Q’ty |
Arc Fusion Splicer | SWIFT KF4A | 1 |
Battery | KF-3400 | 1 |
Battery Adapter | FY1701000 | 1 |
Instructions for use | – | 1 pair |
Spare electrode | EI-24 | 1 pair |
Transporting Case | HC-11(Hard Case) | 1 |
Optical fiber holder | – | 1 Pair |
Cooling Tray | CT-01(1.5in) | 1 |
Allen wrench | LD-3300 | 1 |
USB Cable | – | 1 |
Hard Brush |
| 1 |
Soft Brush |
| 1 |
Tool Box |
| 1 |
Tweezer |
| 1 |
