2-Channel Mandrel Free IL/RL Test Station
❤ Add to collection

2-Channel Mandrel Free IL/RL Test Station

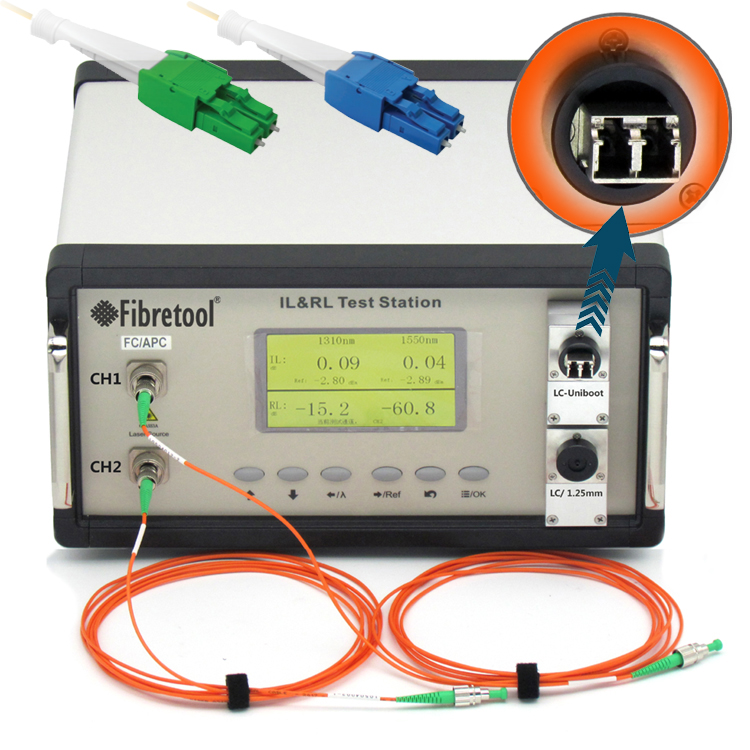

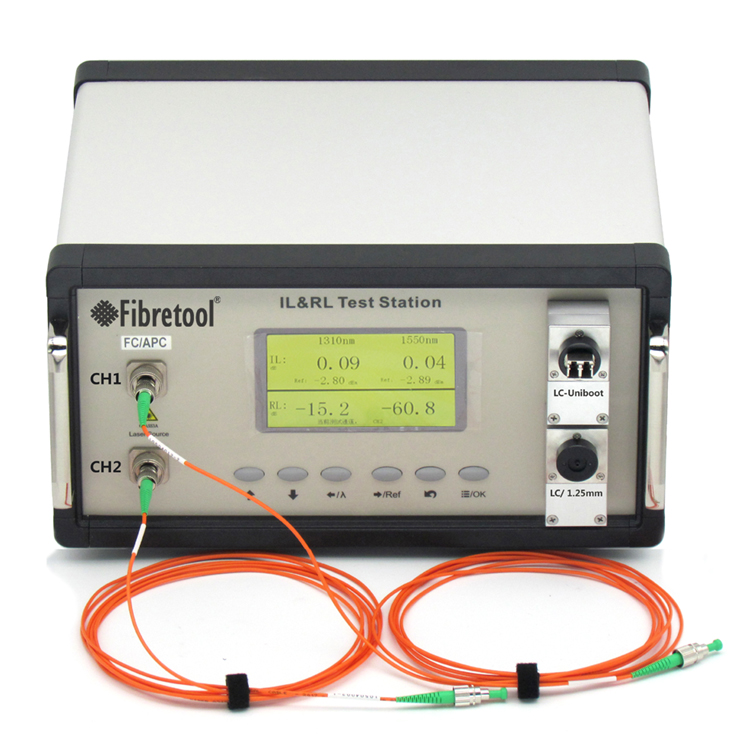

Duplex Double Test NON-Mander Insertion and Return Loss Test Station

PART#: FBT-MFIRL400-2CH-SM, 1310/1550nm
              FBT-MFIRL400-2CH-MM, 850/1300nm


FEATURES;

● This test station is designed specially for different connector on both sides patch cord(such as FC-SC, FC-LC, SC-LC…) and the duplex patch cord.The REF for insertion and return loss can set one time for those kind of patch cord, no need to change standard patch cord and interchange testing port connector on tester( Especially 2.5mm and 1.25mm interchange). For the tested patch cord, APC end no need to manually set standard patch cord length if PC end measured shortest length is 2.2M.

● One key setting insertion and return loss REF value, is much more convenience for operators and easy training. This device can directly do the label report setting and real time data printing.


0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description

Duplex Double Test NON-Mander Insertion and Return Loss Test Station

PART#: FBT-MFIRL400-2CH-SM, 1310/1550nm
              FBT-MFIRL400-2CH-MM, 850/1300nm


FEATURES;

● This test station is designed specially for different connector on both sides patch cord(such as FC-SC, FC-LC, SC-LC…) and the duplex patch cord.The REF for insertion and return loss can set one time for those kind of patch cord, no need to change standard patch cord and interchange testing port connector on tester( Especially 2.5mm and 1.25mm interchange). For the tested patch cord, APC end no need to manually set standard patch cord length if PC end measured shortest length is 2.2M.

● One key setting insertion and return loss REF value, is much more convenience for operators and easy training. This device can directly do the label report setting and real time data printing.



SPECIFICATIONS:

Model

FBT-MFIRL400-2CH-SM/ MM

Return Loss Measurement

Wavelength

1310/1550nm1490/1625nm or 850/1300nm on requirement

Measurement Range

0~ 75 dB

Calibration Wavelength

1310/1550nm,1490/1625 or 850/1300nm

Measurement Linearity

±2dB

Mandrel-free minimum distance

1.5 meters (APC end)

2.2 meters (UPC end)

Laser Source Module

Wavelength

1310/1550nm, 1490/1625nm or 850/1300nm

Output Power

≥-3dBm

Output Stability

±0.005dB (one hour @ 25)

Connector type

FC/APC

Insertion Loss measurement

Wavelength

1310/1550nm,1490/1625nm or 850/1300nm

Measurement Range

0~ -40dBm

Linearity

±0.03dB

Displaying Resolution

Log0.01dBLinear0.001nw/µW/mW

Connector Type

FC/φ2.5mm universal;φ1.25mm universal, Bare fiber adaptorsupport HP8100BA adaptor.

General Specification

Communication Port

USB

Power Supply

AC 170-260V AC 50Hz

Operation Temperature

-10+40

Packing Size

275X310X170mm

Weight

5.8kg
