Automatic Analysis on Smartphone + Wi-Fi /USB Dual-use Digital Probe
PART#: WIS 300
KEY FEATURES
• Wi-Fi/USB Dual-use Digital Probe
• USB digital support in Windows/Linus/Mac
• Easily pairs to Windows™, Android™ & iOS devices
• Automated PASS/ FAIL capable of detecting defects < 1 μm in diameter
• Single-way focus in 1-3s
• 400× magnification, 98% accuracy and consistency.
• One-click image capture button to save time
• Report creation results can be saved on PC and mobile devices in jpg/pdf/excel format
• Built-in lithium rechargeable battery for 5 hours
• Quick-change adapter tips(40+) for all connector styles
• LED button for light source control
WIS 300

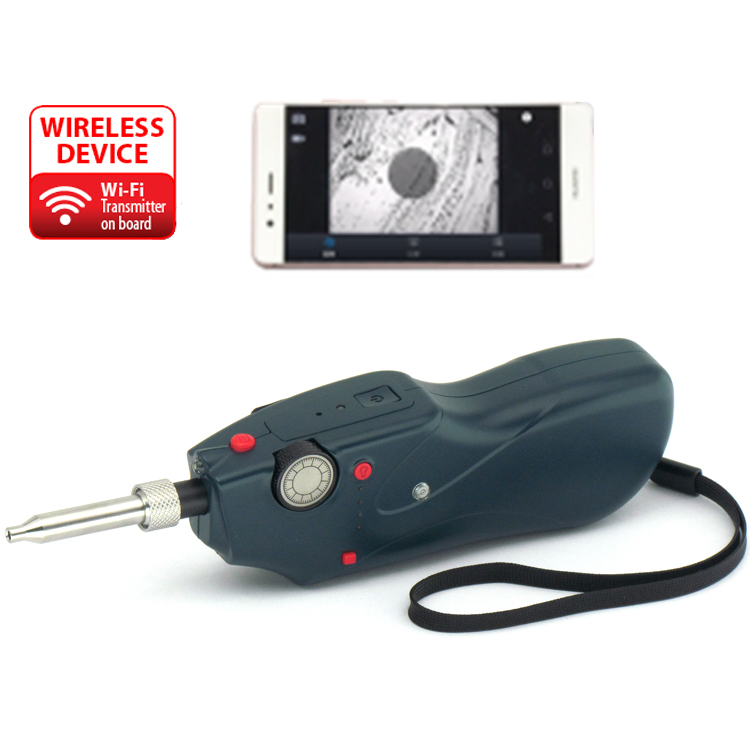

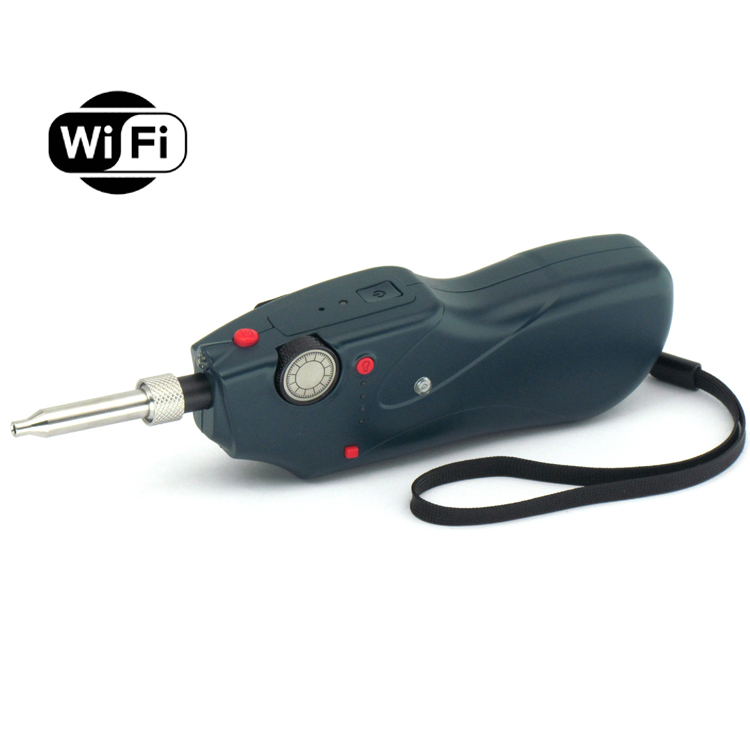

Wireless Fiber Inspection Scope
Automatic Analysis on Smartphone + Wi-Fi /USB Dual-use Digital Probe

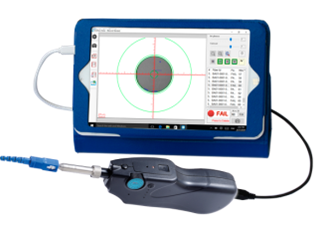

WIS 300 wireless fiber inspection scope is a WIFI/USB dual-use portable digital fiber inspector. With automated
PASS/FAIL and fast images focus functionality, and easy pairing to Android™ and Apple© iOS devices, It can
quickly check various patch cords and transceivers, display the fiber end face in PC/laptop/ OTDR/Smartphone
etc..digital devices with the USB cable or WiFi connection.
Under WiFi mode, it can automatically get the image checked and analyzed. Test results can do the pass/fail
judges with IEC/IPC criteria. Fiber images and results can be saved on PC and mobile devices in jpg/pdf/excel
format for file records. It’s super light and handy to take anywhere anytime for field tests, operation inspections,
and lab research.
KEY FEATURES
• Wi-Fi/USB Dual-use Digital Probe
• USB digital support in Windows/Linus/Mac
• Easily pairs to Windows™, Android™ & iOS devices
• Automated PASS/ FAIL capable of detecting defects < 1 μm in diameter
• Single-way focus in 1-3s
• 400× magnification, 98% accuracy and consistency.
• One-click image capture button to save time
• Report creation results can be saved on PC and mobile devices in jpg/pdf/excel format
• Built-in lithium rechargeable battery for 5 hours
• Quick-change adapter tips(40+) for all connector styles
• LED button for light source control
CONFIGURATION
Model | Description | QTY |
WIS 300 | Wireless Fiber Inspection Scope | 1 PCS |
Tips | SC-PC-F/M, FC-PC-F/M, LC-PC-F/M | 1 EACH |
USB Cable | USB to Micro USB cable, For charging or data translate | 1 PCS |
Soft case | Hold all devices and kits | 1 PCS |
USB AC adapter (optional) | 5V 1A Charge | 1 PCS |
