VFL-10 Mini Visual Laser Source
❤ Add to collection

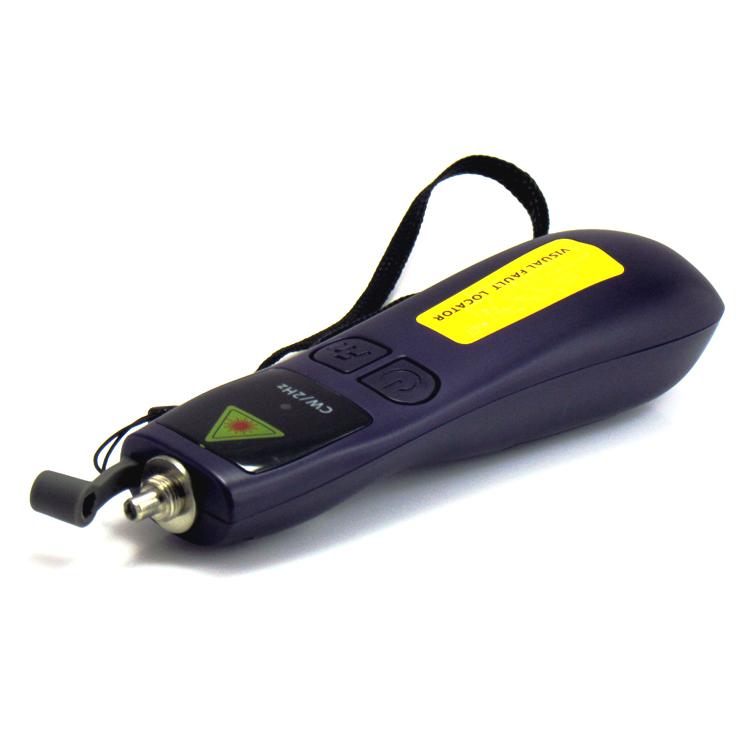

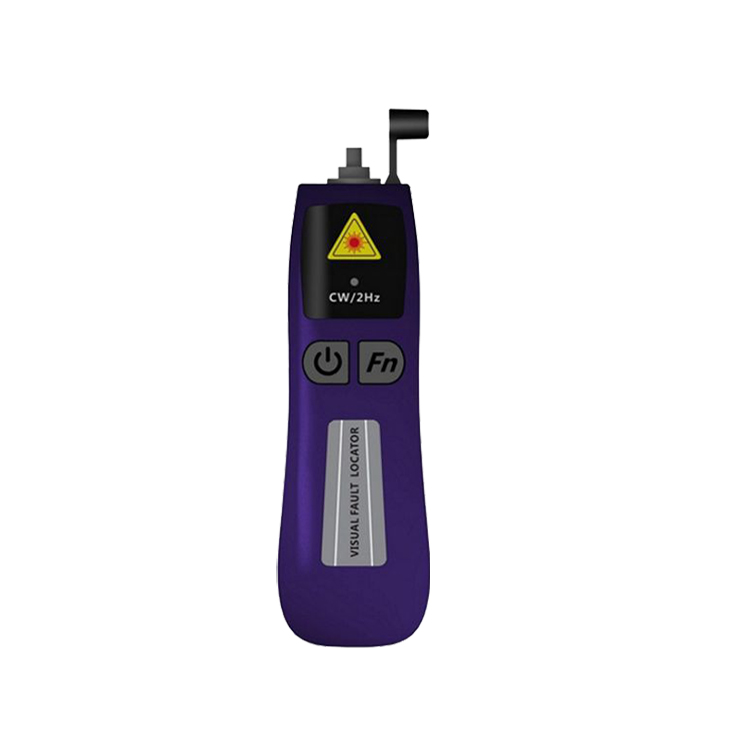

VFL-10 Mini Visual Laser Source

- Quickly and easily locate damages in optical fiber
- Operates either in CW or Pulsed
- 2.5mm Universal connector (1.25mm adapter available)
- High powered laser (1mW) for single-mode(>7km) and multi-mode(>5km) connectors
- Soft-sided carrying case with belt loop
- Compact, ergonomic design for ultimate portability
- Protective rubber end cap
￥0.00
0.00
￥0.00
￥0.00
Weight：0.00KG
Description
- Quickly and easily locate damages in optical fiber
- Operates either in CW or Pulsed
- 2.5mm Universal connector (1.25mm adapter available)
- High powered laser (1mW) for single-mode(>7km) and multi-mode(>5km) connectors
- Soft-sided carrying case with belt loop
- Compact, ergonomic design for ultimate portability
- Protective rubber end cap
Specifications:

Type

VFL-10S; VFL-10M; VFL-10L; VFL-10T

Wavelength

650 nm

Emitter type

laser

Output power

1.0mW; 10mW; 20mw; 30mW.max.

Distance range

>7 km(single-mode)



>5km(multi-mode)

Operation mode

Pulsed and CW

Laser Safety Class

2

Connector Type

universal 2.5mm adapter



Optional 1.25mm adapter

Controls

on/off, continuous/flashing

Power supply

2 AAA alkaline batteries

Battery life

>30 hours in continuous mode

Dimensions(H X W X D)

136mm x 34mm x 20mm

Weight(with batteries)

63g


Ordering Information:

VFL-10S   650nm, 10mW output power Mini Visual Laser Source

VFL-10L    650nm, 20mW output power Mini Visual Laser Source
VFL-10T    650nm, 30mW output power Mini Visual Laser Source
