FEATURES;
● Detects the Presence and Direction of Light
● Operates by Creating a Macro-Bend in the Fiber
● Easy-to-use with “ONE KEY” operation.
● Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning.
● Displays the relative core power
● Interchangeable Heads: 3mm, 250µm/Ribbon, 900µm buffered fiber
● More accurate test with Sunshade
● Durable metal housing and quality construction
● Lower power indication
● Includes 9V Alkaline Battery and Carry Case
● Lower power indication.
OVERVIEW;

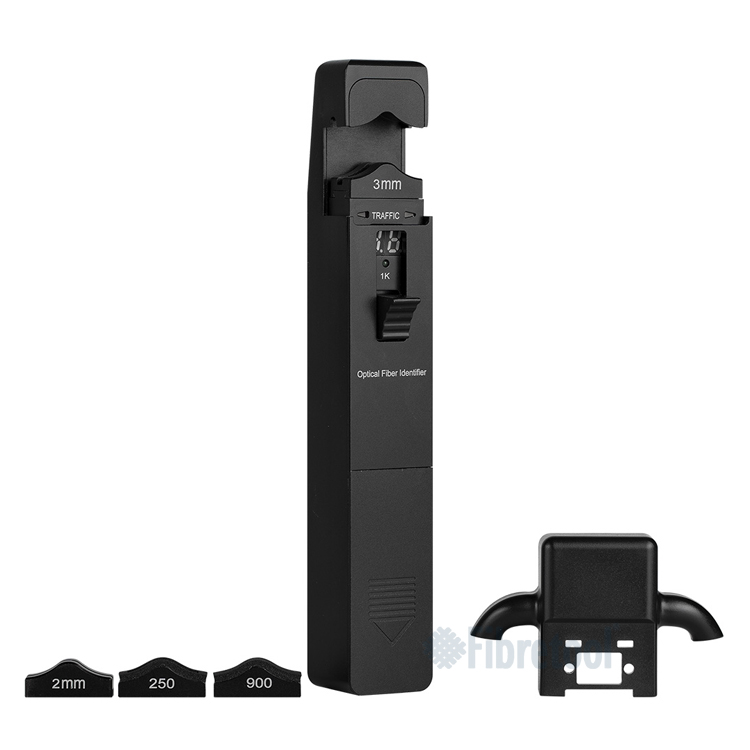

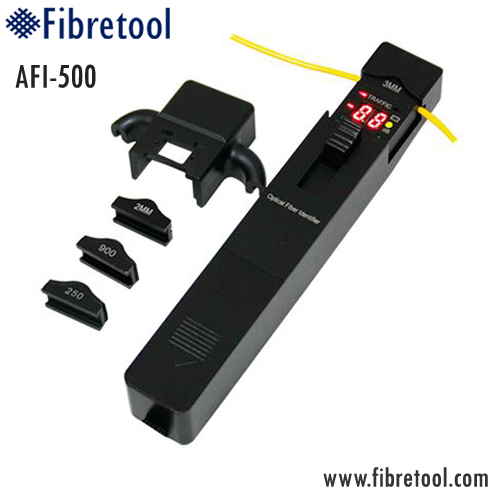

AFI-500 Optical Fiber Identifier can quickly identify the direction of transmitted fiber and display the relative core power without any damages to the bended fiber. When the traffice is present,the intermittently audible tone is activated. It's also recogize the modnulation like,270Hz,1kHz and 2kHz. When they are used to detect the frequency, the continuously audible tone is activated. There are four adapter heads available: Ø0.25, Ø0.9, Ø2.0 and Ø3.0.
STANDARD PACKAGES;
MODEL | INCLUDES |
AFI-500 | AFI-500 Optical Fiber Identifier, 4pcs adapter heads, Sunshade, Alkaline battery, User Manual, Cotton Stick and Soft Carrying case. |
SPECIFICATIONS;
Type | AFI-500 | |
Identified Wavelength Range | 800-1700 nm | |
Identified Signal Type | CW, 270Hz±5%,1kHz±5%,2kHz±5% | |
Detector Type | Ø0.25 (Applicable for Bare Fiber),Ø0.9 Cable ) | |
Ø2.0 Cable ), Ø3.0 Cable ) | ||
Signal Direction | Left & Right LED | |
Singe Direction Test Range (dBm, CW/0.9mm bare fiber) | -46~10(1310nm) | |
-50~10(1550nm) | ||
Signal Power Test Range (dBm, CW/0.9mm bare fiber) | -50~+10 | |
Signal Frequency Display (Hz) | 270, 1k, 2k | |
Frequency Test Range (dBm, Average Value) | Ø2.0, | -30~0 (270Hz,1KHz) |
-25~0 (2KHz) | ||
Ø0.25 | -25~0 (1KHz,2KHz) | |
-20~0 (2KHz) | ||
Insertion Loss(dB, Typical Value) | 0.8 (1310nm) | |
2.5 (1550nm) | ||
Alkaline Battry(V) | 9 | |
Operating Temperature(℃) | -10-+60 | |
Storage Temperature(℃) | -25-+70 | |
Dimension (mm) | 196X30.5X27 | |
Weight (g) | 200 |
