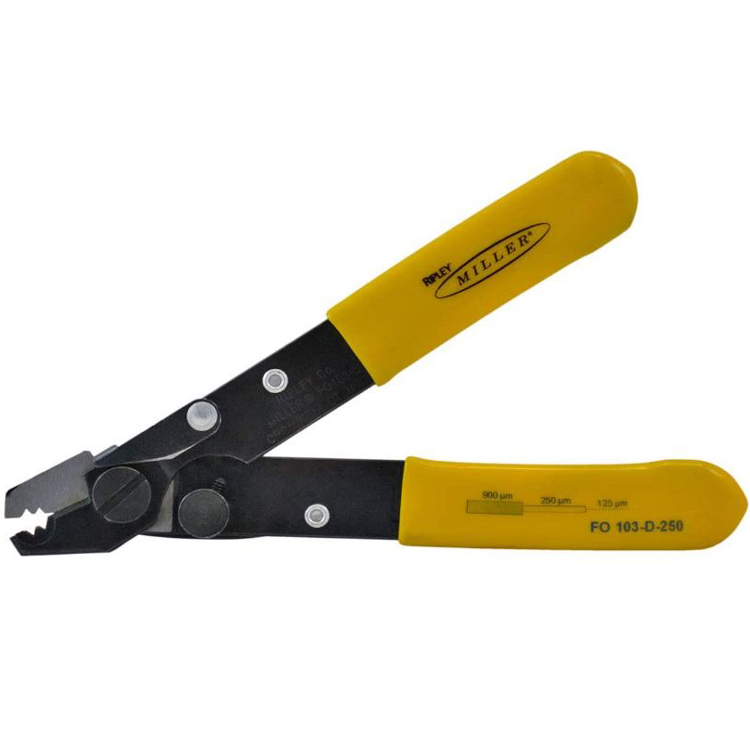

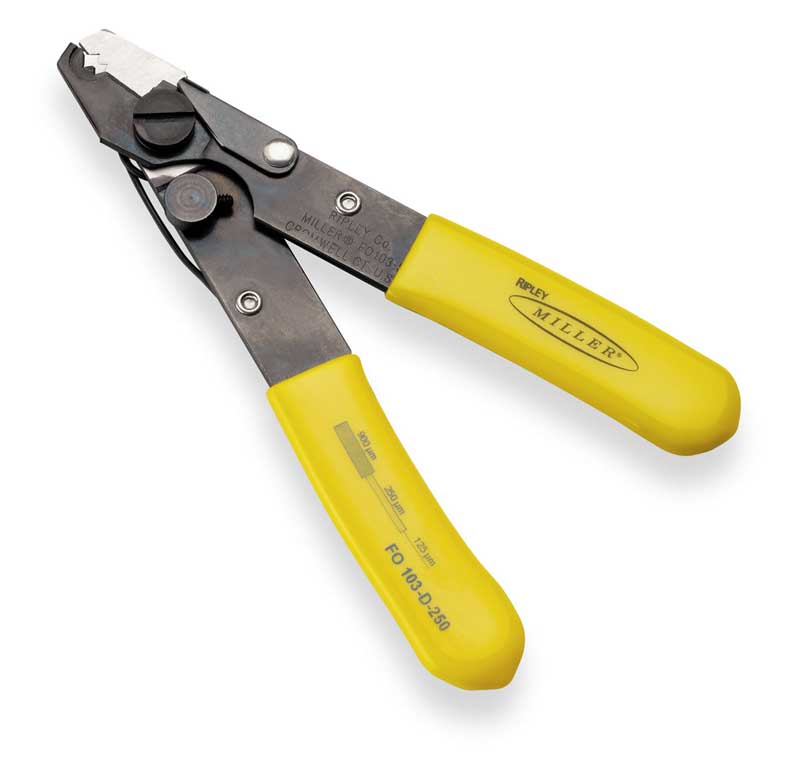

PART#: FO103-D-250
FEATURES;
● Dual hole models offer the same quality as our standard FO 103-S fiber tool coupled with a second hole
● FO 103-D-250: Second hole for stripping 900 micron tight buffer down to 250 micron buffer coating and standard 125 micron fiber stripping (250 micron removal to 125 micron) – allows longer stripping lengths without damaging the fiber
● Easy-to-read stripping diagrams imprinted on handles
● Made in the U.S.A.
● Length: 5.375 in. (137 mm)
● Weight: 2.5 oz (71 g)
● FO 103-D-250 Part No.: 80675
OVERVIEW;
● Two hole design efficiently strips away the 1.6 to 3 mm jacket or 900 micron tight buffer & 250 micron buffer coating from the 125 micron bare fiber in one compact tool that is factory-set & does not require any adjustment
● Manufactured to precise tolerances, its diameter holes & V-openings in blade allow for accurate & clean stripping without scratching or nicking the bare fiber
● Pivot pin, spring & precision handles with printed stripping reference enhance the functionality & durability of the tool.
