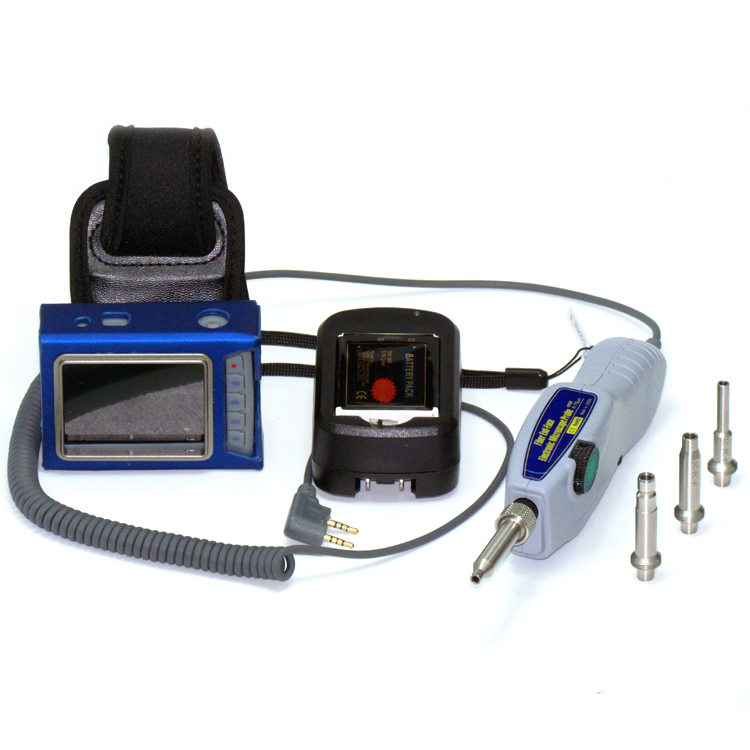

Portable Optical Fiber Inspection Microscope
PART#: HW-700V
FEATURES;
● 2.7 inch handheld DM27 monitor;Brightness and contrast adjustment
● Quick navigation, get image within 3-5 seconds; Two-way focus control
● 95% Image centralization, Clear image, no interface, no flash

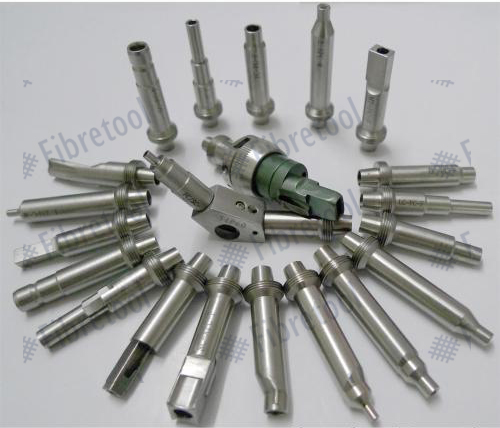

● 27 types of adapters tips available to inspect different connectors and angle-mounted connectors with limited access space
● Precise resolution (<1 um), no shadow or vignetting in screen
● Reliable output signal, no default under repeated operation
● Various monitors can be chosen with specific display capability
SPECIFICATIONS;
Component | Arguments | Value | |
HW-700V Probe | Magnification/Resolution | 400× / 0.75μm (Based on 8 Inch monitor) | |
Focus way / Range | One-way / <3mm | ||
View of Field(mm) | 0.3011*0.2273 | ||
Tips Connection | Cone contact | ||
Light Source/ Life time | Coaxial blue LED / 100,000 hrs above | ||
Size/Weight | 180*41*36mm/ 0.50kg | ||
Storage Temperature | -20℃-50℃ | ||
Humidity | Maximum to 90% relative humidity, no condenses | ||
2.7 Inch Display | Image | Image size(mm) | 22 |
Pixel | 307200 | ||
Video | Frame rate | 25FPS | |
2.7 Inch Display | 640x480 Pix | ||
Video Output Mode | NTSC/PAL | ||
Output file format | AVI | ||
Internal Memory | Memory Card | TF | |
Capacity | 8GB | ||
USB | USB1.1/2.0 | ||
Disk Format | FAT32 | ||
Power Supply | Adapter | DC 5V 600mA | |
Battery Volume | Lithium 1800mAh | ||
Continued Working Hours | 2h | ||
Size/Weight | 78*22*56mm 0.085kg | ||
FFA Version Data Analyze Software | Verification of Fiber end face quality, pass or fail judgment based on standard international criterion or setting by user. PDF or Excel Report file generated to have scratch, spot etc defects measured and counted around the fiber end face. Analyze Support in image, video and real-time inspection. | ||
STANDARD PACKAGE;
Item | Quantity（pcs） | |
Standard Configuration | HW-700V Probe | 1 |
2.7 Inch Display | 1 | |
Standard tips: SC-PC-F,FC-PC-F,LC-PC-F,2.5PC-M | 1 respectively each type | |
12V Power Cord | 1 | |
Earphone Wire | 1 | |
USB Wire | 1 | |
Video Wire | 1 | |
TF Card &Reader | 1 | |
Li-ion Battery | 2 | |
Straps &Display cover | 1 | |
Case | 1 | |
Optional Configuration | FFA Version Data Analyze Software | |
