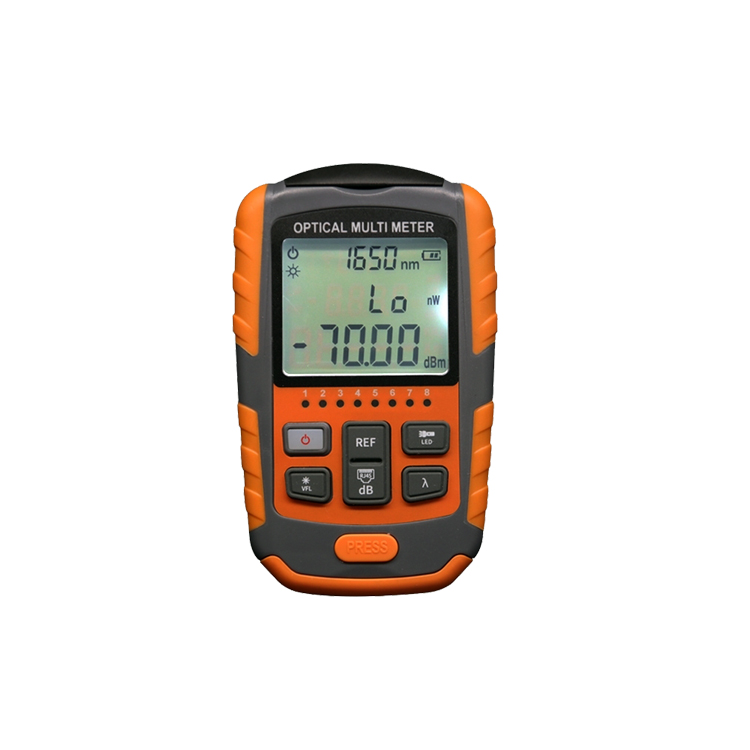

PART#: MT-400

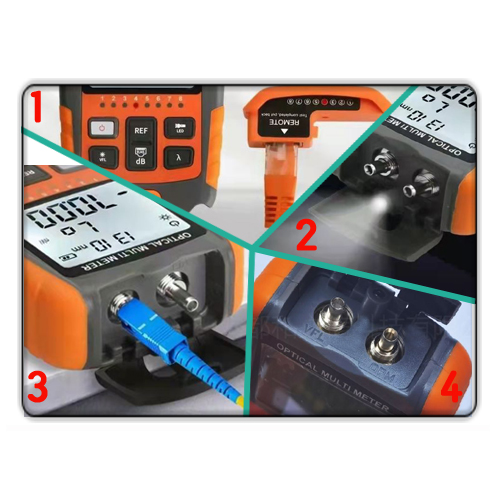

4-in-1 Multi Functions Instruments OPM Optical Power Meter + VFL Visual Fault Locator + RJ11/RJ45 Cable Testing + LED Flashlight. 10mW Output, Self Calibration, Rechargeable Li-ion Battery, 500 Data Storage.
FEATURES;
● Large LCD display with backlight function
● The funation of both optical power meter and VFL
● 3xAAA batteries or AC adapter power supply
● Compact size, Portable and rugged, Easy to use
● Optional Interchangeable Universal 2.5&1.25mm adaptor

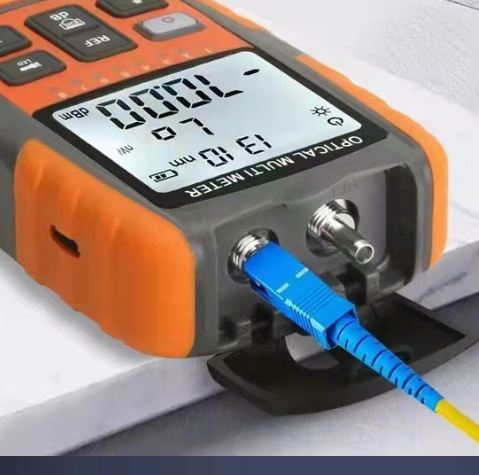

Function 1 FIBER OPTICAL POWER METER
· Wide range of power measurement from 850nm to 1625nm
· Power measurements in dBm,mW and uM
· Supports 2.5mm universal connectors (for ST/SC/FC)
Function 2 VISUAL FAULT LOCATOR
· Easy to locate the breakpoint and bad connections in fiber optic cables
· Supports 2.5mm universal connectors (for ST/SC/FC)
· Both continuous and flashing modes available

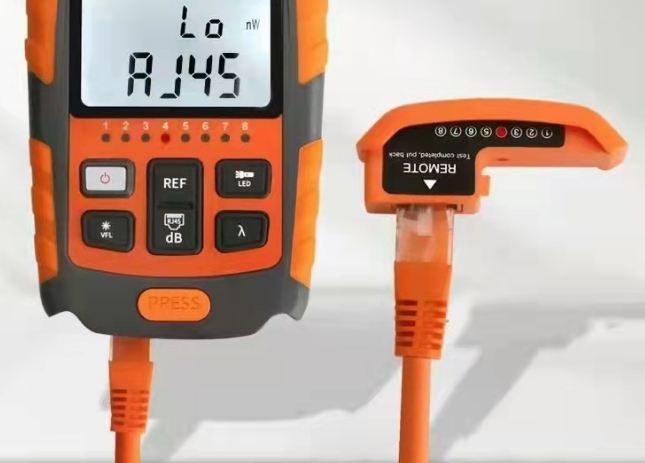

Function 3 CABLE TESTER
· Pin to pin cable map indicator (1~8 LEDs)
· Tests two types of connectors (RJ-11&RJ-45)
· The maximum length measurement: 600M
Function 4 LED FLASHLIGHT
· Convenient for working in a dark environment
Optical Power Meter | Detector Type | InGaAs |
Optical Connector | ST/SC/FC & 2.5mm Universal | |
Calibrated Wavelengths | 850、1300、1310、1490、1550、1625 nm | |
Measurement Range | +6 ~ -70 dBm | |
Accuracy | ± 0.2 dB | |
Power Measurement Linearity | ±0.1 dB | |
Display Resolution | ±0.01 dB | |
Power Display Units | dBm、mW、μW | |
Visual Fault Locator | Output power | <1mW |
Range | 3~5 kM @SM | |
Connector | ST/SC/FC & 2.5mm Universal | |
Laser safety rating | Class 2 | |
Wavelength | 650nm±20nm | |
Output modes | Continuous (CW) 、2 Hz pulsed | |
Reverse battery protection | Yes | |
Lan Cable Tester | Connector | RJ45 & RJ11 shared |
Cable | UTP LAN cable(8P8C)、Telecom cable(6P2C/6P4C/6P6C) | |
Measuring length Max. | 600 meter | |
Automatic Power Off | 10 min.(Can be cancelled) | |
Low Battery Warning | Low battery energy | |
Battery Life | > 160 houre (only OPM) | |
Power source | AA/LR6 1.5V×2 pcs | |
Size | 105×52×34 mm |
