PART#: PFM-318

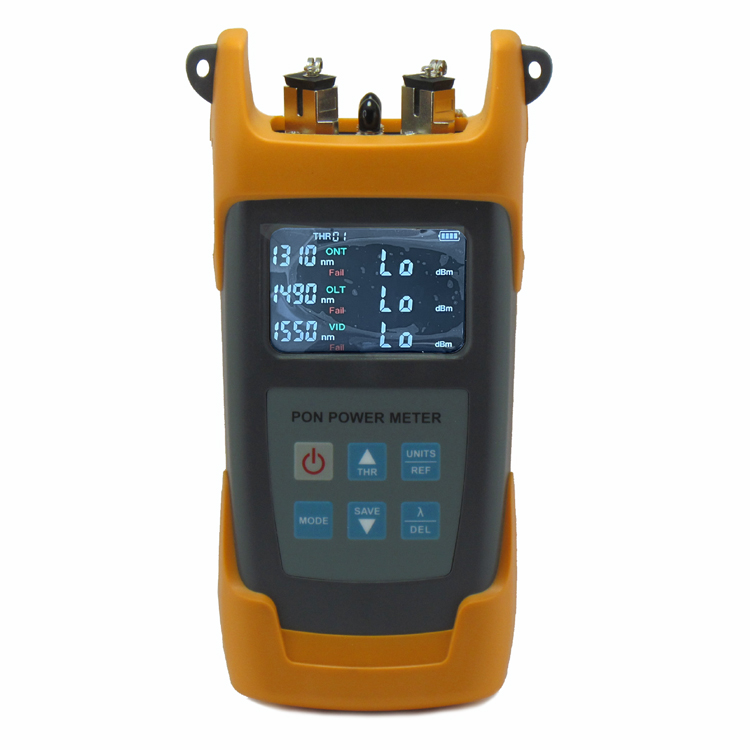

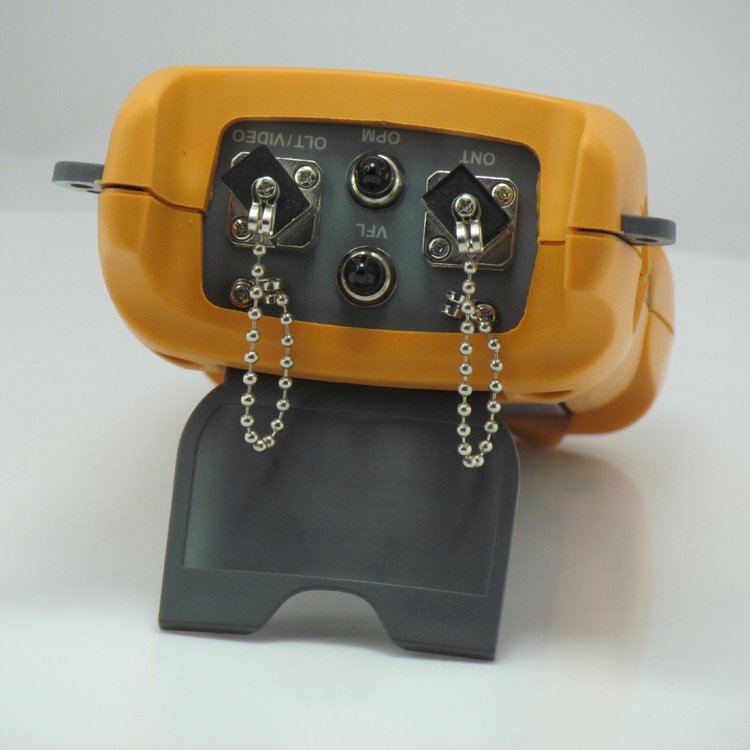

PFM-318 PON Optical Power Meter target at the FTTx application and maintenance.
This power meter is able to simultaneously test and estimate the signals of the voice, data and video. It is an essential and ideal tool for the construction and maintenance of the PON projects.
KEY FEATURES;
● TFT color screen
● 10 minutes Auto-off function can be activated or deactivated, date and time setting.
● Optional Chinese/English display.
● Can test the three wavelengths of 1310, 1490 and 1550nm in PON system simultaneously
● Used in Burst mode measurement of 1310nm upstream.
● The instrument can set the measuring threshold and calibration wavelength
● Support VFL function
● Support Optical Power Meter test mode
● Support for simultaneous measurement and display of experimental voice, data and video signals on the BPON/EPON/GPON architecture.
TECHNICAL SPECIFICTIONS;
MeasurementRange(dBm) | 1310 upstream | 1490 downstream | 1550 downstream |
+10~-35 | +12~-40 | +25~-40 | |
Pass Zone(nm) | 1310±50 | 1490±15 | 1550±10 |
Isolation 1310nm(dB) | / | >40 | >40 |
Isolation 1490nm(dB) | >40 | / | >40 |
Isolation 1550nm(dB) | >40 | >40 | / |
Connatural uncertainty(dB) | ≤0.5 | ||
wavelength calibration(nm) | 1310/1490/1550/1625 | ||
Linearity(dB) | 0.01 | ||
Insertion Loss(dB) | ≤1.5 | ||
Display | TFT color screen | ||
Optical Connector | FC/SC/ST Interchangeable/2.5 universal adapter | ||
Data storage | 1000 | ||
Power Supply | lithium battery/3pc1.5V battery | ||
Battery Operation time (h) | ≥6 | ||
Operation Temperature(℃) | -10~60 | ||
Storage temperature(℃) | -25~70 | ||
Relative humidity | 0~95% No condensation | ||
Dimensions | 23.5*16*200px | ||
Weight | 0.65kg |
