1-12C, 16C Ribbon Fiber Coating Hot Jacket Remover
PART#: AFR-250-12C
FEATURES:
High Quality
No cracks on blade surface with optimal design.
High Productivity
Stabilized stripping with automatic motor Consistent quality of cleaving.
More Convenience
Applicable for both single and ribbon fiber,Customized setting with 5 steps adjustable heating time and temperature.
Description :

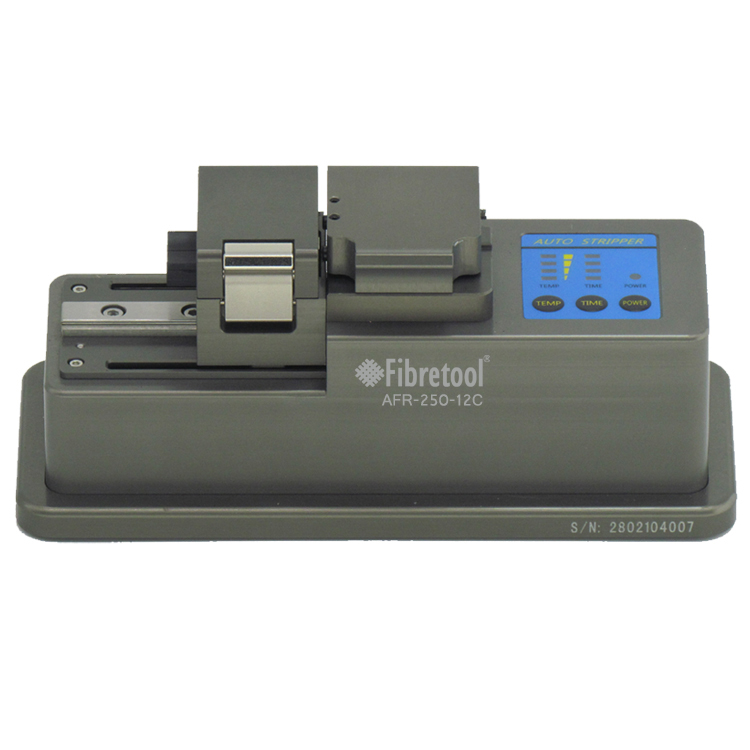

AFR-250-12C Auto Stripper is designed to strip various type of fiber optic cables using its heater which adjusts heating time and temperature. It always gives customers stable operation, high quality of stripping and productivity with its auto motor and LM guide bearing. (Occurrence of ratio of cracks on fiber : 0%, High tension strength).
Features:
1. Lightweight, Shock Resistant, Portable, Rugged Design
2. Easy Fiber Coating Removal
3. Fast Temperature Stabilization to Reduce Warm-Up Time
4. 2-12 Fiber Ribbons or Single Fiber Stripping
5. 3-Way Power Supply (Battery, AC/DC, and Fusion Splicer’s 12V DC Output)
6. Compact Hand-held Design
7. Field Replaceable Blades
8. Rechargeable Lithium-Ion Battery
9. Internally Charges the Battery While Externally Powered.
Specification:
Coating stripped length | Up to 30mm |
Heating mode | Normal mode |
| Power saving mode |
Temperature setting | This machine is equipped with 70 ° C, 90 ° C, 110 ° C, and 130 °C Fourth gear |
Fiber fixing method | Using the FH-1, FH-2 FH-4 and FH-8, FH-12 fixture |
Power supply mode | Using 7.4V lithium batteries and dual power supply DC12V adapter |
Battery Operating Time | Continuous heating for about 5 hours working time |
Dimensions | 136 (L) X 46 (D) X 41.5 (H) mm |
Weight | 750g |
Environmental requirements | Temperature 0-40 ° C temperature is below 85% |
STANDARD PACKAGES;
Key | Description | Model No. | QTY |
1 | Thermal Jacket Remover | AFS-250-12C | 1 |
2 | AC power adapter |
| 1 |
3 | AC Power cord |
| 1 |

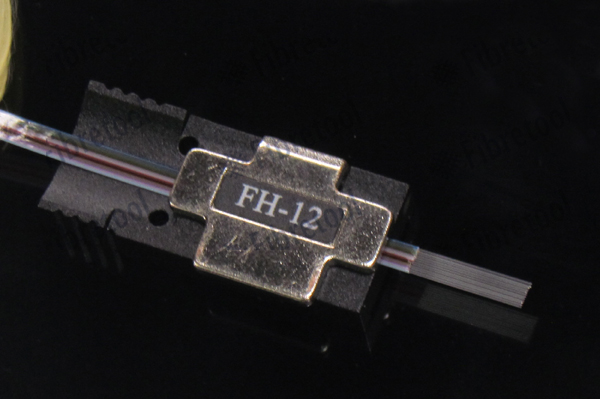

4 | 12 core fiber holder | FH-12 | 1 |
5 | Cleaning Brush |
| 1 |
6 | User Manual |
| 1 |
