SFP-550C Seikoh Giken  Mass Production Polishing Machine
❤ Add to collection

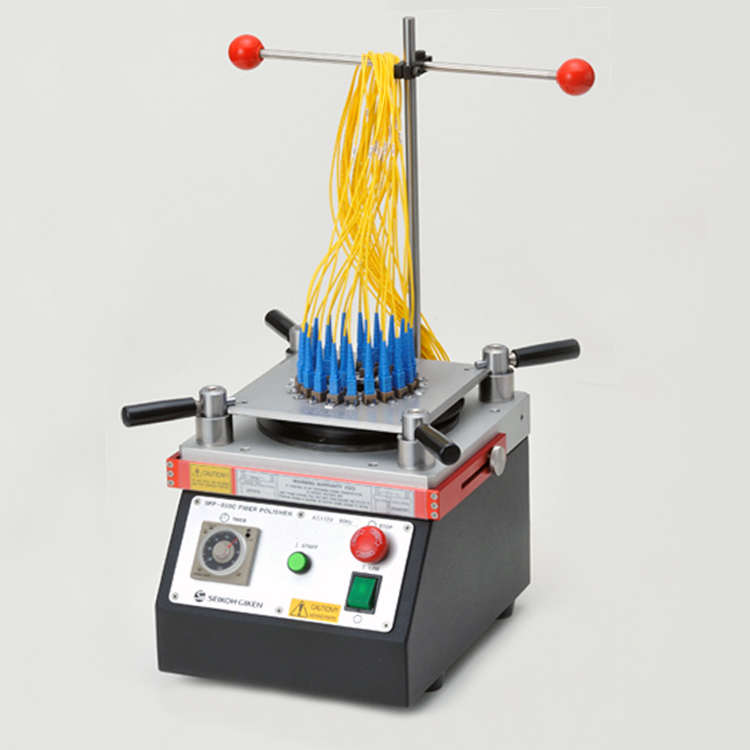

SFP-550C Seikoh Giken Mass Production Polishing Machine

Mass Production Fiber Optic Polishing Machine, Made in Japan
PART#: SFP-550C

The SFP-550C Polisher Series is Seikoh Giken's entry level mass production model. The 550C series model was also developed under the recently introduced concept of "Ez-Maintenance and High Duty Cycle" series. And, compared to the previous SFP-550 series, there is dramatic improvement in the ease of maintenance and machine robustness that has achieved reduction in maintenance cost (90% less per our internal test).

The addition of the high speed turntable technology allows the SFP-550C model to increase productivity by more than 20% (according to our internal test) over previous entry level polishers.

All Seikoh Giken polishing holders come equipped with the proprietary IPC (Individual Pressure Control) system that provides even pressure to each ferrule regardless of it's protrusion length while achieving stable and high-quality output.

Efficient large scale mass production lines focused on cost/production savings can be established by installing this combination of polishing machine and IPC holder for each polishing step.


0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description
Mass Production Fiber Optic Polishing Machine, Made in Japan
PART#: SFP-550C

The SFP-550C Polisher Series is Seikoh Giken's entry level mass production model. The 550C series model was also developed under the recently introduced concept of "Ez-Maintenance and High Duty Cycle" series. And, compared to the previous SFP-550 series, there is dramatic improvement in the ease of maintenance and machine robustness that has achieved reduction in maintenance cost (90% less per our internal test).

The addition of the high speed turntable technology allows the SFP-550C model to increase productivity by more than 20% (according to our internal test) over previous entry level polishers.

All Seikoh Giken polishing holders come equipped with the proprietary IPC (Individual Pressure Control) system that provides even pressure to each ferrule regardless of it's protrusion length while achieving stable and high-quality output.

Efficient large scale mass production lines focused on cost/production savings can be established by installing this combination of polishing machine and IPC holder for each polishing step.



Specification

Application

Mass production

Pressure Source

4 coil springs

Polishing Capacity(maximum)

48

Dimensions

W250×D305×H240mm

Weight (approx.)

16kg

Input Voltage

100-120 VAC, 50/60Hz
or 220-240 VAC, 50/60Hz

Connector Type

φ2.5mm PC, APC
φ1.25mm PC, APC
MT, mini-MT, Fiber Array
