The fiber optical curing oven suits in the fiber optic connector Manufacturer, uses in heating up each kind of optical fiber connector.

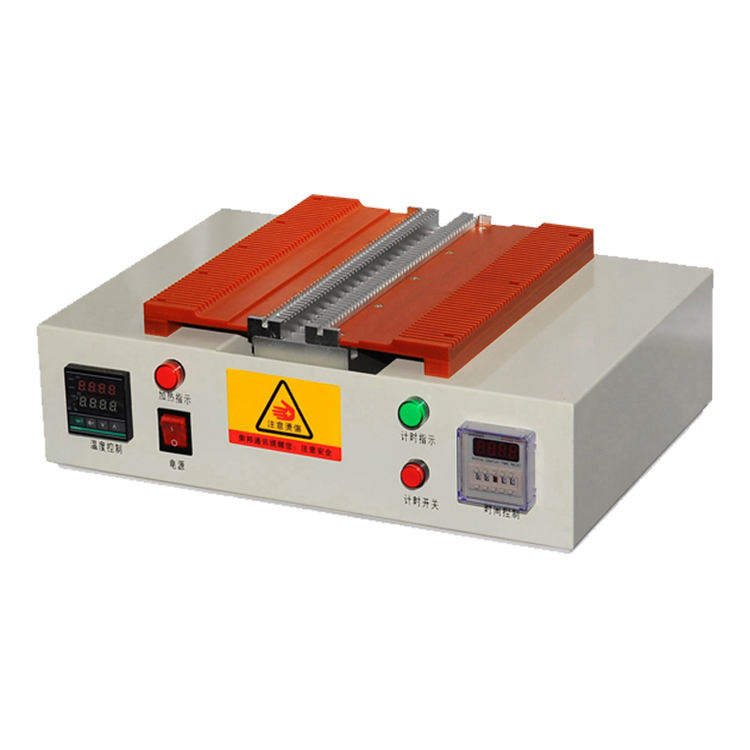

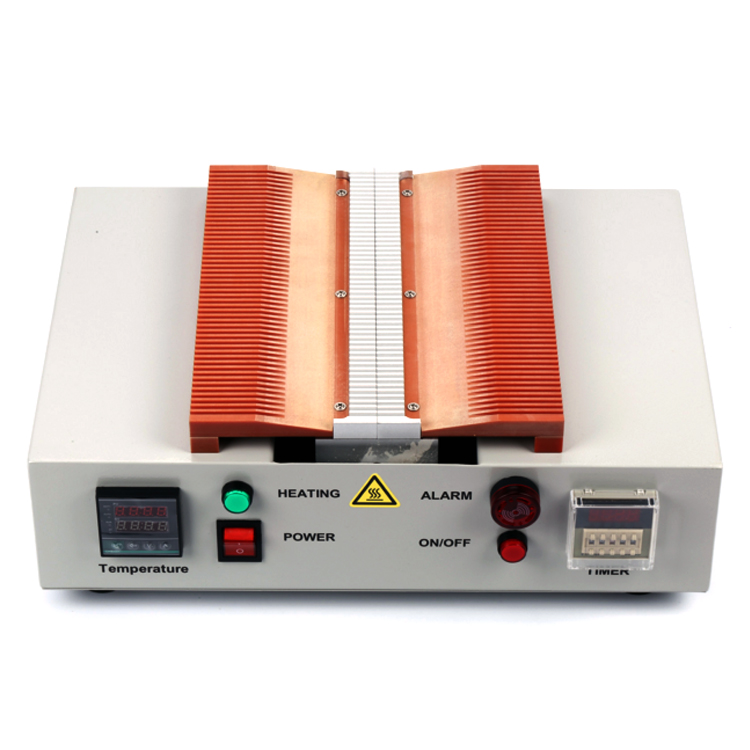

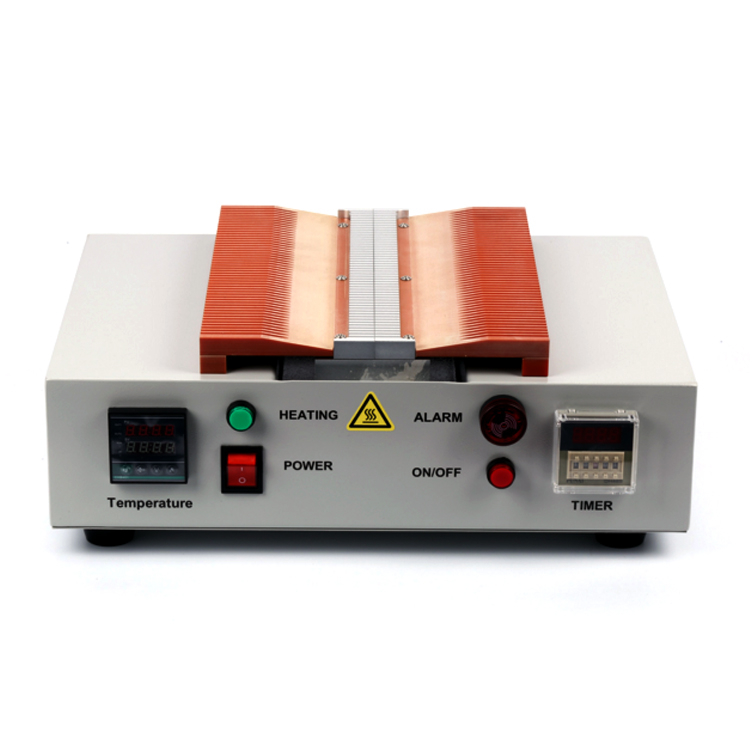

HW-1050 fiber connector heat oven are dedicated to heating Ceramic Ferrule 48 port and heating connector 100 port fiber optical curing oven's temperature and the time establishes freely, the temperature control precision is high, may reach 1 degree. And control the heating time by designation. The fiber optical curing oven easy to use and dependable.
● Applicaqtions: Multimode and Single mode
● Temperature control(0℃-300℃) and "Power On" indicator
● Temperature Stability: +/- 3℃
● Time to read 200℃: ~8 minutes
● Available in AC110V or AC220V
● Easy to use.
SPECIFICATIONS:
1 | Technical parameters | Specification |
2 | Heating Temperature | 40-200degrees |
3 | Dimensions | 400*320*150mm |
4 | Weight | 7.5kgs |
5 | Input Voltage | 100-120VAC/200-240VAC |
6 | Power Consumption | 800W |
7 | Automatic | Yes |
8 | Making Method of Parison | PLD |
9 | Type | Full-Electric Controlled |
10 | Warm up Time(Apporox) | About 15min |
11 | Type of production | 1.25mm, 2.5mm, SC/FC/ST/LC/ MPO/MTRJ all kinds of connectors |
12 | Capacity | 100connectors |
13 | Material | Stainless Steel |
14 | Outer Case | Baking Paint for Metal |
15 | Style | Horizontal |
