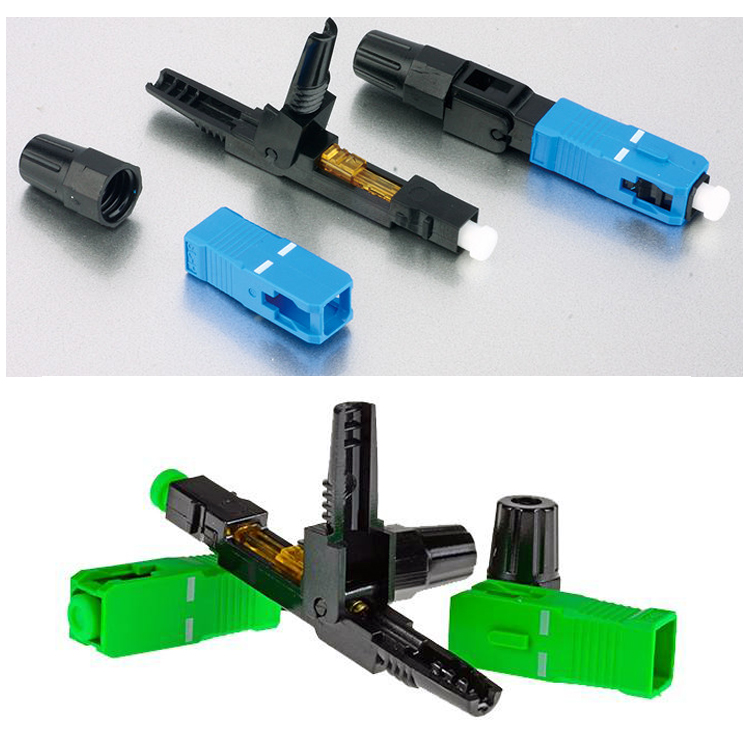

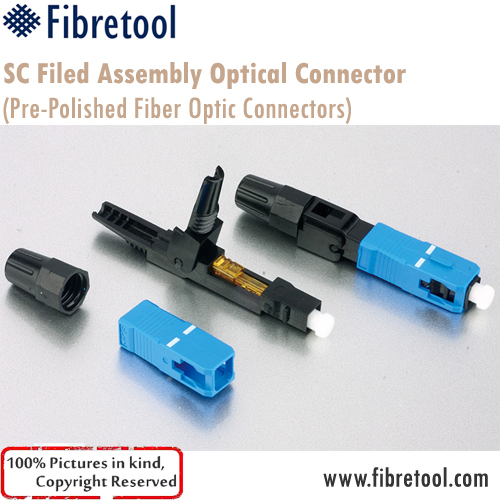

SC/UPC FTTH Fiber Fast Connector
❤ Add to collection

SC/UPC FTTH Fiber Fast Connector

PART#: sc/upc

- The SC Field Assembly Optical Connector is pre-polished, field installable connector that completely eliminate the need for hand polishing in the field.

Application
1. Data and Video transmission
2. Direct equipment termination
3. Fiber to the Subscriber (FTTX)
4. Equipment test leads
5. Maintenance and replacement requirement
Feature:
1. Pre-Polished,Field Installable Connectors
1. Epoxy Free
2. Easy and quick on-site installation less than 2 minutes
3. Precision mechanical alignment insures low loss
0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description
PART#: sc/upc

- The SC Field Assembly Optical Connector is pre-polished, field installable connector that completely eliminate the need for hand polishing in the field.

Application
1. Data and Video transmission
2. Direct equipment termination
3. Fiber to the Subscriber (FTTX)
4. Equipment test leads
5. Maintenance and replacement requirement
Feature:
1. Pre-Polished,Field Installable Connectors
1. Epoxy Free
2. Easy and quick on-site installation less than 2 minutes
3. Precision mechanical alignment insures low loss

Specifications:

1. Applicable for Ø2mm & Ø3mm fiber cable

2.Insertion Loss:0.2dB(MAX0.5)

3.Return Loss:40dB

4.Part No.:SC/PC ;

5.Tensile strength: >50N

6.Using temperature:-40~+75




If you have any questions in assembly, please contact us.
