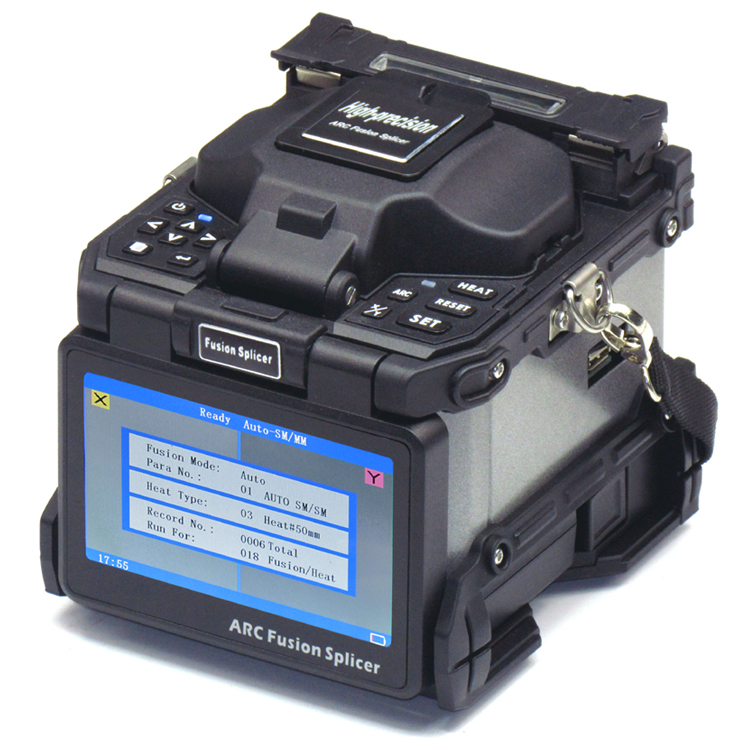

PART#: FBT-21S
Six-motor Core Alignment
Fiber Fusion Splicer Specifications: Applicable
fiber
SM(ITU-T
G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of
cladding
80 -150μm
Diameter of coating
160-900μm
Typical splice loss
SM: 0.02dB, MM:
0.01dB, DS: 0.04dB, NZDS: 0.04dB
Return loss
> 60dB
Fibe cleaved length
10-16mm ( coating
diameter < 250um), 16mm
(coating diameter:250-1000um)
Splicing program
40 groups
Operate mode
Automatic/Manual
Auto-heating
Available
Typical splicing
time
6 seconds
Typical heating
time
16 seconds
Fiber magnification
250X (X or Y view),
125X (X and Y view)
Display screen
5.0 inch color LCD
monitor
Records storage
4000 results
Loss evaluation
Available
Tension test
1.8-2.2N
Interface
GUI menu interface,
easy for operation
Battery
5200mAh Li-battery,
typical 300 cycles splicing and heating, suppport separating charging
Power supply
Adapter, input: AC
100-240V(50/50HZ), output: 11-13.5V
Electrodes life
More than 4000 ARC
discharges, can be replaced vonveniently
Ternimal
USB2.0 port, for
software upgrading and records exporting
Operating
conditions
Altituede: 0-5000m,
Humidity: 0-95%, Temperature: -10℃~+50℃, Wind speed: Max 15m/s
Dimension
160mm(L) * 136mm(W)
* 140mm(H) (including rubber armor)
Weight
2.20kg (including
battery)
NO.
ITEM
1
FBT-21S ARC Fusion
Splicer
2
Carrying box
3
Fiber cleaver
4
Fiber
stripper
5
Drop cable stripper
6
Power cord
7
Adapter
8
Cooling tray
9
User manual (USB)
10
Spare electrodes
11
Cleaning tool kit
12
Strap

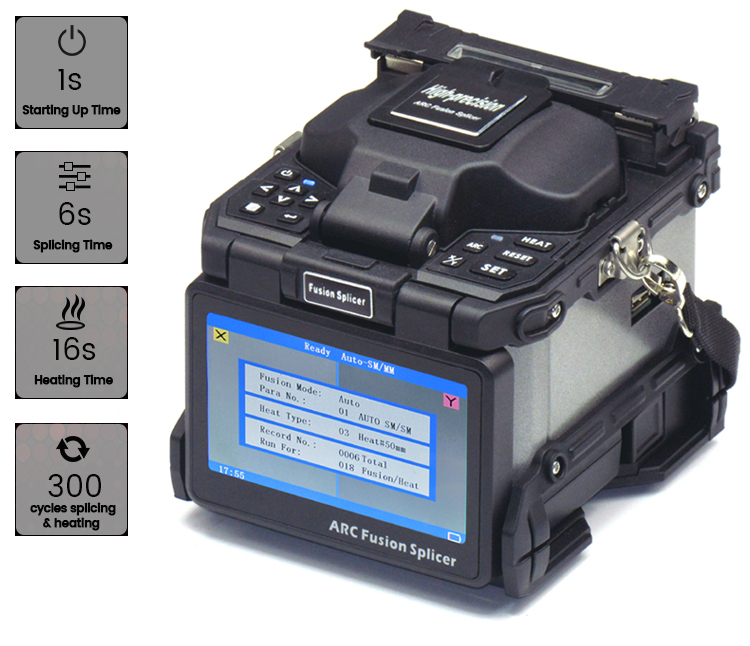

Features:
*6 motors accurate core to core alignment
*Automatic fiber type identification
*6s stable splicing & 16s fast heating
*Automatic & real-time ARC calibration
*Bluetooth remote assistance system
*Upgraded CPU with 30% power saving
*Real-time heating temperature monitoring
*Anti-shock, Anti-dust and waterproof
*Apply to bare fiber, patch cord, drop cable etc.
