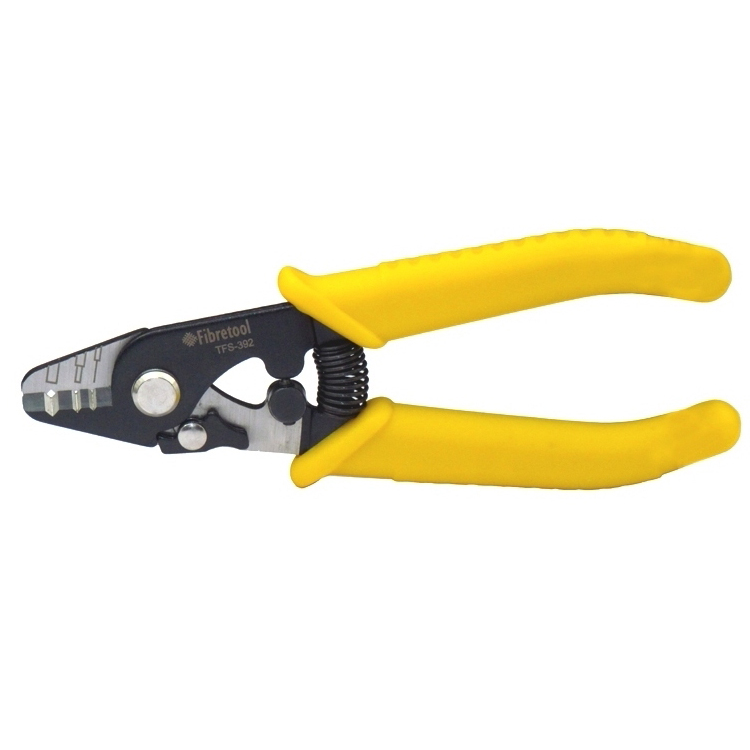

TFS-392 Precision Fiber Optic Stripper
❤ Add to collection

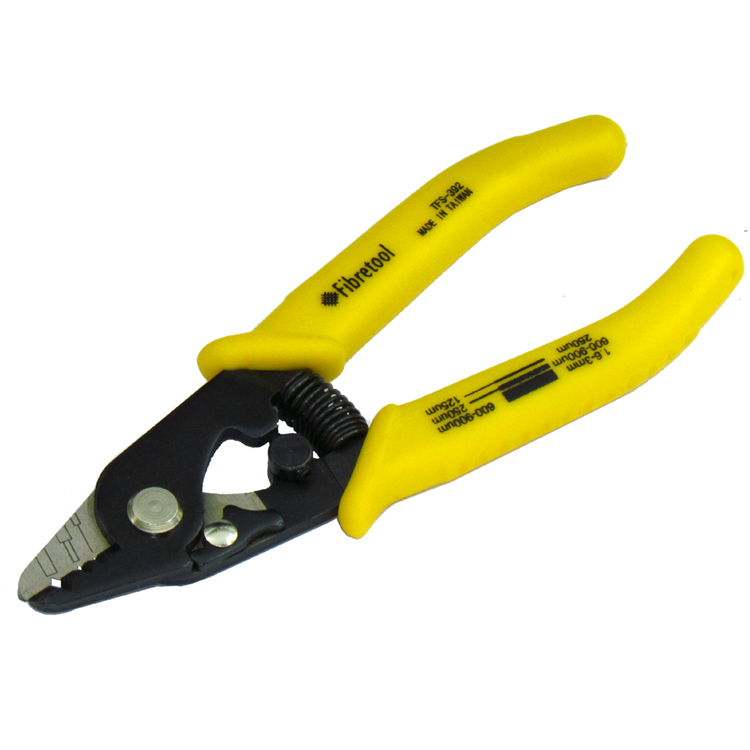

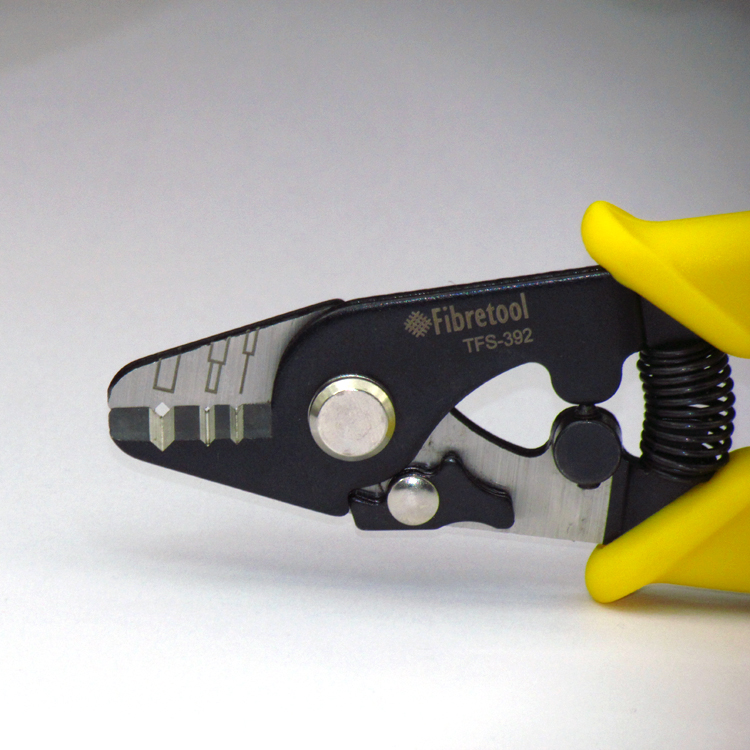

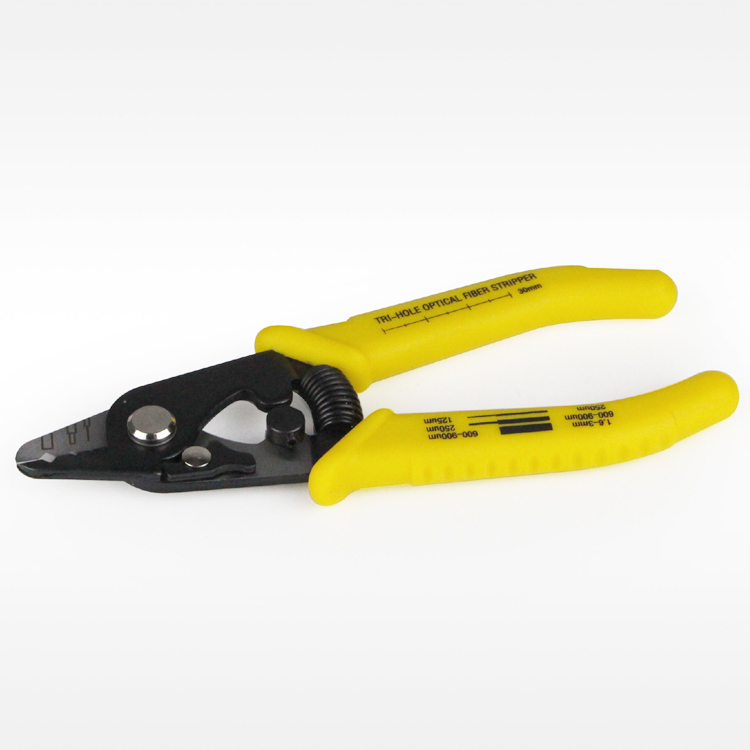

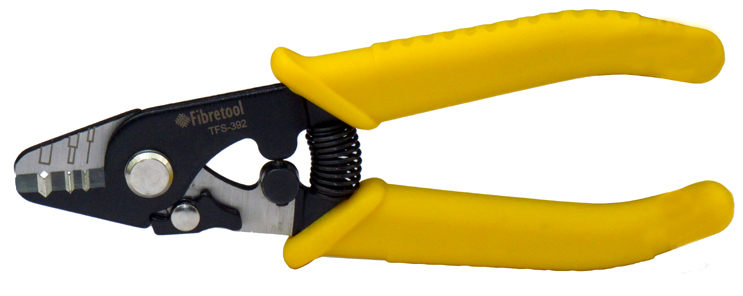

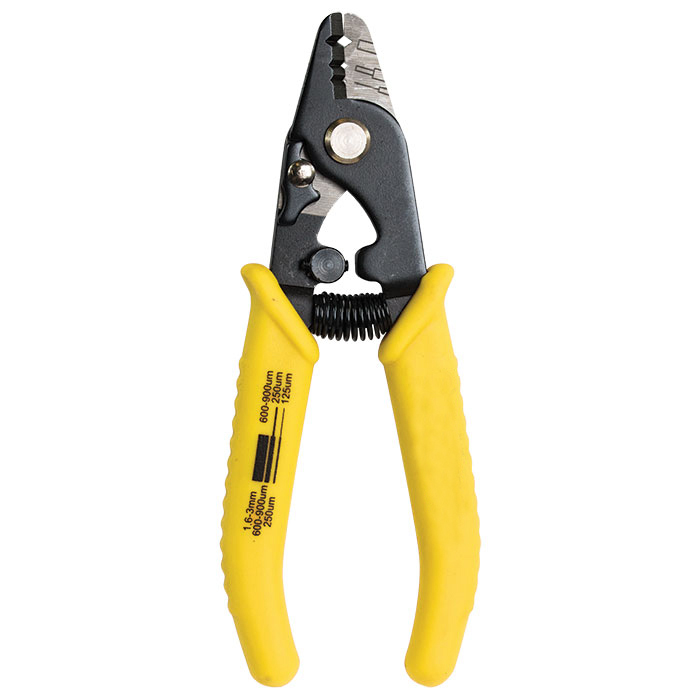

TFS-392 Precision Fiber Optic Stripper

Jacket / Buffer / Coating 3-way Fiber Stripper
PART#: TFS-392

FEATURES;

•  Three-hole model performs all common fiber stripping functions in one compact tool

•  Hole for removal of 2 to 3 mm fiber jackets

•  Remove 900 tight buffer to 250 micron buffer coating

•  Standard 250 to 125 micron stripping



￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Description

Jacket / Buffer / Coating 3-way Fiber Stripper
PART#: TFS-392

FEATURES;

•  Three-hole model performs all common fiber stripping functions in one compact tool

•  Hole for removal of 2 to 3 mm fiber jackets

•  Remove 900 tight buffer to 250 micron buffer coating

•  Standard 250 to 125 micron stripping



DESCRIPTION;

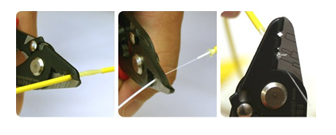

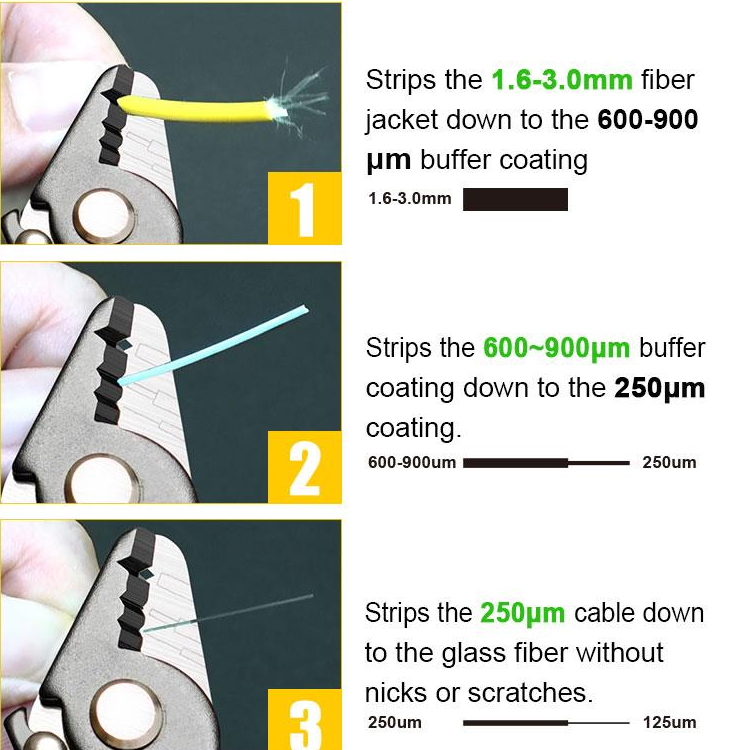

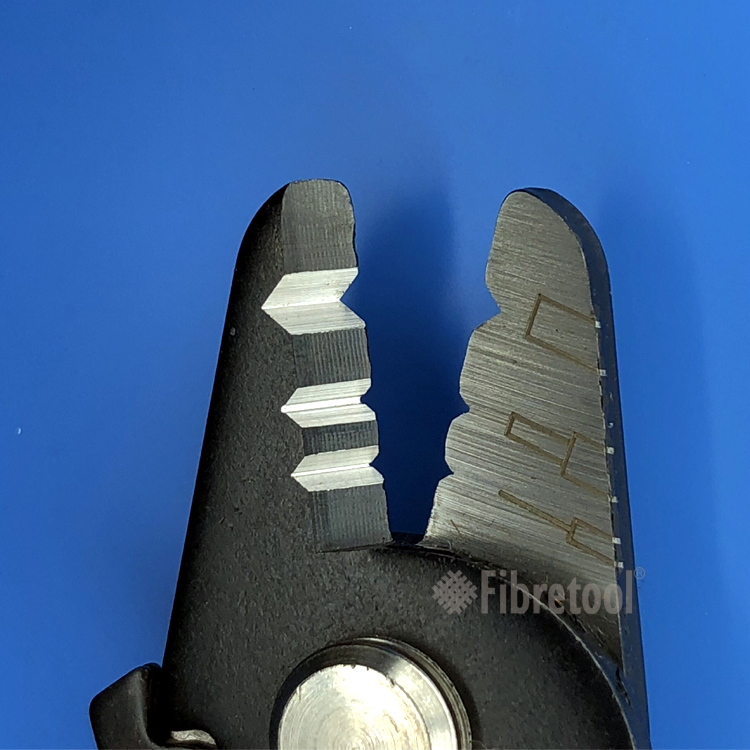

The TFS-392 works for all varieties of fiber optic cable, including loose tube and bonded fibers. Its three cutting notches are designed to strip 1.6 – 3mm fiber optic cable jacket down to the 600-900 micron buffer tube, then to the 250-micron coating, and finally down to the 125-micron glass fiber.






FEATURES:

  • Three-hole model performs all common fiber stripping functions in one compact tool….

  • Hole for removal of 2 to 3 mm fiber jackets

  • Remove 900 tight buffer to 250 micron buffer coating

  • Standard 250 to 125 micron stripping


Cut Type

Strip

Cable Type

Jacket, Buffer, Acrylate Coating

Cable Diameter

125 micron, 250 micron, 900 micron, 1.6-3.0   mm

Handle

TPR (Thermoplastic Rubber)

Color

Yellow Handle

Length

152 mm

Weight

140.16 g
