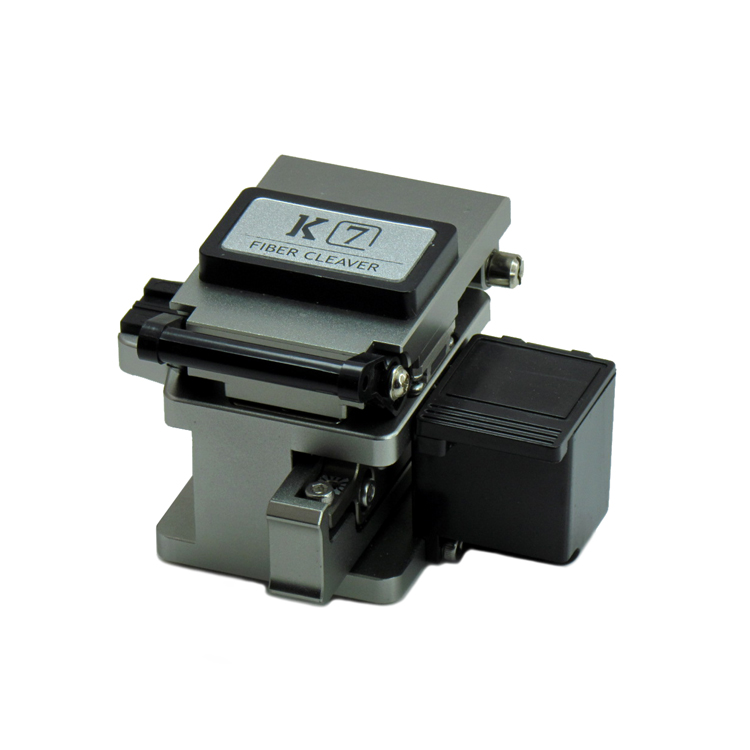

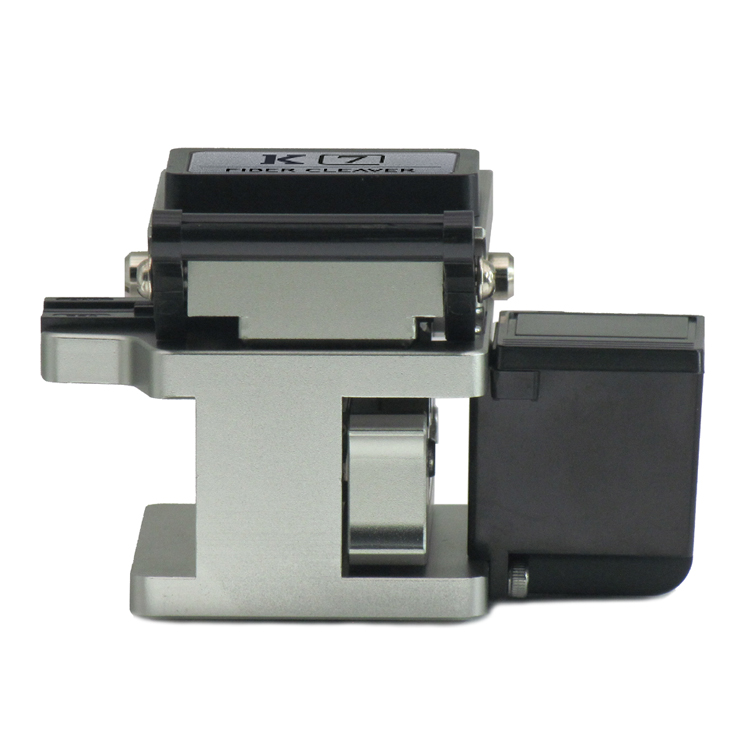

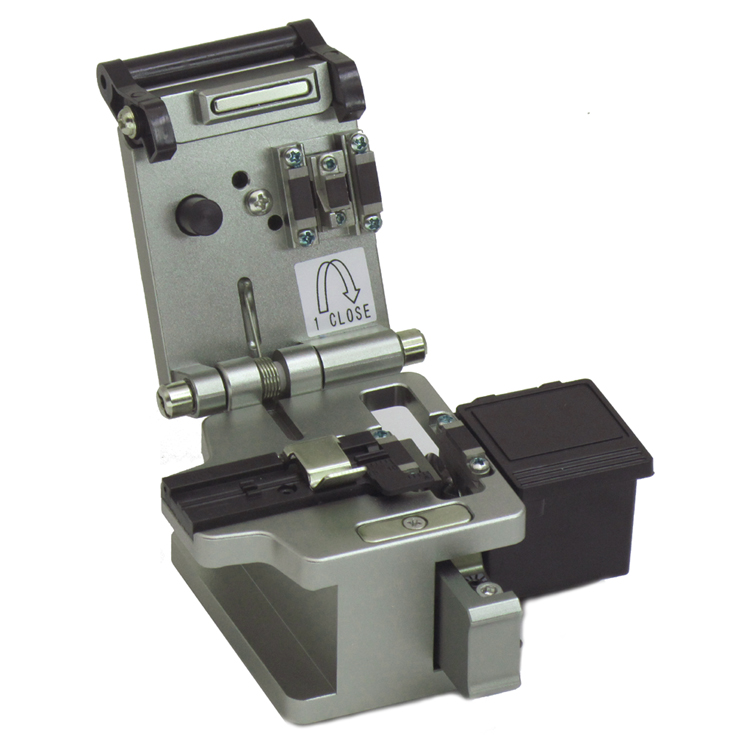

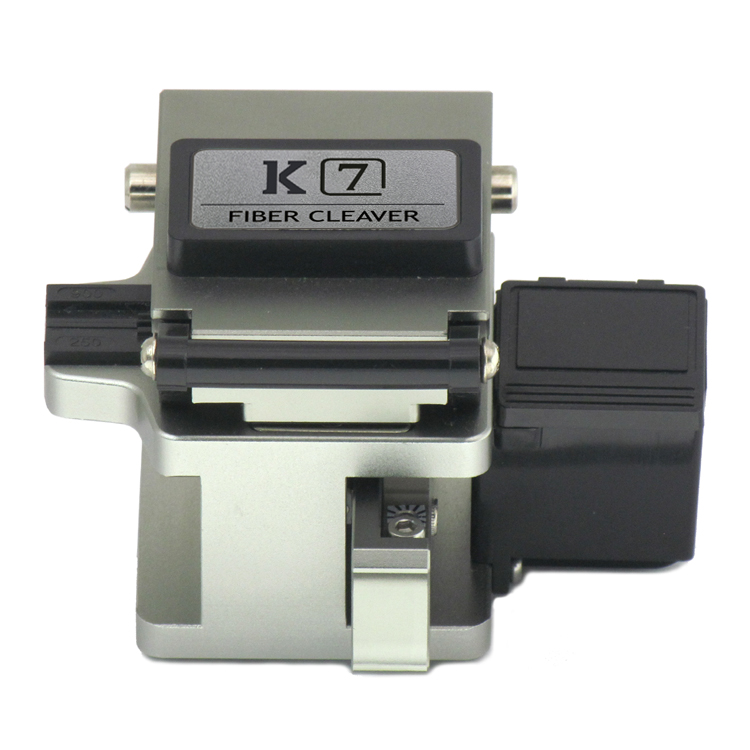

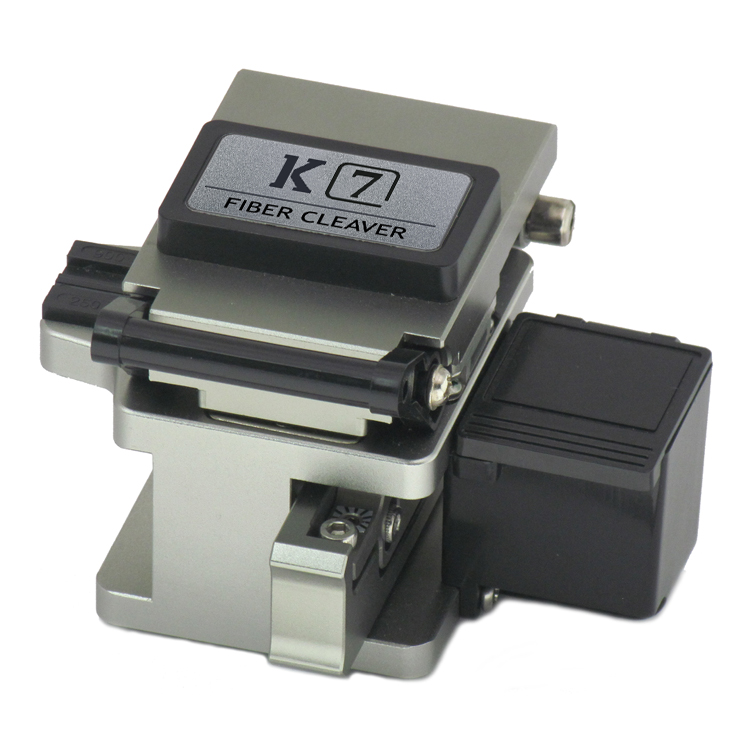

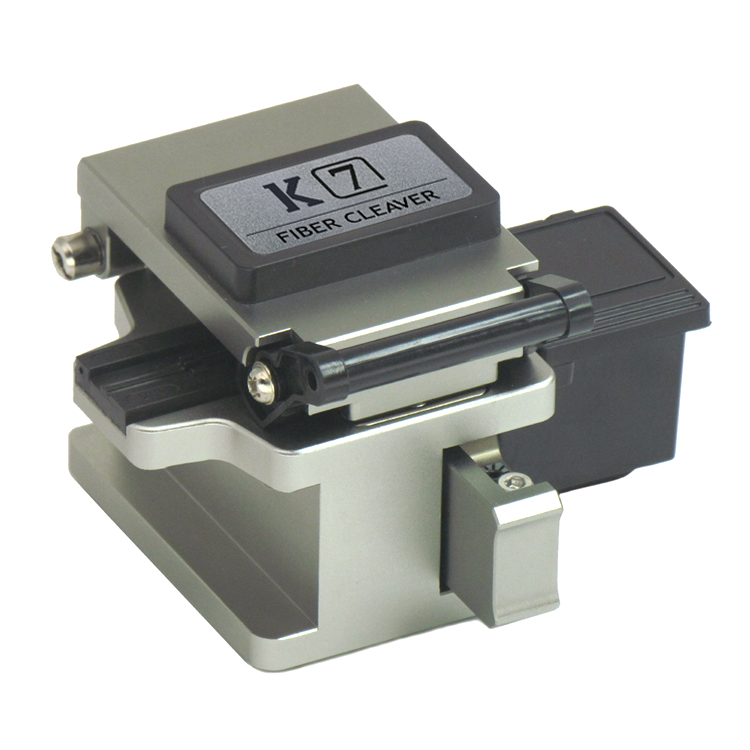

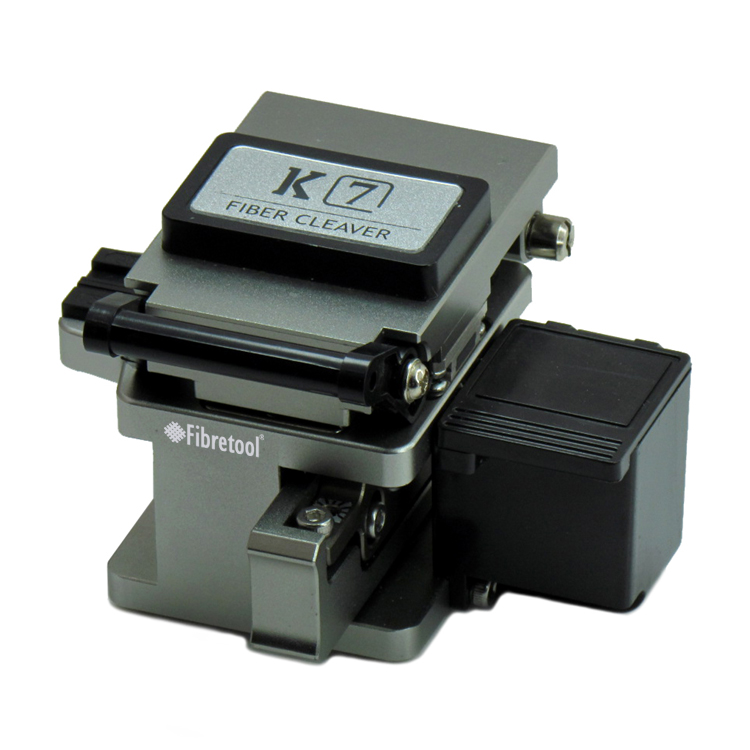

K7 High Precision Fiber Cleaver
❤ Add to collection

K7 High Precision Fiber Cleaver

High Precision Single & Ribbon Fiber Cleaver， Compact and Easy-To-Use

PART#: K7

FEATURES AND BENEFITS:

● Compact Ergonomic Design, Light weight and user friendly shape

● Longer life blade (3 height settings х 16 rotating positions = 48,000 cleaves)

● Applicable up to 12-fiber ribbon cleaving

● 24 Position Rotatable and Replicable Blade

● Spare blade part number: FCP-20BL

￥0.00
0.00
￥0.00
￥0.00
Weight：0.00KG
Description

High Precision Single & Ribbon Fiber Cleaver， Compact and Easy-To-Use

PART#: K7

FEATURES AND BENEFITS:

● Compact Ergonomic Design, Light weight and user friendly shape

● Longer life blade (3 height settings х 16 rotating positions = 48,000 cleaves)

● Applicable up to 12-fiber ribbon cleaving

● 24 Position Rotatable and Replicable Blade

● Spare blade part number: FCP-20BL

High precision optical fiber cleaver K7 cuts optical fiber very precisely. K7 can be used for a wide range of holders for up to twelve ribbon cables as well as universal holders for 250um, 900um and 3.0mm fibers and flat cables. K7 fiber cleaver is easy and simple to operate in two steps to maximize work efficiency.

K7’s superior cutting capability allow users to nail the most accurate cut and be prepared for the ideal fiber fusion splicing or other precision applications.

SPECIFICATIONS

Type

Single fiber and ribbon fiber

Cladding Diameter

125μm

Applicable Fiber Cable

Single Fiber :160μm to 900μm, 2mm~3mm and drop cable

Ribbon Fiber : 2 to 12 ribbon fiber cable

Cleaved Length

Single Fiber : 5mm~16mm

Ribbon (Multi) Fiber : 10mm~20mm

Typical Cleaved Angle

Less than 0.5 Degrees

Typical Blade Life Span

Total 48,000 fiber cleaves (1,000 fiber for 1 step * total 16 points * 3 heights)

Operation Steps

2 Steps

Holder

Single: Universal holder / Ribbon: Replaceable holder

Size

62 × 76 × 62mm (without fiber trash bin)

Weight

385 grams
