DESCRIPTION;
● To prevent epoxy “out gassing” that can cause fiber fractures and other connectors problems, it is important that a connector curing oven provide reliable oeration.

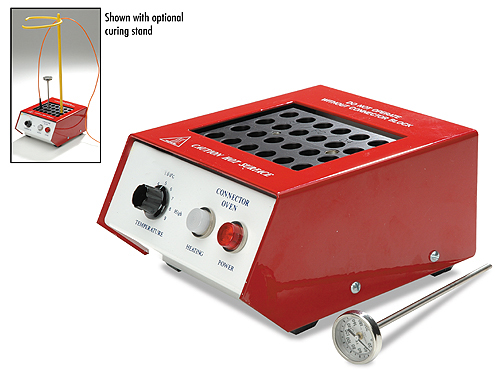

The Fibretool connector oven is perferred by many installers because it is simple, dependable,and easy-to-us.
● The 24 holes fiber curing oven use technology using PLD, so it control the The temperature accurately, this 24 holes fiber curing oven is small size, easy to carry, quick heating. This type of 24 holes curing oven is Widely used in the house or field operation like outdoor projects and The Toolbox, and this 24 holes fiber curing oven can reache the command Of your request.
● Easy to use Easy to Use - A Favorite of Many Installers
● Temperature Control and "Power On” Indicator
● Available in 110V or 220V
● Includes 24 Port Block for FC, ST, SC, SMA, D4 Connectors
● Additional Holding Blocks Available
SPECIFICATIONS:
1 | Technical parameters | Specification |
2 | Heating Temperature | 40-200degrees |
3 | Dimensions | 180*140*90(Mm) |
4 | Weight | 2kg |
5 | Input Voltage | 100-120VAC/200-240VAC |
6 | Power Consumption | 200W |
7 | Automatic | Yes |
8 | Making Method of Parison | PLD |
9 | Type | Full-Electric Controlled |
10 | Warm up Time(Apporox) | About 15min |
11 | Type of production | 1.25mm, 2.5mm, SC/FC/ST/LC/
MPO/MTRJ all kinds of connectors |
12 | Capacity | 24 connectors |
