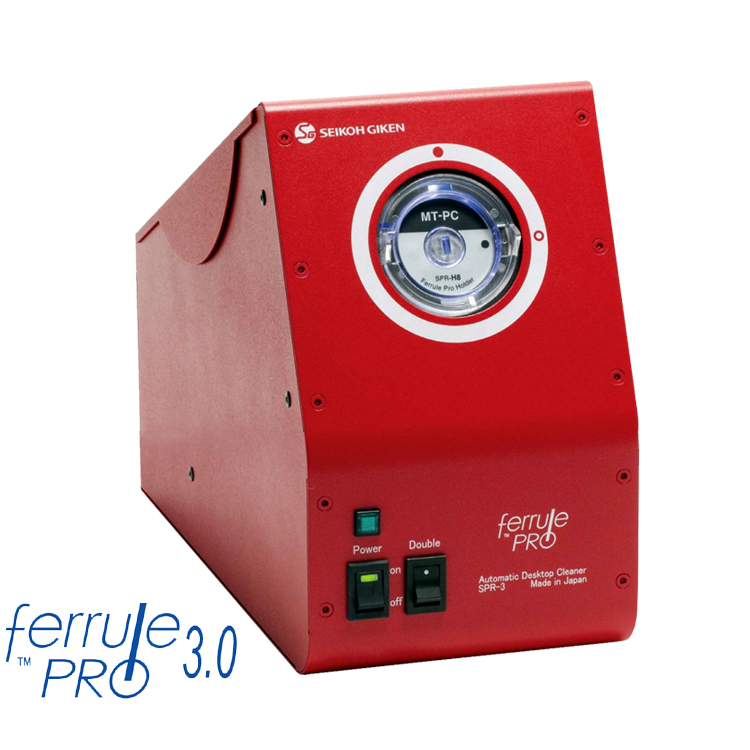

Ferrule Pro SPR-3 The World's First Bench-top Fiber Cleaner
PART#: Ferrule PRO SPR-3
KEY FEATURES;
● Efficient, quick, consistent cleaning results - no training required
● Unique self-starting holding chuck
● Hands-free cleaning on a wide variety of fiber ferrules, termini and connectors
● Significantly reduced production cycle time
● High-speed cleaning (20 connectors / min.)
● MT ferrule/ MTP connector typical cleaning time is less than 3 seconds
● Eco-friendly, long, life replaceable cleaning cassettes
● Durable, textured wedge body design is inclined to improve functionality
● 10,000 cycles per cleaning cassette.
PRODUCT OVERVIEW:
Automatic Desktop Cleaner SPR-3(Ferrule Pro™) FerrulePro™ is the world’s first fully automated bench-top fiber connector cleaner for laboratory and cable production environments. FerrulePro™ automates the final cleaning of all types of terminated fiber products, a critical task where performance once depended largely on the production line worker’s skill. Now, fiber connectors can be cleaned in 3 second cycles - eliminating the need for re-cleaning after post production inspection.
Automatic Desktop Cleaner SPR-3(Ferrule Pro™) FerrulePro™ is the world’s first fully automated bench-top fiber connector cleaner for laboratory and cable production environments. FerrulePro™ automates the final cleaning of all types of terminated fiber products, a critical task where performance once depended largely on the production line worker’s skill. Now, fiber connectors can be cleaned in 3 second cycles - eliminating the need for re-cleaning after post production inspection.
Key Features
▪ Efficient, quick, consistent cleaning results - no training required
▪ Unique self-starting holding chuck
▪ Hands-free cleaning on a wide variety of fiber ferrules, termini and connectors
▪ Significantly reduced production cycle time
▪ High-speed cleaning (20 connectors / min.)
▪ MT ferrule/ MTP connector typical cleaning time is less than 3 seconds
▪ Eco-friendly, long, life replaceable cleaning cassettes
▪ Durable, textured wedge body design is inclined to improve functionality
▪ 10,000 cycles per cleaning cassette
■Specification/ Ordering Information
Unit Part Number | SPR-3 |

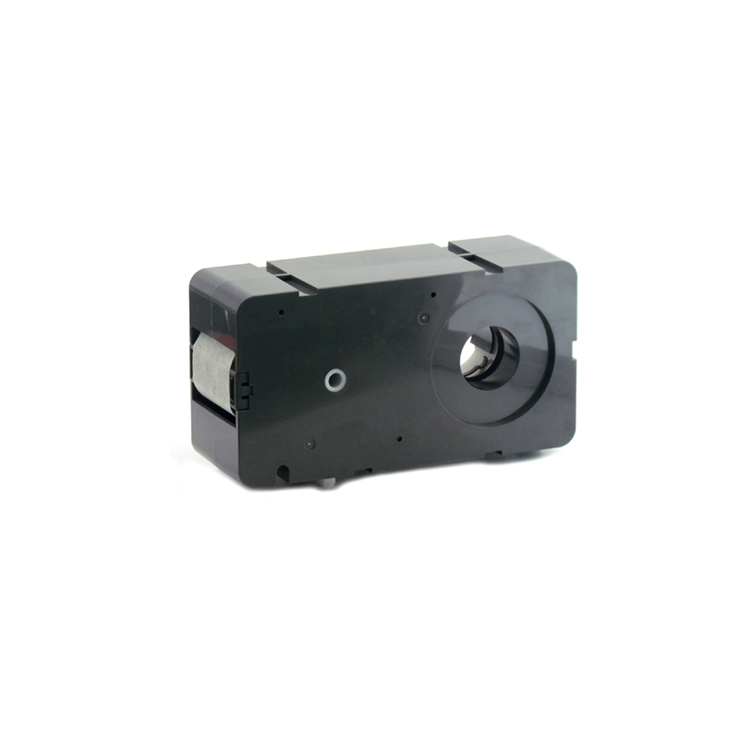

Cassette Part Number | SPRP-10K |
Dimension | 120(W) x 260(D) x 200(H) mm |
Weight | Main unit : 2kg Replacement cassette: 0.5kg |
Power Supply | AC 100-240V 50/60Hz |
Cleaning Media | Lint free cleaning paper in a replaceable cassette |
Applicable Connector | SC, FC, ST, LC, MU Connectors & Ferrules Multi fiber MT/MPO, PC/APC tips |
■Standard Accessories for FerrulePro™ 3.0
Description | Part No. |
| |
Holding Chuck | MT/PC Ferrule | SPR-H8 | 1pc |
MT/APC Ferrule | SPR-H18 | 1pc | |
MPO/PC Connector | SPR-H9 | 1pc | |
MPO/APC Connector | SPR-H19 | 1pc | |
Replacement Cassette | Standard Cassette | SPRP-10K | 1pc |
Others | AC Adaptor (100-240VAC) | SPR-AC | 1pc |
Operation Manual | N/A | 1pc |
■Optional Accessories
Description | Part No. |
| |
Holding Chuck | FC/PC, SC/PC Connector | SPR-H1 | 1pc |
ST/PC, D2.5mm Ferrule | SPR-H2 | 1pc | |
LC/PC,MU/PC D1.25mm Ferrule | SPR-H3 | ||
LC/PC Duplex Connector | SPR-H11 | ||
Hybrid PC D1.25mm/2.5mm Ferrule | SPR-H15 | ||
High Duty LC/PC D1.25mm Ferrule | SPR-H3L | 1pc | |
SC/APC Connector | SPR-H4 | 1pc | |
FC/APC Connector | SPR-H5 | 1pc | |
LC/APC Connector | SPR-H6 | 1pc | |
MU/APC Connector | SPR-H7 | 1pc |
*Note: Need to order separately.

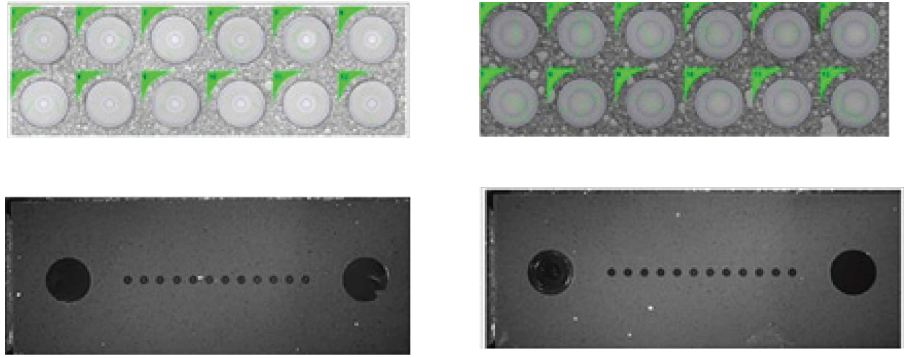

■Cleaning Performance*
See how the FERRULE PRO SPR-3 Automatic Desktop Cleaner works in this video.
FERRULR PRO SPR-3 Operating Video Link:
