Designed for precise, safe and easy access to fiber buffer tube.

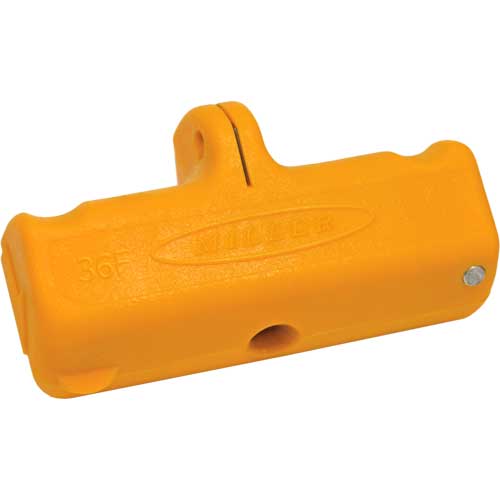

PART#: MB04-7020: SST-Drop™ Cable Slitter For Toner Wire
FEATURES:

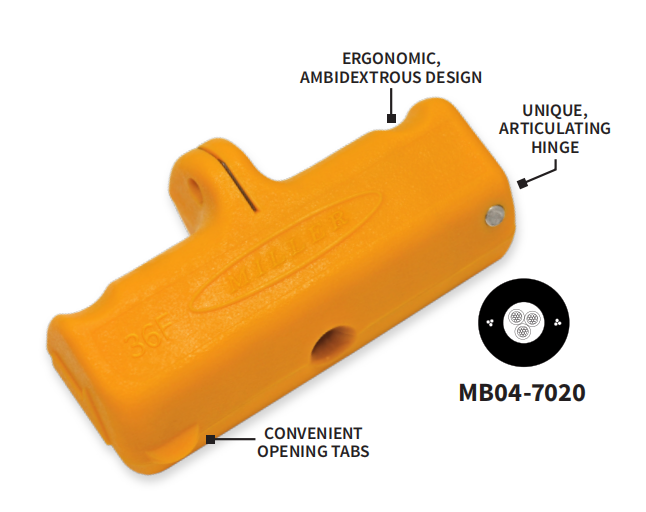

● The unique articulating hinge allows accurate end AND mid-span stripping without disassembling the tool — simply close the tool over the cable and pull to slit jacket
● Shielded blades promote safe operation and prevent cuts and lacerations
● Ergonomic design with convenient opening tabs fits comfortably in hand and requires minimal effort to use
● Comes with two installed reversible blades plus two additional replacement blades stowed conveniently in the tool
● Lightweight and durable polymer construction
● Flat drop and ULW models color-coded for quick and easy identification
● Replacement blade kit comes with 4 blades
Design slits both sides of FTTX drop cable jackets on end or mid-span applications, and allows for precise, safe and easy access to fiber buffer tube.
MB04-7020 Operating Video Link:
https://www.youtube.com/watch?v=JZnuhqL_puo
Cable Access | Mid-Span, End |
Material | Impact-Resistant Polymer |
Dimensions | 1.8″ x 2.1″ x 3.78″ (45 x 53 x 96 mm) |
Weight | 3.88 oz (110 g) |
Replacement Blade Part # | MB04-7500 |
MODEL | PART# | GTIN | CABLE COMPATIBILITY | CABLE DIAMETERS | CABLE WIDTH | CABLE HEIGHT |
Flat Drop Cable Slitter | MB04-7000 | 856848006557 | CommScope® | N/A | 0.305ʺ - 0.350ʺ | 0.155ʺ - 0.185ʺ |
FTTX ULW Drop Cable Slitter | MB04-7020 | N/A | Hexatronic (4/12/24/36/48F) | 0.275ʺ (7 mm) | N/A | N/A |
