Professional-grade tool for armored fiber feeder, central tube and stranded loose tube fiber optic cables and other non-fiber armored cables.
PART#: ACS+ Cable Slitter for Armored & Heavy-Duty Cable
FEATURES:

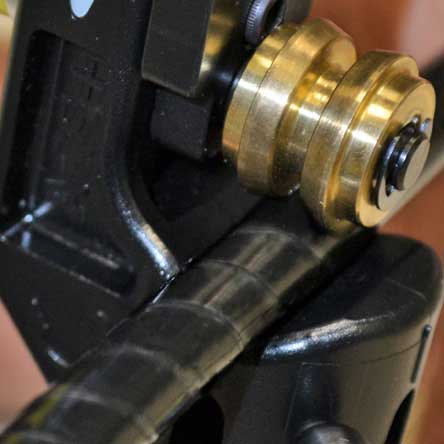

● Single brass roller wheel accommodates cable diameters from 0.157″ to 1.125″ (4 to 28.6 mm)

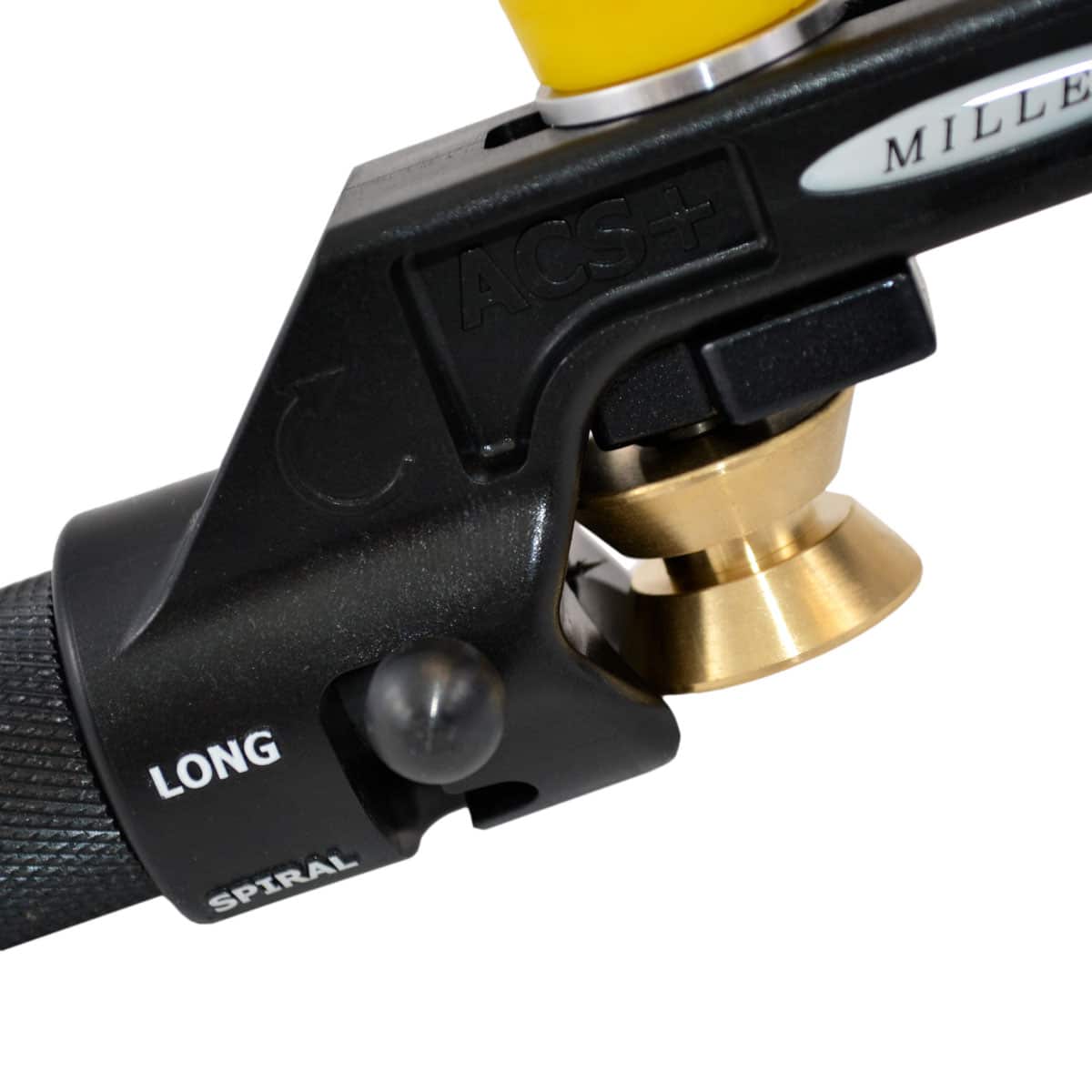

● Ergonomic design features a spring-loaded roller assembly with tension adjustment knob for faster precision cuts

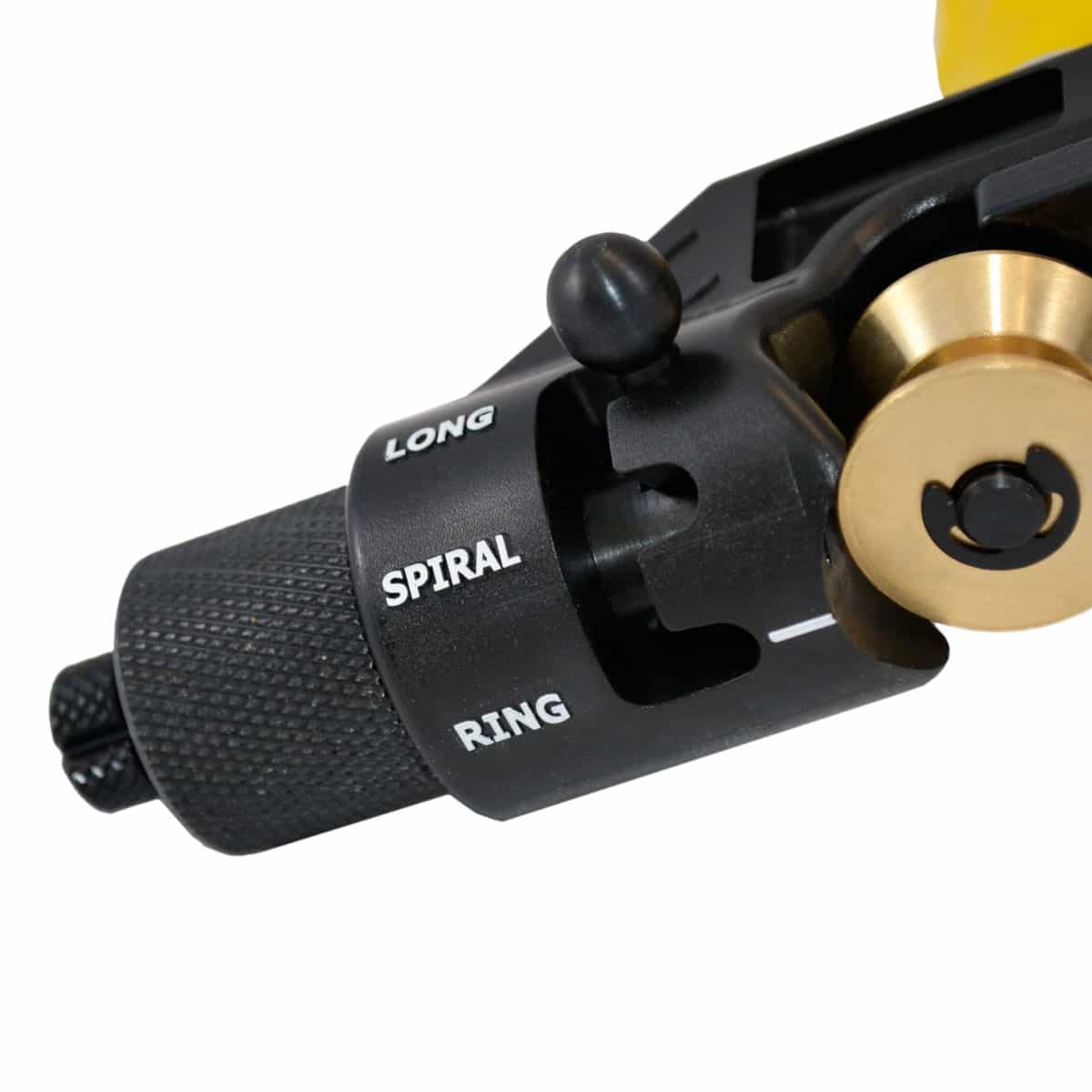

● Performs longitudinal, circumferential (ringing) & spiral cuts
● Replaceable, heavy-duty steel blade is easily adjusted in 0.004″ increments without any additional tools
● Lightweight & glass-reinforced injection molded body has a curved “T” handle design for improved grip & leverage during longitudinal & ring cuts.
OVERVIEW:

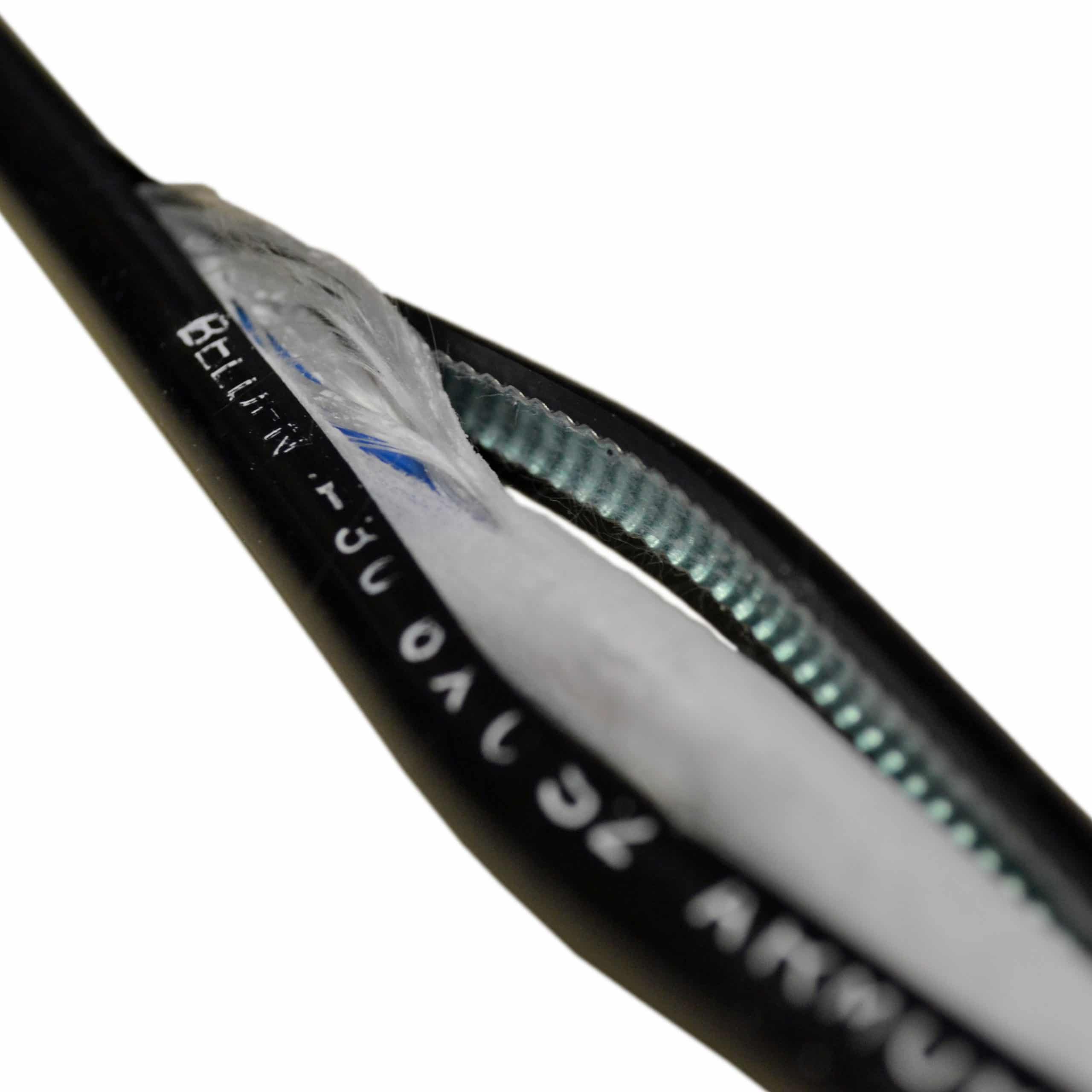

Introducing the patent-pending Miller® ACS Plus – a professional-grade tool that has all the functionality of the trusted Miller® ACS and ACS-2, and then some! Designed for use on armored fiber feeder, central tube & stranded loose tube fiber optic cables, as well as various other non-fiber armored cables, the ACS Plus easily cuts through the polyethylene jacket and corrugated copper, steel or aluminum armor layer in one smooth step.
ACS+ Operating Video Link:
https://www.youtube.com/watch?v=YrOzZxUX29k&t=4s
