Optical Fiber V-groove Alignment Platform
❤ Add to collection

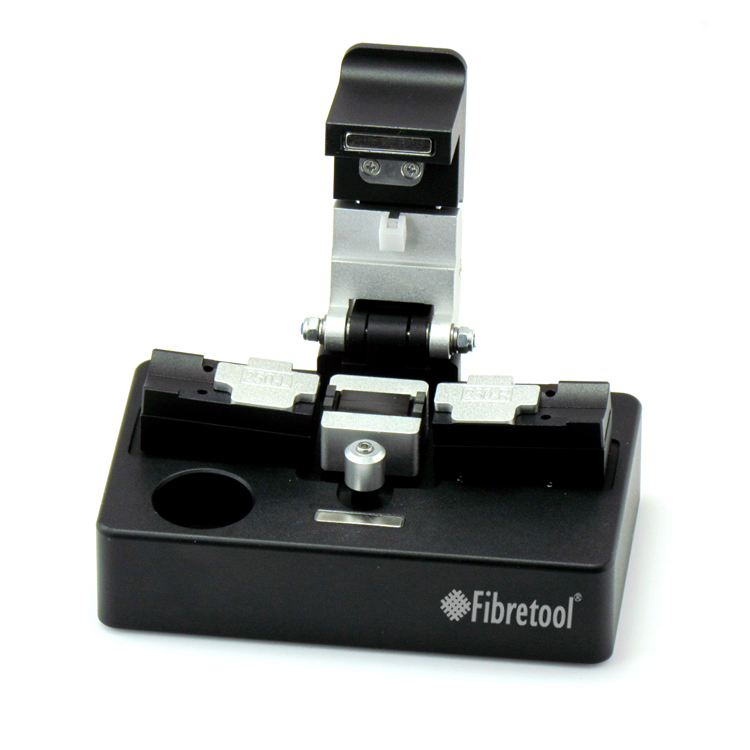

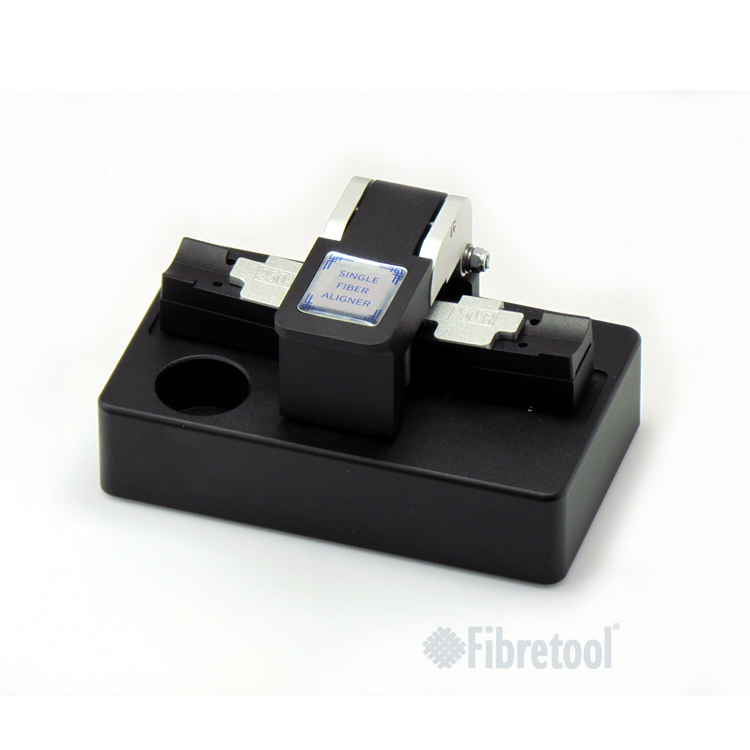

Optical Fiber V-groove Alignment Platform

Single Fiber Mechanical Aligners Temporary Joining Tool for Cladding Diameter 250μm & 400μm Fibers

PART#: AJT-250FA


FEATURES;

● The AJT-250FA fine-tuning fiber alignment platform is a precise V-slot fiber aligner. It is a temporary mechanical fiber splice for fiber and cable connections to test equipment such as OTDRs or fiber optic cable reels.

● AJT-250FA has added fine adjustment function than other V-groove alignment. And the fiber holder is compatible with AFL and Fitel fusion splicers

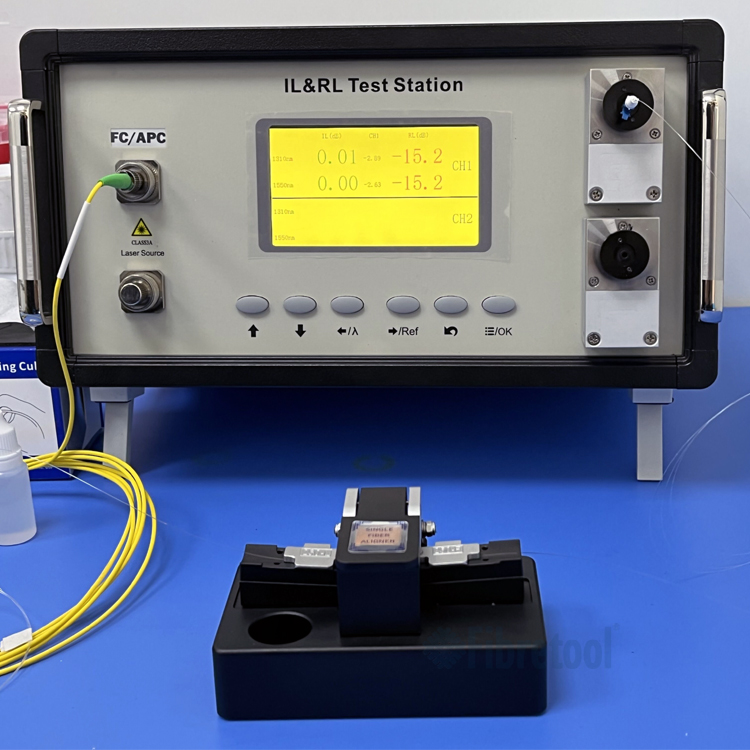

● It has a light source and power meter-based loss measurement and bare fiber reel testing for confirming transmission capability.

● The fibers are prepared for joining by using standard mass fusion fiber preparation tools (fiber holders, hot jacket stripper, and cleaver.) Using the AJT-250FA in conjunction with an OTDR equipped with an optical switch provides rapid one button optical tests of single fiber.


0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description

Single Fiber Mechanical Aligners Temporary Joining Tool for Cladding Diameter 250μm & 400μm Fibers

PART#: AJT-250FA


FEATURES;

● The AJT-250FA fine-tuning fiber alignment platform is a precise V-slot fiber aligner. It is a temporary mechanical fiber splice for fiber and cable connections to test equipment such as OTDRs or fiber optic cable reels.

● AJT-250FA has added fine adjustment function than other V-groove alignment. And the fiber holder is compatible with AFL and Fitel fusion splicers

● It has a light source and power meter-based loss measurement and bare fiber reel testing for confirming transmission capability.

● The fibers are prepared for joining by using standard mass fusion fiber preparation tools (fiber holders, hot jacket stripper, and cleaver.) Using the AJT-250FA in conjunction with an OTDR equipped with an optical switch provides rapid one button optical tests of single fiber.



TECHNICAL SPECIFICATION;


Model

AJT-250FA

AJT-400FA

Applicable Fiber

Silica Glass Optical Fiber (SM & MM)

Fiber Count

Single Fiber

Cladding Diameter

250μm

400μm

Cleave Length

13mm

Insertion Loss

0.01dB (Type Loss), 0.02dB (Max.) @ Telecom Wavelength

Operating Temperature

-10 To +40 ℃

Dimensions (W X D X H)

120(W) X 75(D)x 60(H) Mm

Weight

480 g (not Including Fiber Holders)
