TFS-900-250 900 Micron Buffer Fiber Thermal Stripper
❤ Add to collection

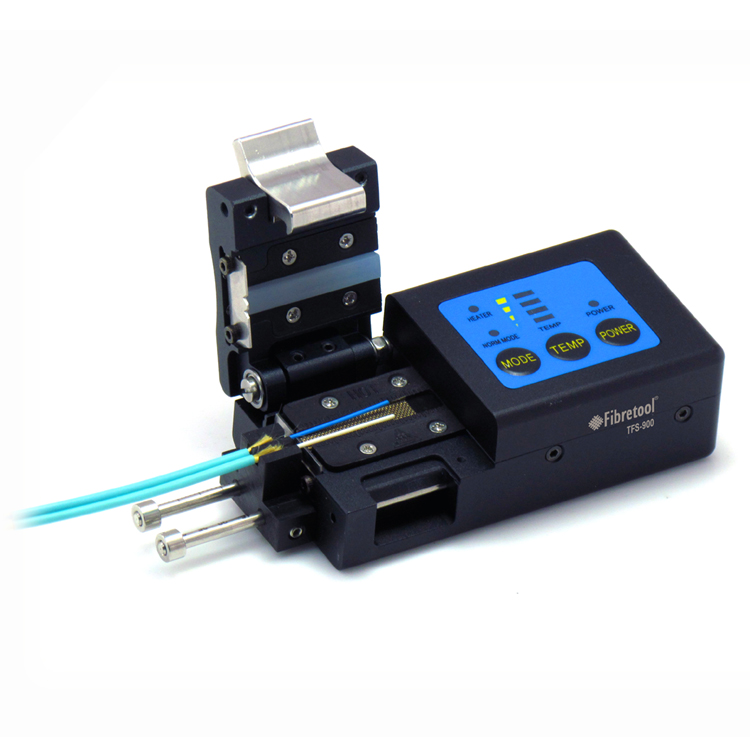

TFS-900-250 900 Micron Buffer Fiber Thermal Stripper

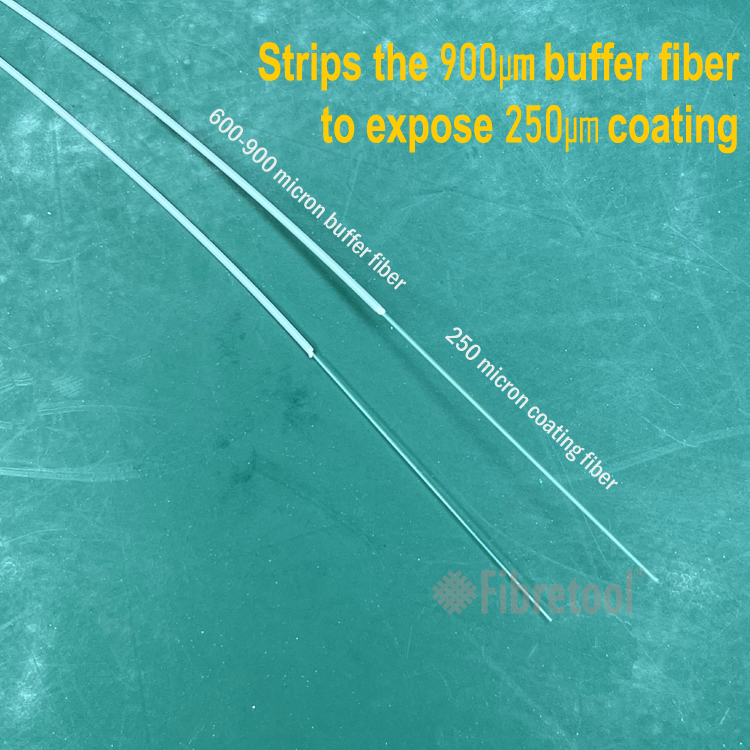

Be used to strips the 600-900µm buffer fiber to expose 250µm coating fiber
PART#: TFS-900-250


FEATURES AND BENEFITS:

● Designed to strip the coating of the dual zip buffer fibers provides quick and easy operation

● Equipped with a heater to heats the coating of fiber to soften it for smooth stripping

● Four temperature modes: 158 to 266 °F (70 to 130 °C), Field Replaceable Blades

● Buffer tube length can be adjustable from 10 to 40mm

● Fast Temperature Stabilization to Reduce Warm-Up Time

● DC12V Power Supply; Lightweight, Shock Resistant

● Portable, Rugged Design

0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description

Be used to strips the 600-900µm buffer fiber to expose 250µm coating fiber
PART#: TFS-900-250


FEATURES AND BENEFITS:

● Designed to strip the coating of the dual zip buffer fibers provides quick and easy operation

● Equipped with a heater to heats the coating of fiber to soften it for smooth stripping

● Four temperature modes: 158 to 266 °F (70 to 130 °C), Field Replaceable Blades

● Buffer tube length can be adjustable from 10 to 40mm

● Fast Temperature Stabilization to Reduce Warm-Up Time

● DC12V Power Supply; Lightweight, Shock Resistant

● Portable, Rugged Design


Product Overview:

TFS-900 900um buffer thermal stripper design small, lightweight, easy to use and reliable, longitudinal peel, peel force is small, the high quality of stripped fiber; blade durable and easy to replace, using linear bearing guide and thermal stripping to ensure no damage to the fiber, easy to strip coating, stripping speed and other characteristics. With the fixture using the strip dual core optical fiber

Specification:

buffer layer stripped length

Up to 40mm

Heating mode

Normal mode


Power saving mode

Temperature setting

This machine is equipped with 70 ° C, 90 ° C, 110 ° C, and 130 °C Fourth gear

Power supply mode

DC12V adapter

Dimensions

120 (L) X 46 (D) X 41.5 (H) mm

Weight

280g

Environmental requirements

Temperature 0-40 ° C temperature is below 85%




1. Both ends of the power adapter connected to AC220V power and thermal stripping power supply interface;

2. The optical fiber according to user needs stripping the fiber length into the fixture

3. To be installed fixture into the fixture of the good fiber mat

4. Open hot stripping power supply, press the power button for about one second until the power indicator light

5. Temperature transferred to the 2 or 3rd gear;

6. Hot stripping pressure fiber cover to cover in turn covered and left;

7. Waiting for the heat indicator reaches the preset temperature indicator turns green;

8. Stripping fiber: hand hold down the right part of the uniform, the left hand force pull to the left part;

   Special note: need to do the window stripping the left part of the clamp can not be opened in place, should stay at 3-5mm coating and optical fiber connected to.

9. Left cover, followed by open pressure-fiber cover, remove the fixture with a fiber, please note that each peel after do not forget to remove the coating peeling;



10. With a purity of more than 99 percent of the alcohol-soaked gauze clean the fiber direction of the arrow

11. With a finger flick fiber top, so that the fiber does not overlap neatly arranged

12. Hold down the power button 4-5 seconds after the release, the power LED is off, turn off the power, unplug the power adapter.

     used the gauze please do not re-use; Please note that the fiber top stabbed a finger.
