PART#: FBT-800
Fibretool offers advanced, field-proven fiber stripping machines for efficient processing of coated, buffered, and jacketed glass fiber.

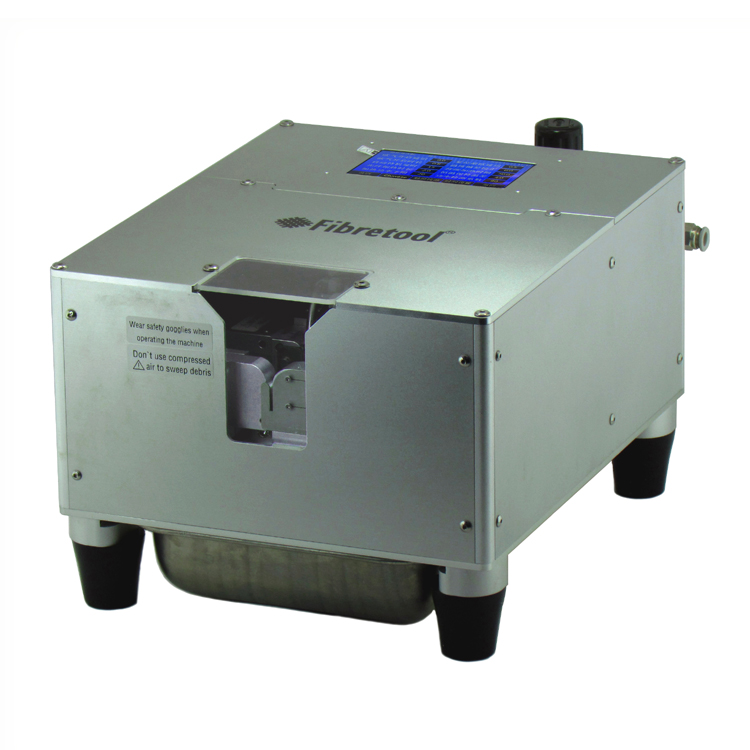

The FBT-800 is a pneumatic fiber stripping machine specifically designed for buffer, coating stripping of optical fiber cables and ribbon fibers. The compact machine strips lengths from 5 up to 35 mm with extremely fast cycle times. Absolute precision, high cost effectiveness, and fast return on investment are the main characteristics of this machine.
FEATURES AND BENEFITS:

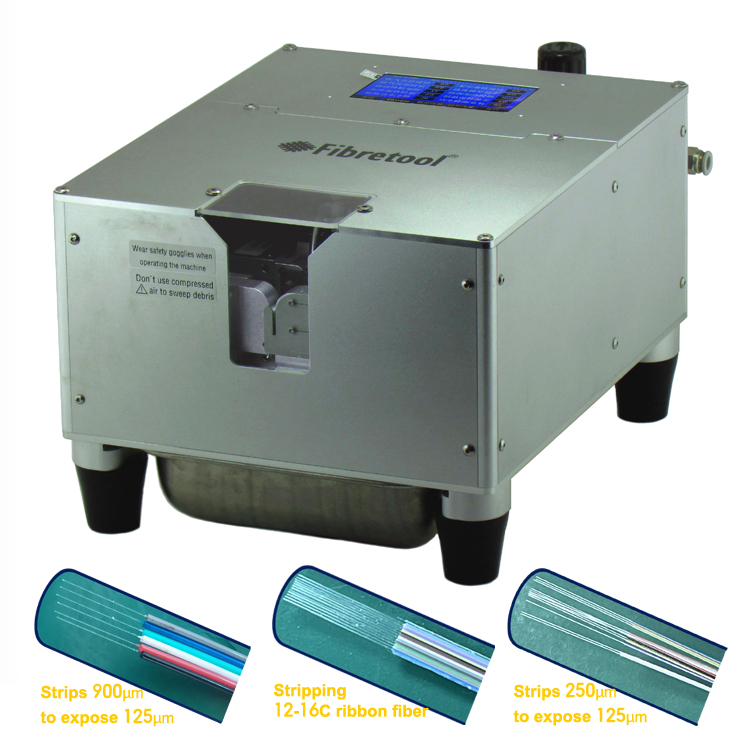

● Precise stripping from 900 micron buffer down to 125 micron cladding, and stripping 4-5 pieces buffer layer in one cycle, also available for the loose and tight buffer fiber cables.
● Precise stripping 12-16C ribbon fibers.
● Precisely stripping discrete 250μm bare fibers up to 20 pieces at one time.
SPECIFICATIONS
Model | FBT-800 |
Applicable Range | Ribbon fibers, 600 ~ 900μm buffer fiber |
Strip Length | 5 ~ 35 mm |
Cycle Time | approx. 5 ~ 7 s |
Compressed Air Connection | 5 - 7 bar (75 - 105 psi) |
Power Supply | 110-240 Vac, 50-60 Hz, 1.2A |
Dimensions (W X D X H) | 225(W) X 140(D)x 128(H) mm |
Weight | 4.20 Kg |
CE Conformity | fully complies with all CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
