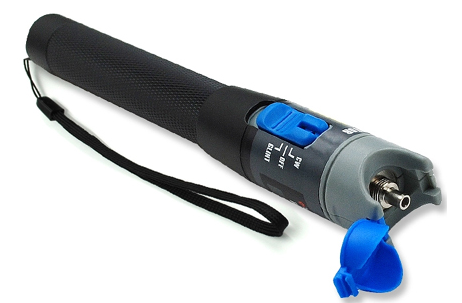

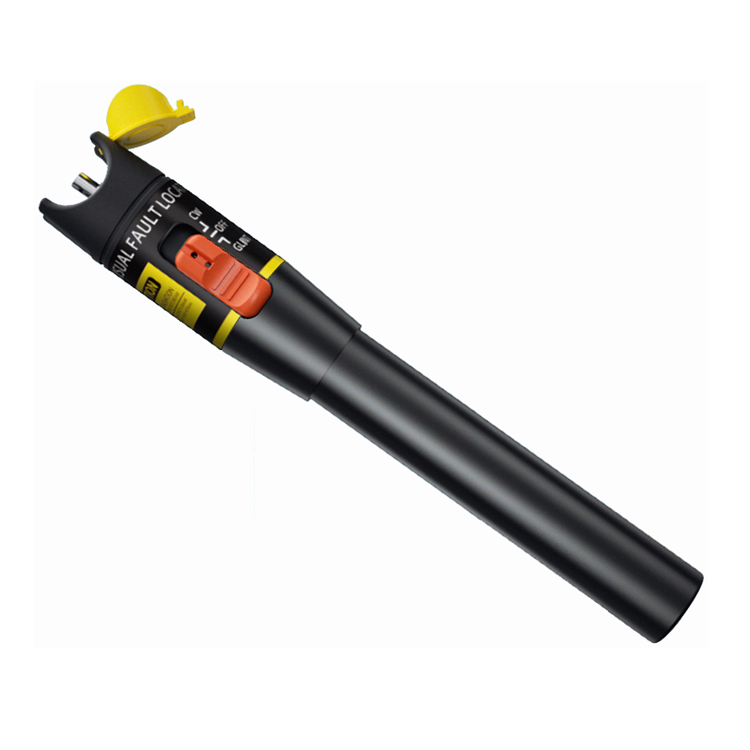

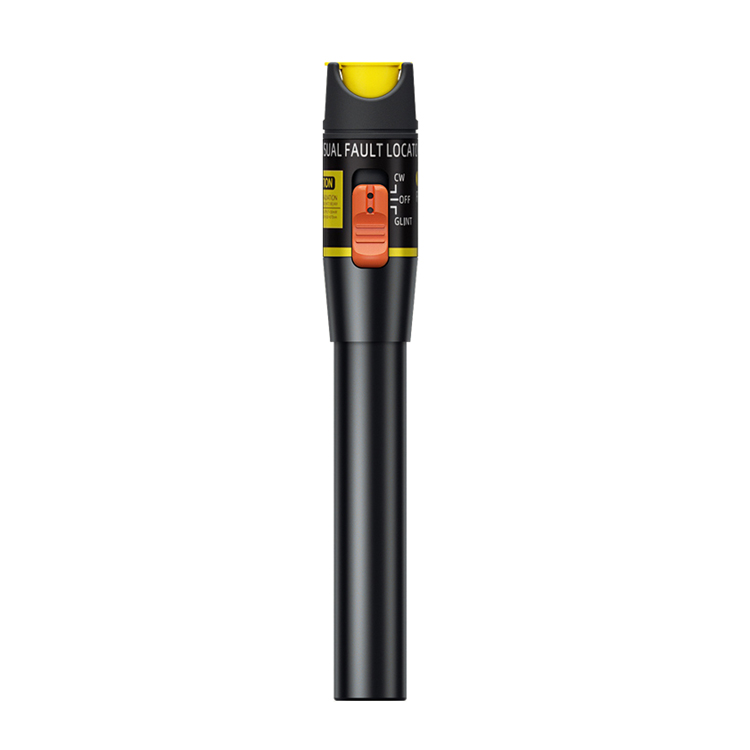

VFL-16 Visual Fault Locator
❤ Add to collection

VFL-16 Visual Fault Locator

Fault Locators are a special class of light soures that emit a high intensity visible Red Laser into a patch cord or cable. This light can be used to both check the continuity of a fiber and identify the fiber’s far end, or it can be used to visually identify the location of a fiber break. Most Fault Locators come optimized for singlemode fiber use; however they worke equally as well with multimode fiber.

- Quickly and easily locate damages in optical fiber
- Operates either in CW or Pulsed
- 2.5mm Universal connector (1.25mm adapter available)
- High powered laser (5mW) for single-mode(>7km) and multi-mode (>5km) connectors
- Soft-sided carrying case with belt loop
- Compact, ergonomic design for ultimate portability
- Protective rubber end cap
￥0.00
0.00
￥0.00
￥0.00
Weight：0.00KG
Description
Fault Locators are a special class of light soures that emit a high intensity visible Red Laser into a patch cord or cable. This light can be used to both check the continuity of a fiber and identify the fiber’s far end, or it can be used to visually identify the location of a fiber break. Most Fault Locators come optimized for singlemode fiber use; however they worke equally as well with multimode fiber.

- Quickly and easily locate damages in optical fiber
- Operates either in CW or Pulsed
- 2.5mm Universal connector (1.25mm adapter available)
- High powered laser (5mW) for single-mode(>7km) and multi-mode (>5km) connectors
- Soft-sided carrying case with belt loop
- Compact, ergonomic design for ultimate portability
- Protective rubber end cap
Specifications:

Type

VFL-16S; VFL-16M; VFL-16L; VFL-16T

Wavelength

650 nm

Emitter type

laser

Output power

5.0mW; 10mW; 30mW.max.

Distance range

>7 km(single-mode)



>5km(multi-mode)

Operation mode

Pulsed and CW

Laser Safety Class

2

Connector Type

universal 2.5mm adapter

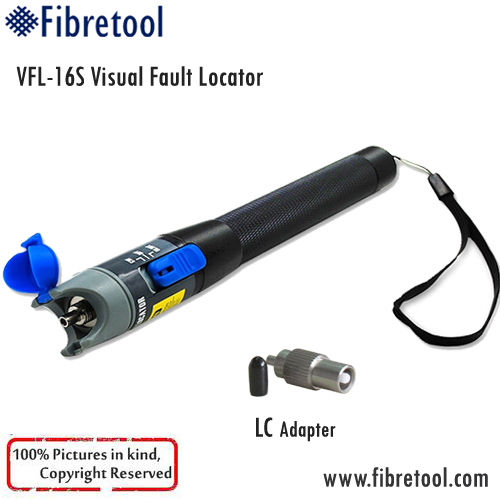

Optional 1.25mm adapter

Controls

on/off, continuous/flashing

Power supply

2 AA alkaline batteries

Battery life

>40 hours in continuous mode

Dimensions(H X W X D)

175mm x 26mm x 26mm

Weight(with batteries)

160g



Ordering Information:
VFL-16S      650nm, 5mW output power Visual fault locator
VFL-16M     650nm, 10mW output power Visual fault locator
VFL-16L         650nm, 20mW output power Visual fault locator
VFL-16T      650nm, 30mW output power Visual fault locator
