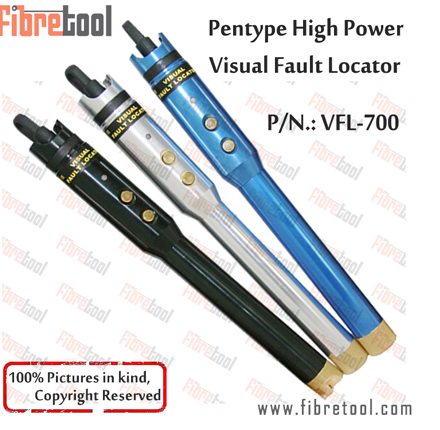

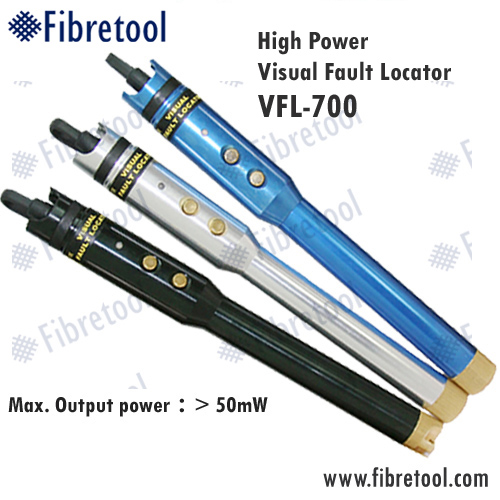

High Power Fiber Optic Visual Fault Locator VFL-700
❤ Add to collection

High Power Fiber Optic Visual Fault Locator VFL-700

- The VFL-700 is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.

- It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables. Finding the faults of OTDR

Key Feature
- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life (up to 30 hours)
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Burning testing to ensure the reliability.
- Portable and rugged, easy to use.
￥0.00
0.00
￥0.00
￥0.00
Weight：0.00KG
Description
- The VFL-700 is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation.

- It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables. Finding the faults of OTDR

Key Feature
- 2.5mm universal connector
- Operates either in CW or Pulsed
- Constant output power
- Lower Battery warning
- Long battery life (up to 30 hours)
- Crash-proof and dust-proof design for laser head
- Laser case ground design prevents ESD damage
- Burning testing to ensure the reliability.
- Portable and rugged, easy to use.
Specifications:

Type

VFL- 700

Wavelength

650 nm

Emitter type

FP-LD

Output power

10; 20; 30; 40; 50 mW max.

Operation mode

Pulsed and CW

Laser Safety Class

2

Connector Type

universal 2.5mm adapter



Optional 1.25mm adapter

Controls

on/off, continuous/flashing

Power supply

2 AA alkaline batteries

Battery life

>30 hours in continuous mode

Dimensions(H X W X D)

Ø15* 180mm

Weight(with batteries)

140 g



Ordering Information:






VFL-700A :   650nm, 10mW Output power, Visual Fault Locator
VFL-700B :   650nm, 20mW Output power, Visual Fault Locator
VFL-700C :   650nm, 30mW Output power, Visual Fault Locator
VFL-700D :   650nm, 40mW Output power, Visual Fault Locator
VFL-700E :   650nm, 50mW Output power, Visual Fault Locator
