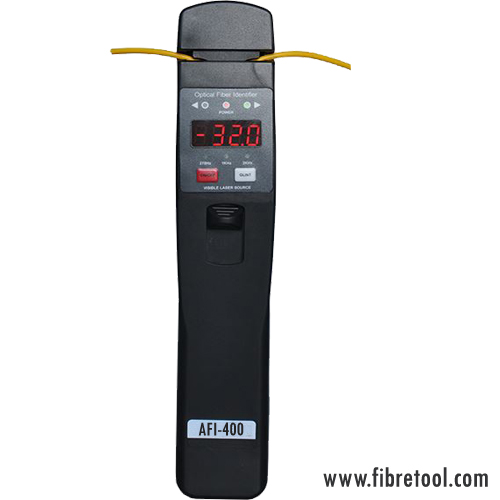

AFI-400 Optical Fiber Identifier
❤ Add to collection

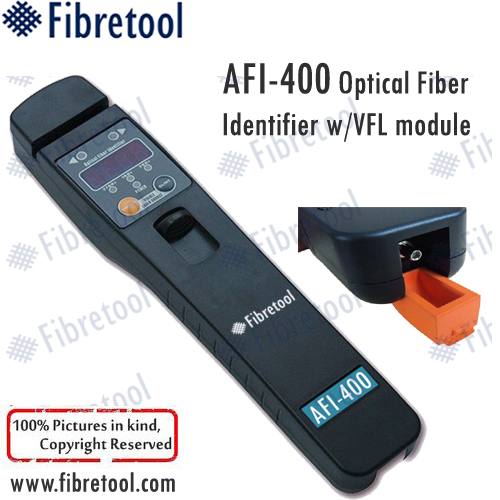

AFI-400 Optical Fiber Identifier

AFI-400 Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber. Meanwhile it also has Visual Fault Locator module with fault location function. It is the ideal instrument for online test.

Function
1.Indicate the signal directions and power in fiber;
2.Indicate the signal presence or absence(Live or dark fiber);
3.Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;
4.Displays the relative core power ;
5.Easy-to-replace adaptors;
6.Lower power indication；
7.Build in VFL function.
￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Description
AFI-400 Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification work, can be detect in any location of both SM and MM fiber. Meanwhile it also has Visual Fault Locator module with fault location function. It is the ideal instrument for online test.

Function
1.Indicate the signal directions and power in fiber;
2.Indicate the signal presence or absence(Live or dark fiber);
3.Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) with audible warning;
4.Displays the relative core power ;
5.Easy-to-replace adaptors;
6.Lower power indication；
7.Build in VFL function.

Specifications

Range Identified Wavelength Range

750nm-1700nm

Insertion Loss

1.0dB

Fiber Type

＜3mm Fiber

Identified Signal Type

270Hz/1KHz/2KHz

Display Type

 LED

Detector Type

1mm InGaAs

Minimum detection power

-35dBm(1550nm)
-30dBm(1310nm)

Center Wavelength

650nm

Output Power

10mW

Alkaline Battery

 2*AA

Battery Life

＞60H

Operating Temperature

0~+50℃

Storage Temperature

-20~+60℃

Weight

200g

Dimension

230*43*48mm

other Functions

Power Measurement

Auto-off function
