Field Fiber Optical Cleaver
❤ Add to collection

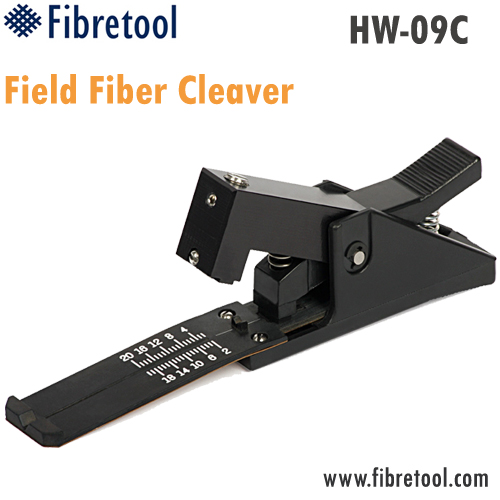

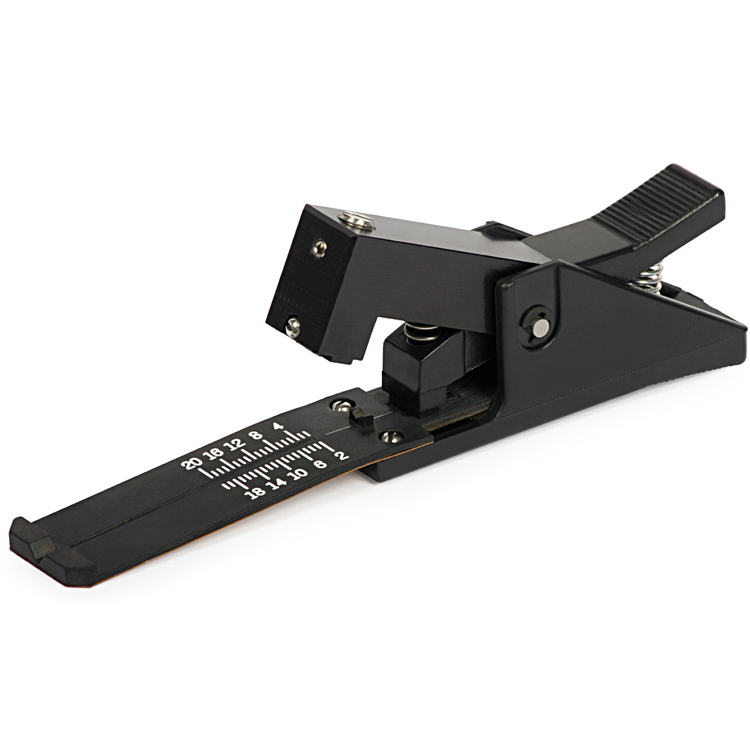

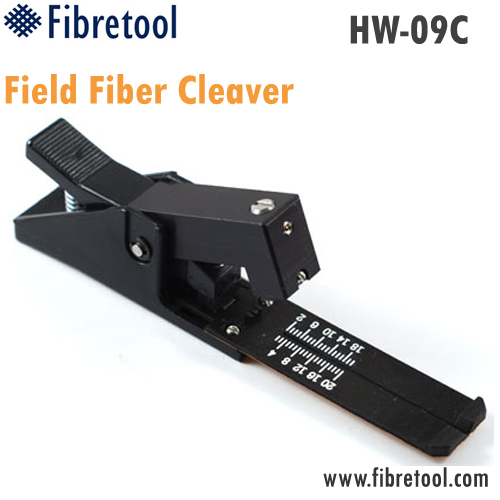

Field Fiber Optical Cleaver

PART#: HW-09C

FEATURES AND BENEFITS:

● Designed for Silica Glass Fiber (core and clad) 80µm to 200µm

● 900µm Buffer or 250µm Coated fiber

● Cleave Length 2 to 20mm

● Length: 4.84 in (124.00 mm);   Height: 0.78 in (20.00 mm)

● Width: 1.56 in (40.00 mm);  Weight: 2.1 ounces (60.0g)




￥0.00
0.00
￥0.00
￥0.00
Weight：0.00KG
Description

PART#: HW-09C

FEATURES AND BENEFITS:

● Designed for Silica Glass Fiber (core and clad) 80µm to 200µm

● 900µm Buffer or 250µm Coated fiber

● Cleave Length 2 to 20mm

● Length: 4.84 in (124.00 mm);   Height: 0.78 in (20.00 mm)

● Width: 1.56 in (40.00 mm);  Weight: 2.1 ounces (60.0g)




Description:

The Fibretool HW-09C is a single fiber cleaver designed to accommodate either 900µm buffered or 250µm coated fiber.

The HW-09C cleaver's quick and easy three-step operation is well suited for mechanical splice and quick termination field connector applications.

The leaf spring base is ruled to allow for cleave lengths of 2 to 20mm. The standard carbide blade will perform up to 6000 cleaves before replacement.
