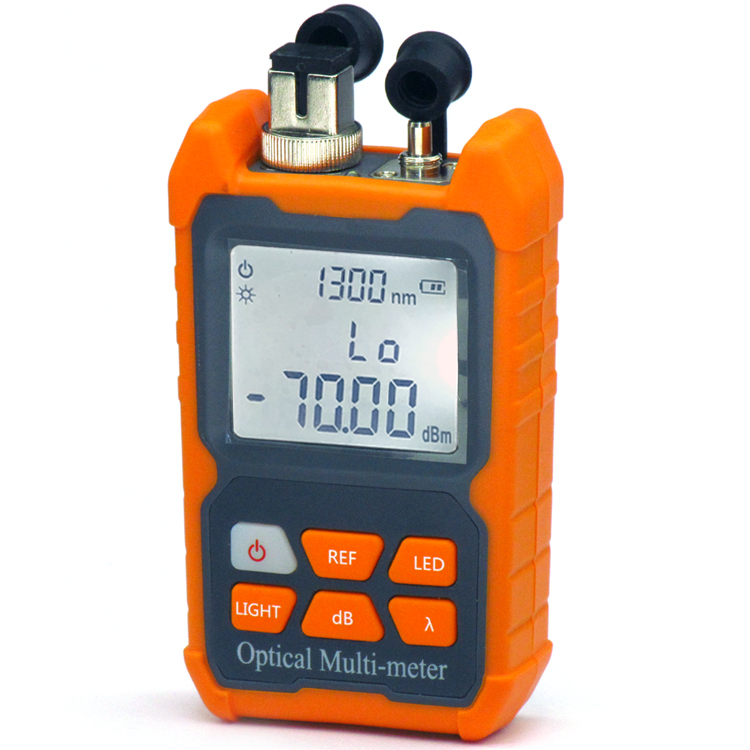

2-IN-1 Compact Optical Power Meter and VFL
❤ Add to collection

2-IN-1 Compact Optical Power Meter and VFL

PART#: MT-200


Use A 650 nm VFL fault finding laser is an option for the OMT-200 optical power meter. Compared to a conventional VFL pen, advantages include less equipment to carry, long battery life and additional connector safety & flexibility.



FEATURES;


● Large LCD display with backlight function


● The funation of both optical power meter and VFL

● 3xAAA batteries or AC adapter power supply

● Compact size, Portable and rugged, Easy to use


● Optional Interchangeable Universal 2.5&1.25mm adaptor

￥0.00
0.00
￥0.00
￥0.00
Weight：0.000KG
Description

PART#: MT-200


Use A 650 nm VFL fault finding laser is an option for the OMT-200 optical power meter. Compared to a conventional VFL pen, advantages include less equipment to carry, long battery life and additional connector safety & flexibility.



FEATURES;


● Large LCD display with backlight function


● The funation of both optical power meter and VFL

● 3xAAA batteries or AC adapter power supply

● Compact size, Portable and rugged, Easy to use


● Optional Interchangeable Universal 2.5&1.25mm adaptor

SPECIFICATIONS;

Type

MT-200A

MT-200C

Wavelength（nm）

800～1650

Detector

InGaAs

Optical Connector

FC SC ST/ Universal 2.5mm adaptor (LC、MU can be optional )

Measurement  Range（dBm）

-70～+10

-50～+26

Uncertainty

±5%

ibrated Wavelength(nm)

850、1300、1310、1490、1550、1625

Resolution(dB)

0.01






VFL Module

Emitter Type

FP-LD

Wavelength (nm)

650/635

Optical Connector

FC/SC/ST

Output Power (mw)

≥ 1 or 10mW

Modulation Frequencies

CW,2Hz

Fiber Type

SM / MM

working time (h)

40

Power Supply

3pcs  AAA 1.5V batteries

working time(h)

120

Operating Temperatrue(℃)

-10～+50

Storage Temperatrue(℃)

-20～+70

Automatic shutdown（min）

10

Dimension（mm）

125*65*29mm

Weight（g）

160g



ORDERING INFORMATION;


MT-200A-1: Power Meter with 1mW 650nm VFL and 0.01dB Resolution

MT-200A-10: Power Meter with 10mW 650nm VFL and 0.01dB Resolution

MT-200C-1: CATV Power Meter with 1mW 650nm VFL and 0.01dB Resolution

MT-200C-10: CATV Power Meter with 1mW 650nm VFL and 0.01dB Resolution
