HW-320 Precision V-Groove Fiber Alignment Tool
❤ Add to collection

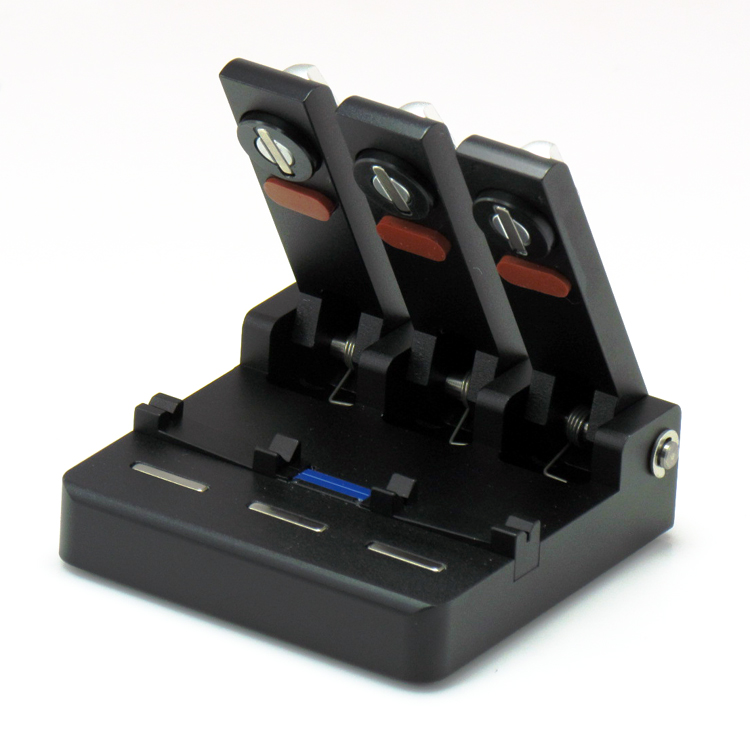

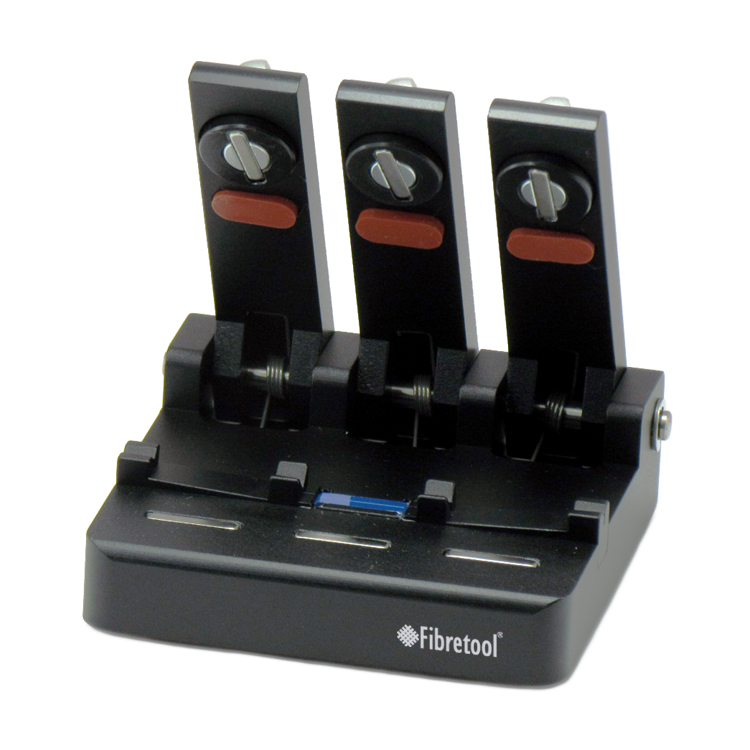

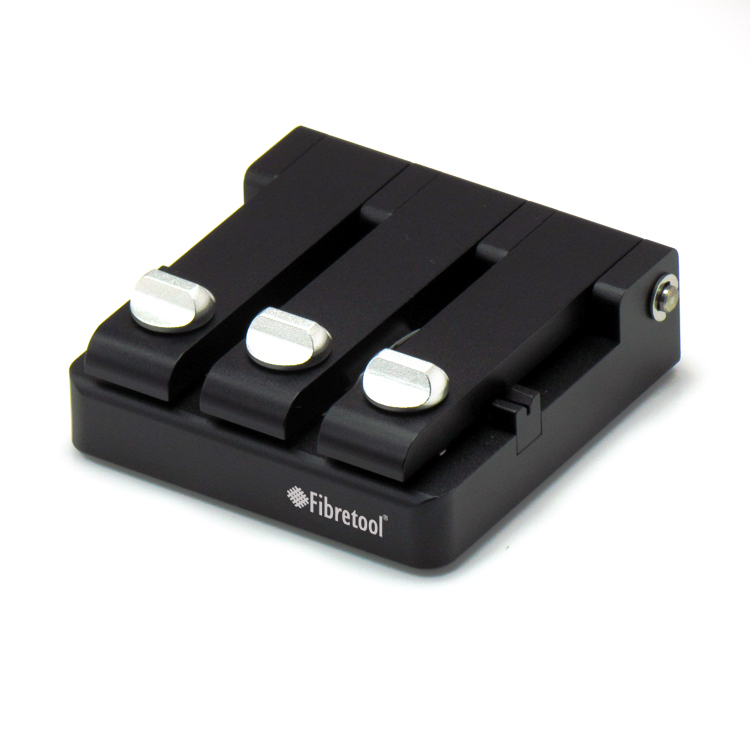

HW-320 Precision V-Groove Fiber Alignment Tool

PART#: HW-320


FEATURES;


● HW-320 locates fiber with high precise V-groove and makes two fibers align, the loss less than 0.5dB(SSM).

● The two adjustable site-seats can be applied to all kinds of coated fibers.

● Dimension: 80mm(W) x80mm (D) x25mm (H) - Weight:370

● Applicable Fibers:  SM, MM, DS, NZ-DS optical fibers.

● Fiber Type:  Single fiber 0.25mm-0.9mm coating diameter,  0.125mm clad diameter.

● Average Loss:   SM fiber 0.5dB， Precision V-groove for easy cleaning.

Operation(step by step);

1. Stripping the fibers

2. Cleaning the fibers

3. Cleaving the fibers

4. Aligning the fibers in V groove
