SPECIFICATIONS; Component
Arguments
Value

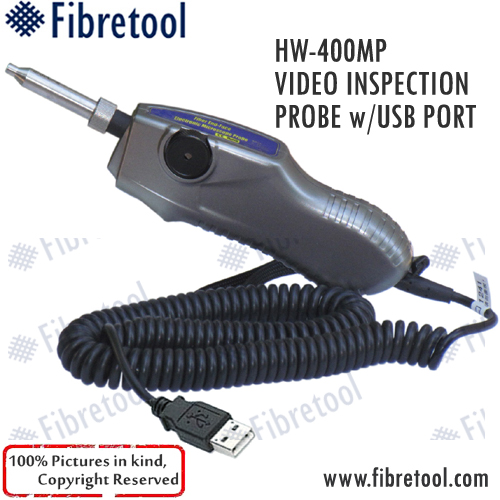

HW-400MP Probe
Magnification Ability
400X
Resolution(μm)
<1μm
View of Field(mm)
0.8500*0.4750 (Based on 14Inch laptop)
CCD Sensor
1/3, 600Line
LxWxH Size(mm)
165*28*40
Weight(Kg)
0.15
Storage Temperature
-18℃-35℃
USB port
Support
1.0/2.0
EFD Data
Analyze Software
Verification of Fiber end face quality,
pass or fail judgment based on standard international criteria or customize.
PDF or Excel Report file generated to
have scratch, spot etc defects measured and counted around the fiber end
face.
Analyze Support in image, video and
real-time inspection.
Single way of focus control, a simple flip of wheel back and forth to operate.
Precise cone contact to reach 98% alignment consistency.
400× Magnification Ability,<1μm Resolution.
Digital sensor inside the probe to access the laptop or PC directly.
EFD Data Analyze Software for end face quality pass/fail judgment based on different IEC/IPC criteria or customize
35 assorted of tips available to have both PC and APC end face inspection.
60°angled tips to test connectors mounted in hard-to-access places or bottom of patch panel.
Ability to inspect MPO/MTP etc PC and APC multiple cores end face.
Stable for 8 hrs above continuous work with less than 3% failure.
