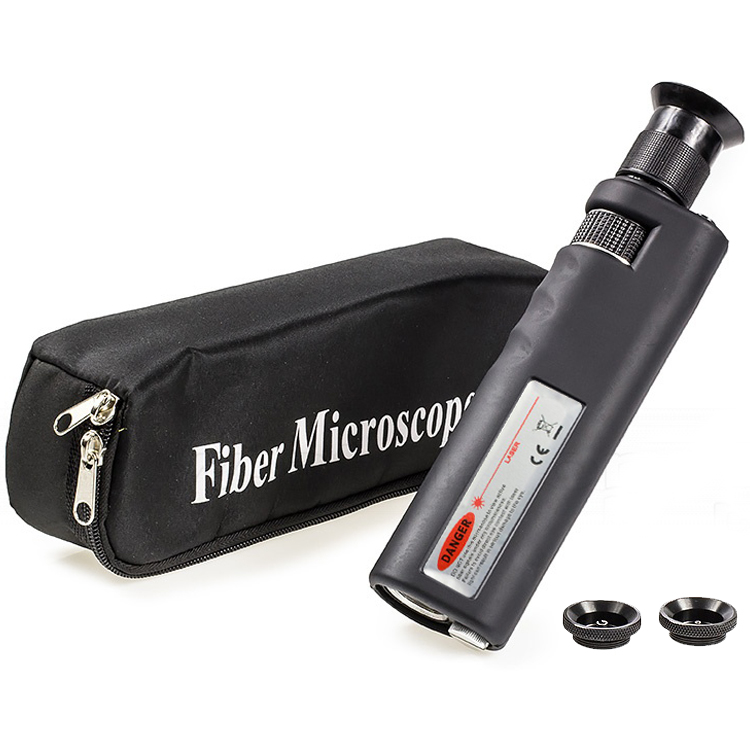

These low cost,high quality microscopes are available in 200x or 400x magnification,and utilize white LED light to provide coaxial illumination of connector end-faces. Three “AAA” batteries provide more than 40 hours of use before battery replacement is required.Provide with a universal 2.5mm adapter,wtih other connector styles available. Dimension: 8.76”L×2.16”H
- Light source:3*AAA batteries
- Controls:momentary on/off switch for light source and fine force control wheel
- Adapter interface:interchangeable for 2.5mm(SC,ST,FC) and 1.25mm(LC,MU) ferrule connector
- Optional Adapters:
• 2.5mm APC Univesal Adapter(Used for SC/APC, FC/APC, ST/APC)
• 1.25mm LC/APC connector adapter
The HW-400XA fiber optic microscope utilizes a white light LED for coaxial illumination.Light is introduced into the optical path (axis) so that it comes out the tip of the objective lens and strikes the ferrule perpendicular to the end face.This method of illumination produces a high level of resolution providing excellent detail of scratches and contamination.
PART# DESCRIPTION
HW-400XA 400x Microscope w/2.5mm & 125mm adapter
HW-200XA 200x Microscope w/2.5mm & 125mm adapter
