PART#: FPM-100

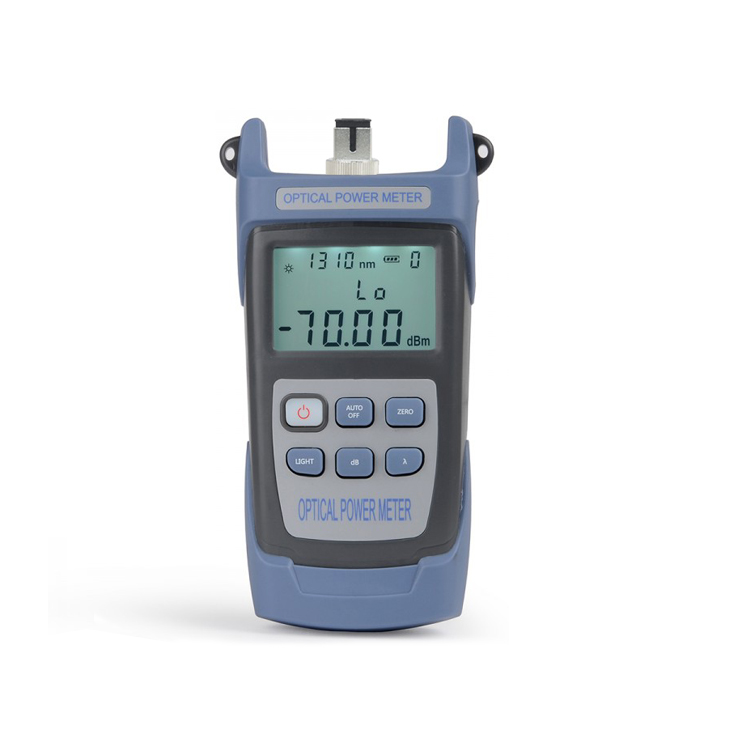

A power meter is the essential tool for measuring optical power within a fiber optic link. FPM-100 optical power meter is a precise, durable, convenient, portable test instrument. Smart appearance with the backlight, auto-shutdown features, the wide range of optical power testing, test the accuracy of precision as well as a common interface design with 0.01dB resolution. Standard units test from -70dBm to +10dBm, and CATV units test from -50dBm to +26dBm.
FEATURES;
● High sensitivity, large dynamic range
● Special universal connector interface FC/SC/ST
● Quick starting, without warm-up and reducing testing time
● Low-voltage display function
● Optional auto-shutdown feature
● Automatic calibration function
● The relative ratio test
● Large LCD display and backlight
APPLICATION;
● Maintenance Telecom
● Maintenance CATV
● Test Lab of Fiber Optic
● Optical fiber sensors
TECHNICAL SPECIFICATION;
Type | FPM-100A | FPM-100C | |
Wavelength(nm) | 800~1650 | ||
Detector | InGaAs | ||
Optical Connector | FC SC ST/ Universal 2.5mm adaptor (LC、MU can be optional ) | ||
Measurement Range(dBm) | -70~+10 | -50~+26 | |
Uncertainty | ±5% | ||
ibrated Wavelength(nm) | 850、1300、1310、1490、1550、1625 | ||
Resolution(dB) | 0.01 | ||
Power Supply | 3pcs AA 1.5V batteries | ||
working time(h) | 120 | ||
Operating Temperatrue(℃) | -10~+50 | ||
Storage Temperatrue(℃) | -20~+70 | ||
Automatic shutdown(min) | 10 | ||
Dimension(mm) | 210*110*60mm | ||
Weight(g) | 300g |
