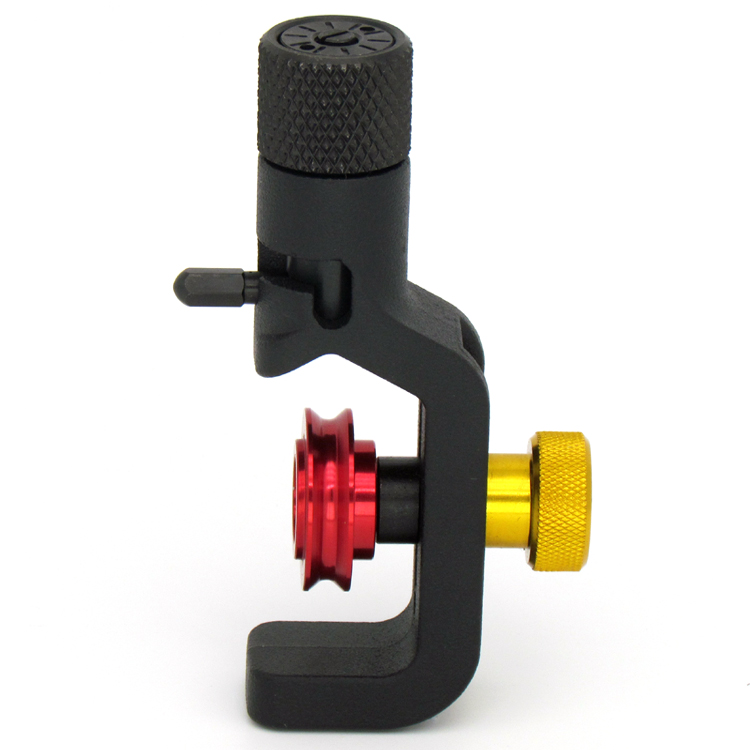

ACS-20 Armored Cable Slitter
❤ Add to collection

ACS-20 Armored Cable Slitter

PART#: ACS-20


Professional grade tool, ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber Feeder, Central Tube, Stranded Loose Tube fiber optic cables and other armored cables


FEATURES AND BENEFITS:

● Versatile design allows jacket or shield slitting on non-fiber optic configurations as well


● Tool slits outer polyethylene jacket and armor in one operation

● Performs longitudinal slitting and circumferential (ringing) for end stripping

● Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting)

● Adjustable from 0.157” (4 mm) to 0.393” (10 mm) cable O.D.

● Adjustable blade depths to accommodate different cable coverings

● “Roller” style cable follower provides cable stability and allows for easier tool movement along the cable


￥0.00
0.00
￥0.00
￥0.00
Weight：0.00KG
Description

PART#: ACS-20


Professional grade tool, ideal for slitting the corrugated copper, steel or aluminum armor layer on Fiber Feeder, Central Tube, Stranded Loose Tube fiber optic cables and other armored cables


FEATURES AND BENEFITS:

● Versatile design allows jacket or shield slitting on non-fiber optic configurations as well


● Tool slits outer polyethylene jacket and armor in one operation

● Performs longitudinal slitting and circumferential (ringing) for end stripping

● Blade rotates 90 degrees by activating blade lever, allowing easy mid-span preparation (ringing and slitting)

● Adjustable from 0.157” (4 mm) to 0.393” (10 mm) cable O.D.

● Adjustable blade depths to accommodate different cable coverings

● “Roller” style cable follower provides cable stability and allows for easier tool movement along the cable


Description
- Professional-grade tool ideal for slitting the armor layer on fiber feeder, central tube & stranded loose tube fiber optic cables, as well as various other non-fiber armored cables
- Versatile design features a guide wheel for stability to accurately slit the outer polyethylene jacket & armor in one step
- Performs longitudinal slitting & circumferential (ringing) stripping on cable ends
- Red guide wheel blade lever activation rotates the blade 90° to easily prepare cable mid-spans.

Specifications

Cable Access

Mid-Span, End

Min. Cable Outer Diameter

0.157″ (4 mm)

Max. Cable Outer Diameter

0.393″ (10 mm)

Adjustable Blade Depth

Up to 0.22″ (5.5 mm)

Cable Material

Armored Corrugated Copper,

Armored Steel, Armored Aluminum

Guide Wheel Color

Red

Length

5″ 127 mm)

Weight

10 oz (284 g)

Replacement Blade Part #

RB-ACS-20
