Description

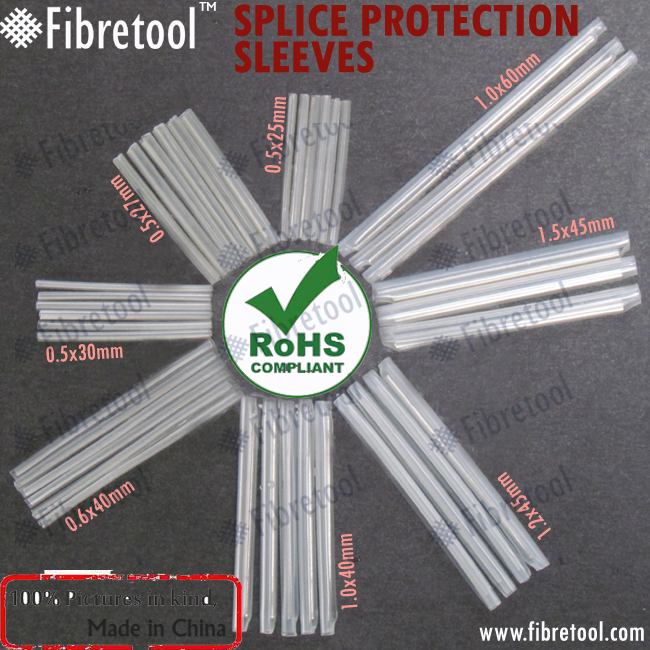

Fibretool offers a wide selection of fiber protection sleeves to meet any application. The standard sleeve series is the industry standard for durable and lasting protection of single fiber splices in field installations. while the ribbon protection sleeve provide these same perfor-mance levels for 8/12 fiber ribbon respectively.

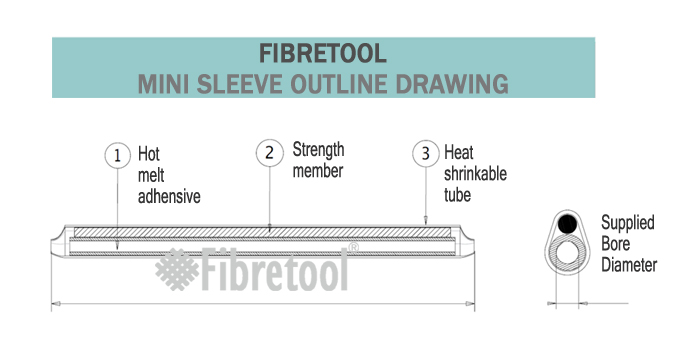

The Fibretool MICRO and MINI series are specially designed for optical components, where small packaging is a priority. These micro sleeves provide the known reliability of Fibretool sleeves in the smallest possible lengths. This easy and cost effective method is a great alternative to recoating.

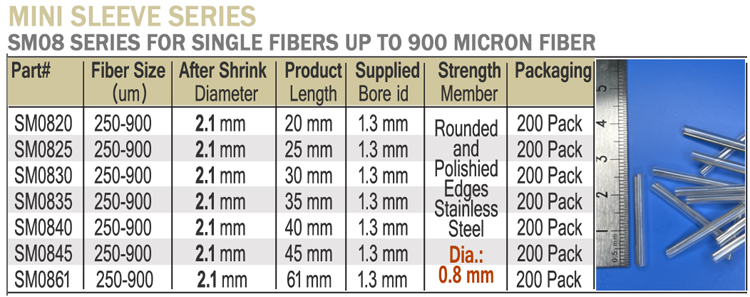

The Fibretool SM05 and SM08 series offer a wide range of options to accommodate various coating sizes, and are manufactured in a variety of lengths. This gives great flexibility in designing optical modules.

Features:

■ Provides Maximum Lasting Protection of Fiber for Splicing in Any Application

■ Variety of Single and Multi-Fiber Sleeves

■ Durable Tempered SUS Stainless Steel Reinforcement Rods with Rounded and Polished Edges

■ TELCORDIA (SGS) Standard GR-1380-CORE Certification

■ Outer Tube Meets SAE AMS-DTL-23053/5 Class 2

■ Inner EVA Meltable Adhesive Tube

■ Close Dimensional Tolerances

■ RoHS and Reach Compliant

■ Clear (transparent) outer Tube

■ Varied size, length and color are available for option

■ Working temperature : -45 ~ 110 ℃

■ Stocked for immediate delivery.
