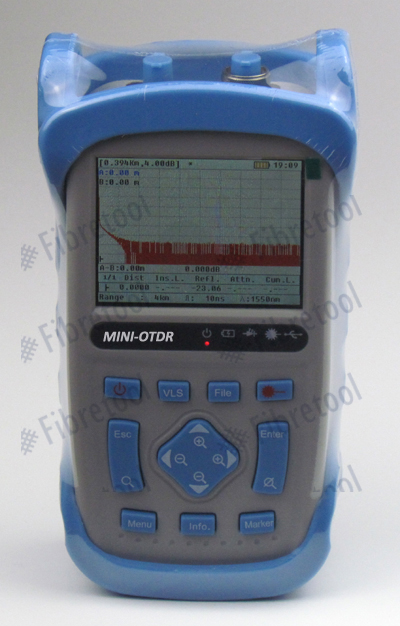

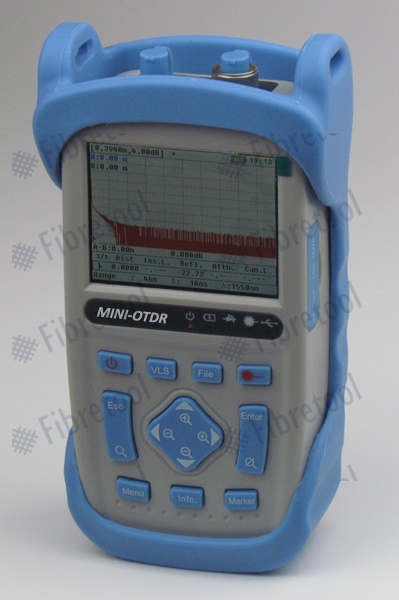

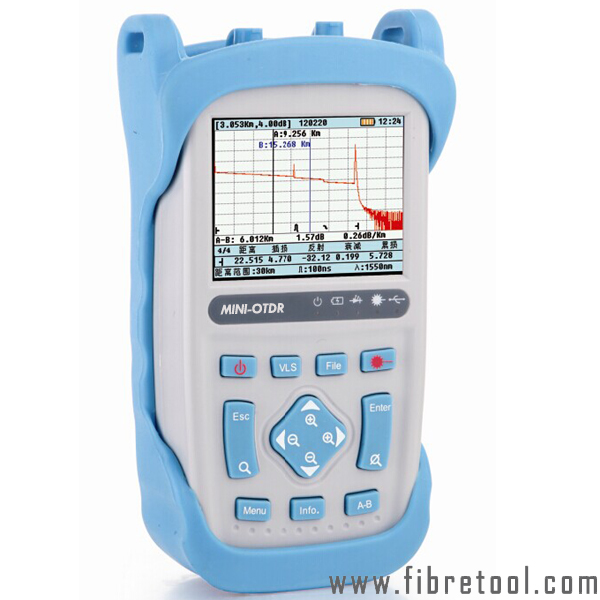

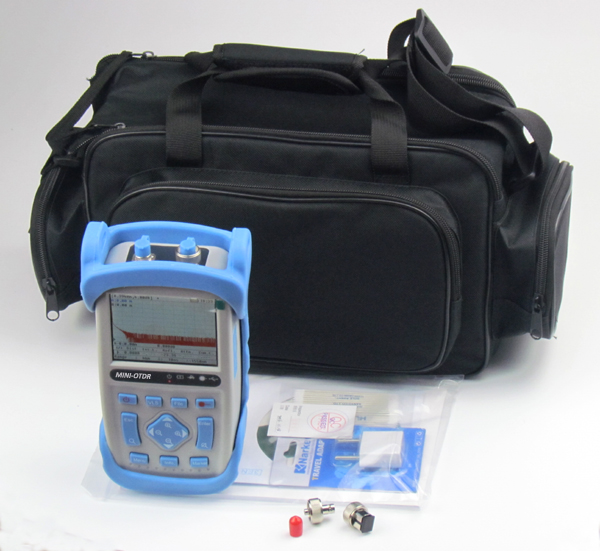

HW-358T Fibretool Mini Hand Held OTDR

PART#: HW-358T

FEATURES



> Hand-held design, compact and lightweight; Anti-seismic, shockproof and appropriate for field operation.

> Starting in 3 seconds and measuring immediately

> Automatic and manual test function

> Low-power design, optional lithium battery or AA-size alkaline batteries

> VFL (Visual Fault Location) function

> OTDR Viewer software for data analysis

> Unique hotkey design

> Narrow event blind zone, simple test of fiber patchcord

> High Capacity SD card

> Simple, fast, without complex training

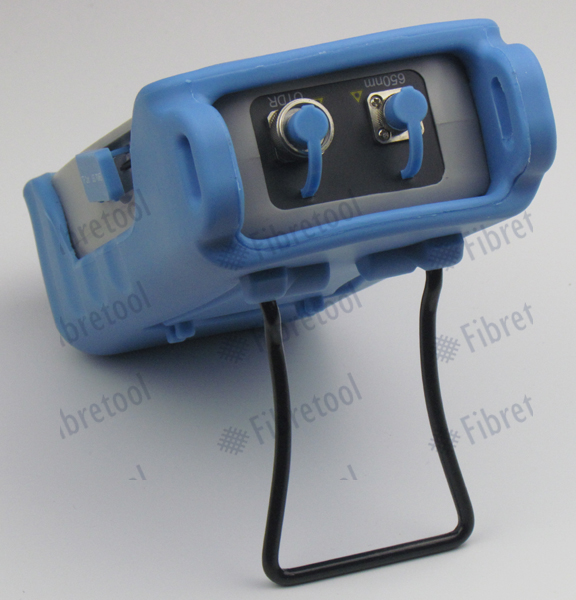

> Multiple light outputs, FC / ST / SC exchangeable

> Light alarm function, preventing the device from being damaged by the signal light



0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description

PART#: HW-358T

FEATURES



> Hand-held design, compact and lightweight; Anti-seismic, shockproof and appropriate for field operation.

> Starting in 3 seconds and measuring immediately

> Automatic and manual test function

> Low-power design, optional lithium battery or AA-size alkaline batteries

> VFL (Visual Fault Location) function

> OTDR Viewer software for data analysis

> Unique hotkey design

> Narrow event blind zone, simple test of fiber patchcord

> High Capacity SD card

> Simple, fast, without complex training

> Multiple light outputs, FC / ST / SC exchangeable

> Light alarm function, preventing the device from being damaged by the signal light




INTRODUCTION


As fiber optics plays more and more important role in modern telecommunication and CATV networks, the requirements to the construction, test and maintenance of fiber optics links also become more prominent.

Fibretool HW-358T is a unique product mainly designed for construction and maintenance of telecommunication and CATV networks. Fibretool HW-358T can be widely used in engineering construction maintenance test and emergency repair of all fiber optics related systems. Comparing with a regular OTDR, Fibretool HW-358T is more compact in size and easier for field use.

Fibretool HW-358T handheld design, compact and lightweight, easy to carry. Event information through TFT color display and data storage capabilities. Through the USB interface, the test data can be uploaded to the PC, to facilitate the post-processing, archiving and printing.


FEATURES


> Hand-held design, compact and lightweight; Anti-seismic, shockproof and appropriate for field operation.

> Starting in 3 seconds and measuring immediately

> Automatic and manual test function

> Low-power design, optional lithium battery or AA-size alkaline batteries

> VFL (Visual Fault Location) function

> OTDR Viewer software for data analysis

> Unique hotkey design

> Narrow event blind zone, simple test of fiber patchcord

> High Capacity SD card

> Simple, fast, without complex training

> Multiple light outputs, FC / ST / SC exchangeable

> Light alarm function, preventing the device from being damaged by the signal light


Specifications

Type

HW-358TA

HW-358TB

Wavelength(nm)

1310/1550

1310/1550

Dynamic Range(dB)(dB)②

28/26

32/30

Pulse Duration(ns)(ns)

10/20/50/100/200/500/
1us/2.5us

10/20/50/100/200/500/
1us/2us/5us/10us/20us

Event Dead Zone(m)(m)③

 ≤1.8

Attenuation Dead Zone(m)③

≤10

Attenuation Detect Accuracy(dB/dB)(dB/dB)

±0.05

Loss Threshold(dB)(dB)

0.01

Loss Resolution(dB)(dB)

0.01

Sampling Resolution(m)⑤

0.16~5

Distance Measure Accuracy(m)④

±(1 m + 5×10- 5×distance + sampling space)

Max Measuring Distance(Km)

1—120

1—160

Data Storage

>10000 records

Averaging Time

5s、15s、30s、1min、2min、3min

general specifications

Dimensions(H×W×D)

210× 112× 67

Weight

1kg

Temperature

Operating Temperature  0℃~50℃

Storage Temperature -20℃~60℃

Relative Humidity

0% ~95%(non-condensing)

Battery Life

lithium battery;10 hours continuous operation(Optional AA-size alkaline batteries)

interface type

Connector

FC(ST/SC Interchangeable)/PC

Connectivity

USB/ SD card

Matching function modules

Wavelength:650nm; Farthest distance test:5Km



Notes:

①、Specifications describe the instrument's warranted performance, measured with typical PC-type connectors. Uncertainties due to the refractive index of fiber are not considered;

②、The dynamic range is SNR=1 the maximum pulse width within averaging time of 3 minutes;

③、Conditions for dead zone measurement: Event Dead Zone with 10ns pulse width measurement, reflection strength below - 45 dB; Attenuation Dead Zone 20ns pulse width measurement, reflection strength below - 55 dB.

④、Do not include due to refraction caused by the uncertainty.

⑤、different spec,maybe different sampling rate
