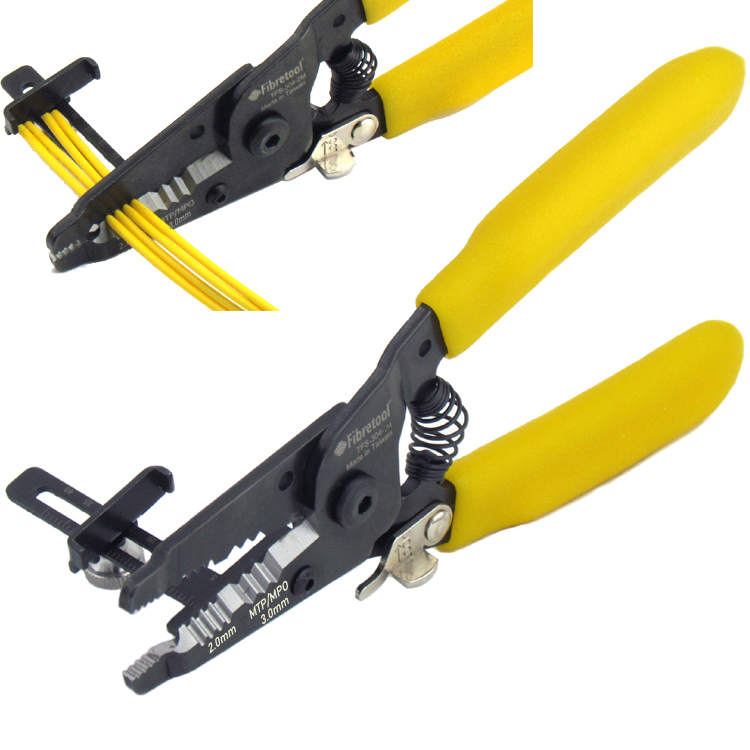

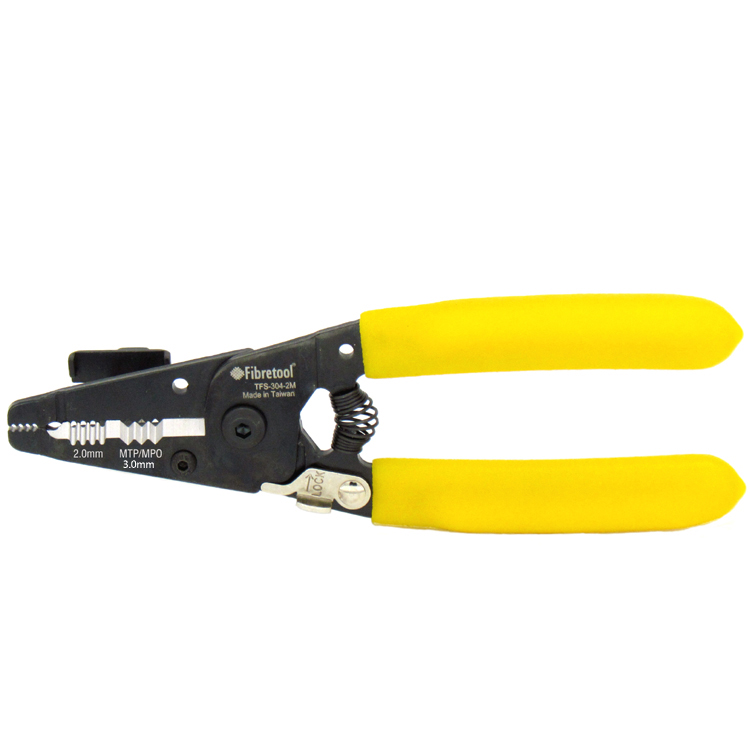

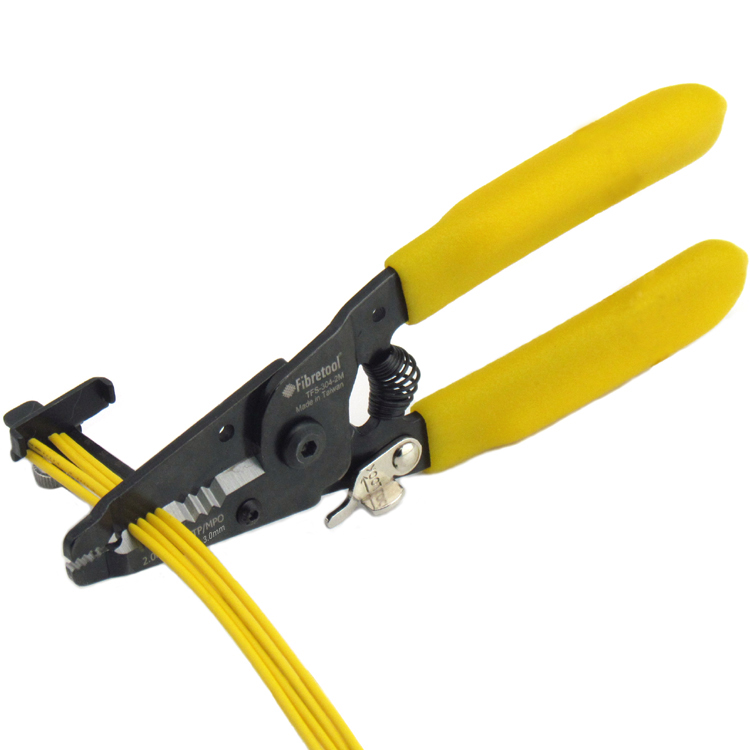

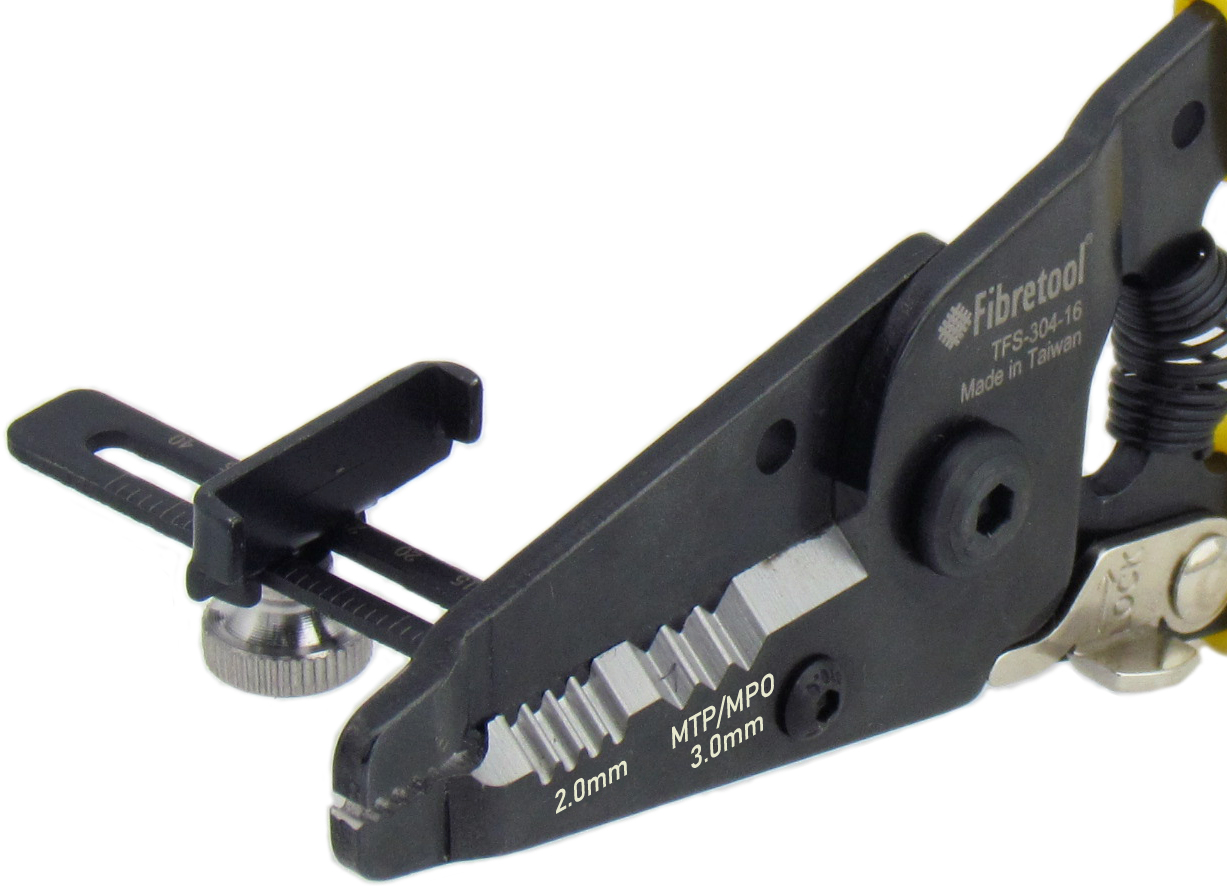

Zip-Duplex Fiber Cable Jacket Stripping Tool with Length Adjustment Fixture
PART#: TFS-304-2M
FEATURES;
● TFS-304-2M Multi-wire jacket stripping tool which can strip Zip Duplex cable 2mm & 3mm in one action.
● The new design of multi-wire stripper can strip 4 cores ×2.0 mm Zip duplex fiber jacket and 3 cores × 3.0mm cable or MTP/MPO cable jacket.
● Designed by 4 round & 3 V-shaped holes, also with length fixture, it can significantly improve production efficiency.
DESCRIPTION:

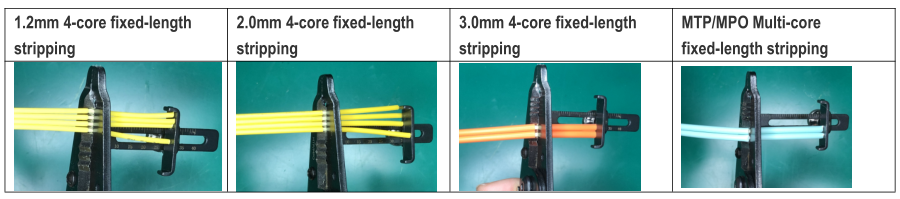

1. This stripper is suitable for stripping duplex and multi-core Fiber Cables:
4 cores ×2.0mm DUPLEX cables, 2 cores ×3.0mm DUPLEX cables and 2 cores × MTP/MPO multi-core optical cables.
2. 2~4 core cable can be stripped by one operation
3. Cable stripping length is adjustable from 5 mm-42 mm
4. All cutting surface are precision formed, hardened, tempered and anti-rust
5. The comfort anti-fatigue design handle ensures long-term workmanship
6. Length: 161 mm, weight: 145.50g

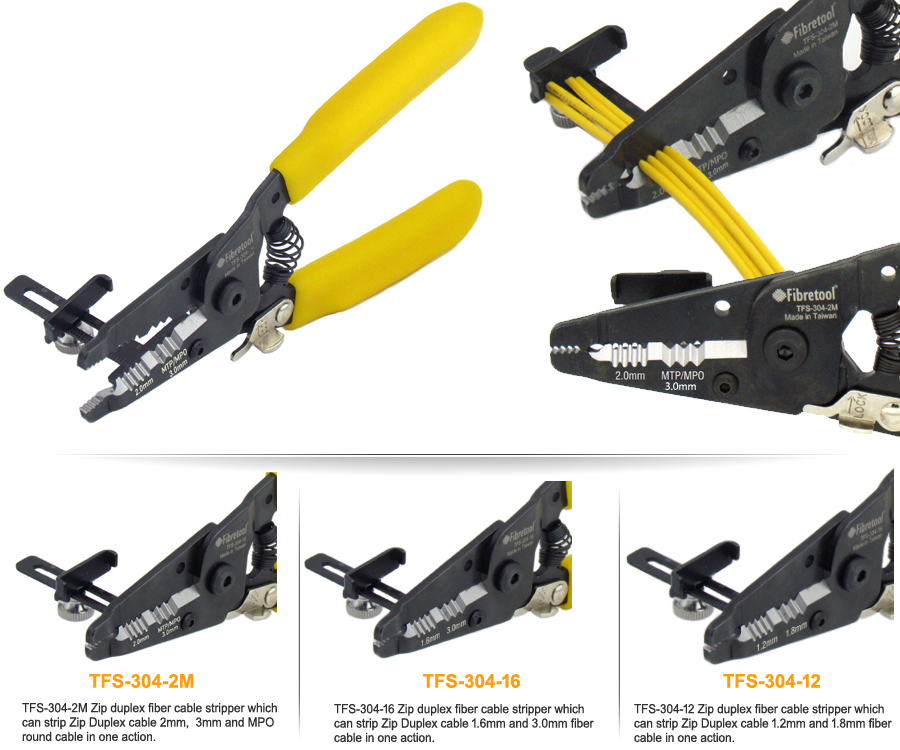

Specifications:
1. TFS-304-12 is suitable for stripping 1.2 mm four-core and 1.8 mm double-core cable.
2. TFS-304-16 is suitable for stripping of 4-core 1.6 mm and 2-core 3.0 mm cable.
3. TFS-304-2M is suitable for stripping of 4-core 2.0 mm and MTP/MPO multi-core cable.
TFS-304 Multi-wire Cable Jacket Stripper Operating Video Link:
See how the Fibretool TFS-304-2M zip duplex fiber cable jacket stripper works in this video.
https://youtu.be/rQ1baSakeg0
