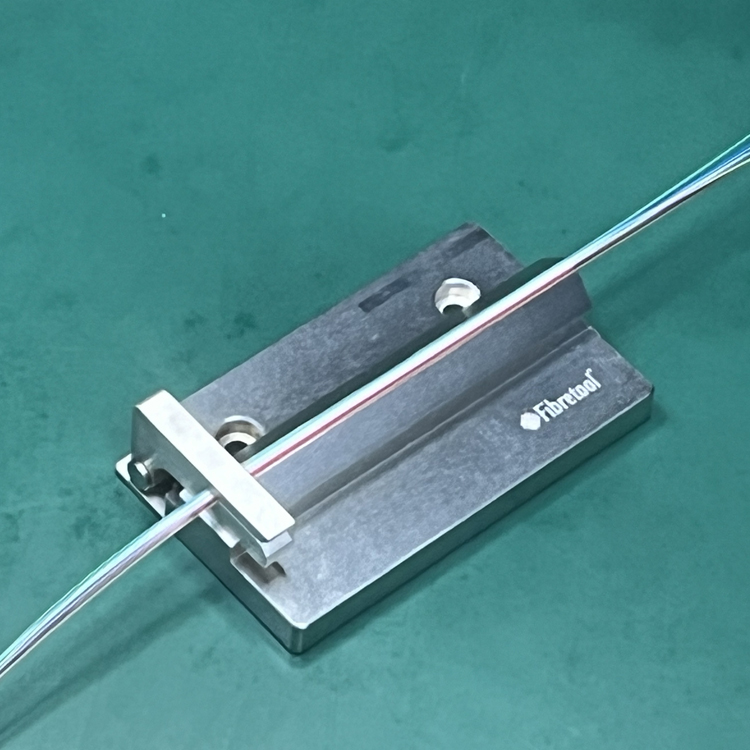

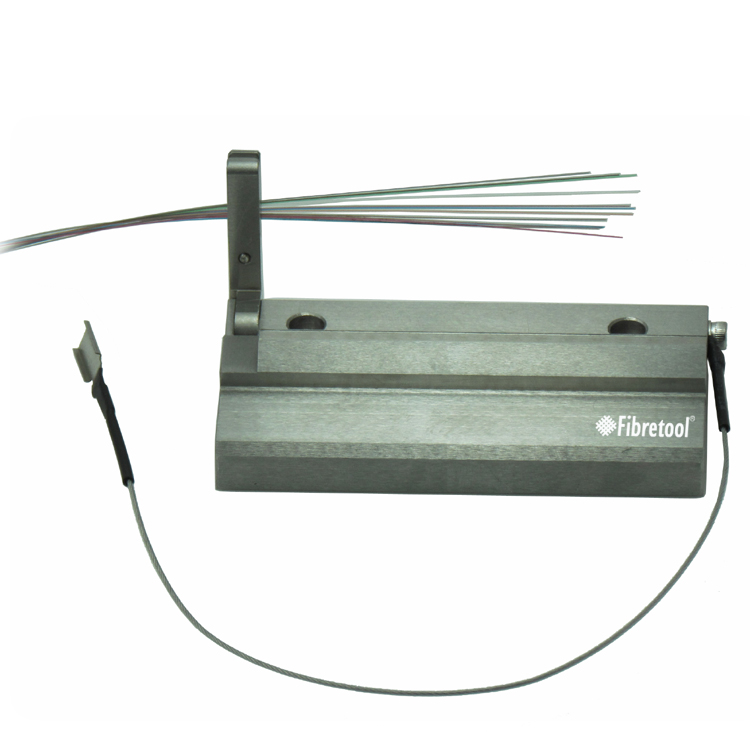

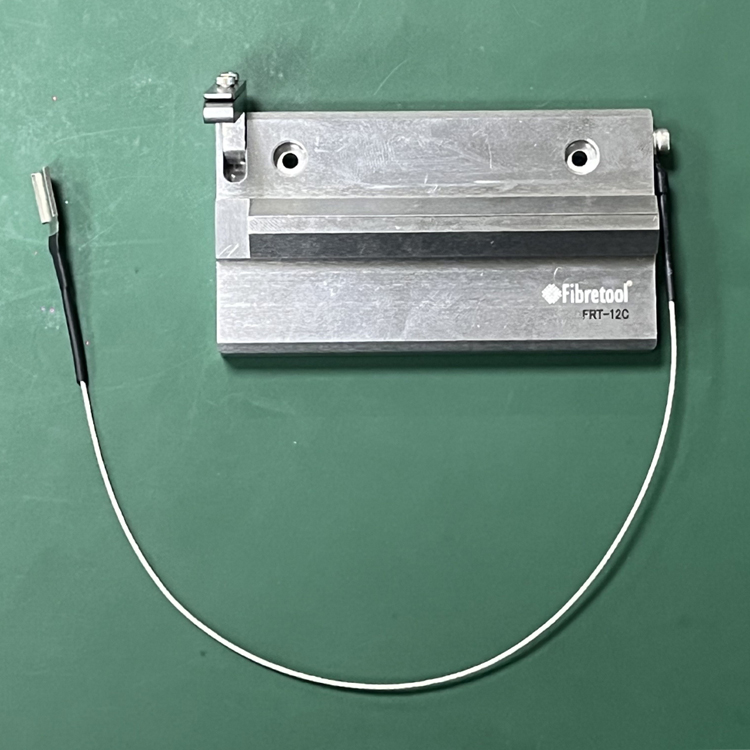

FRT-12C Ribbonizing Tool, is a kind of special tool to ribbonize and bond the 12-color coating fiber bundle, which array color fibers into different color sequence(type A / B / C or other) during manufacture MTP-MTP fiber cable.
PART#: FRT-12C
FEATURES;
● Array 12-color fibers into ribbon fibers.
● Ribbonizing slit width 300 micron, applicable to 210-250 micron coating fiber.
● Use ribbonizing glue to sick and bond fibers into ribbon fibers.
● Able to use 3M Scotch tape to stick and fasten fiber color sequence.
APPLICATION;
Stick and bond 250 micron coating fibers into ribbon fibers.
SPECIFICATION;
Model | FRT-12C |
Function | Array 12-color fibers, bond coating fibers into ribbon fibers |
Fiber diameter | 210-250um |
Array slit size | 300um width |
Ribbonizing groove | 3.00mm |
Cable type | 12 / 24 / 36 / 48 / 72 cores coating bundle fiber cable |
Ribbonizing fiber count | 12 fibers |
Dimensions | 90x50x25mm |
Weight | 150g |
