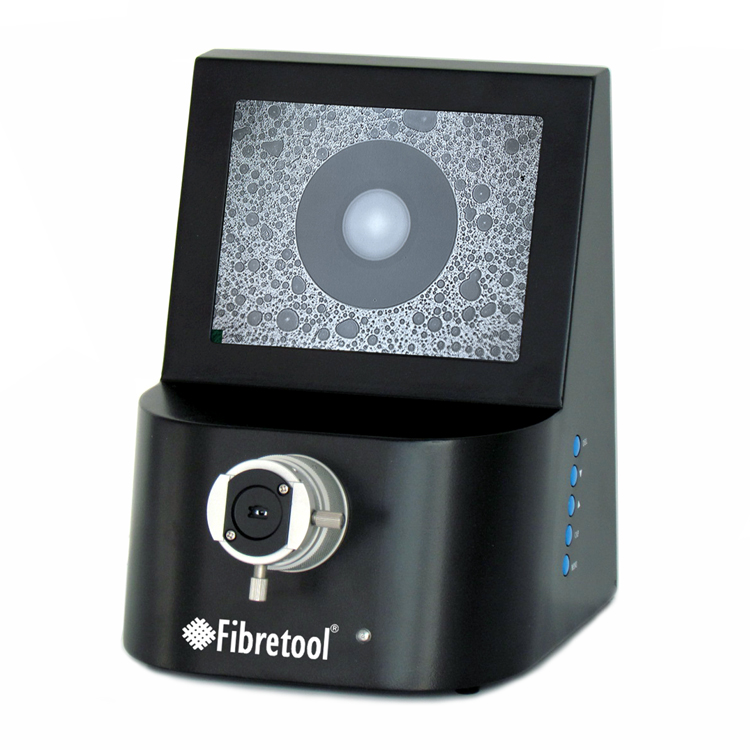

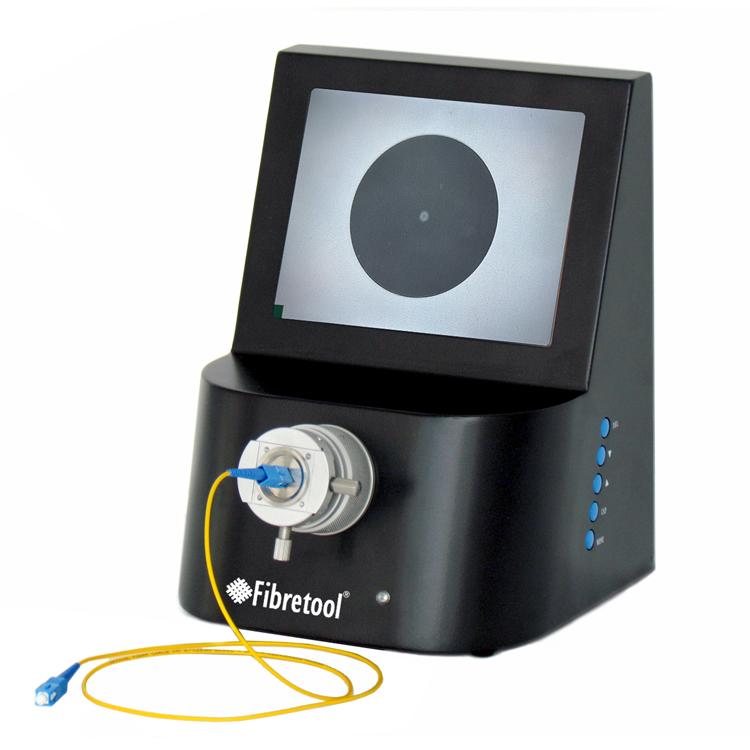

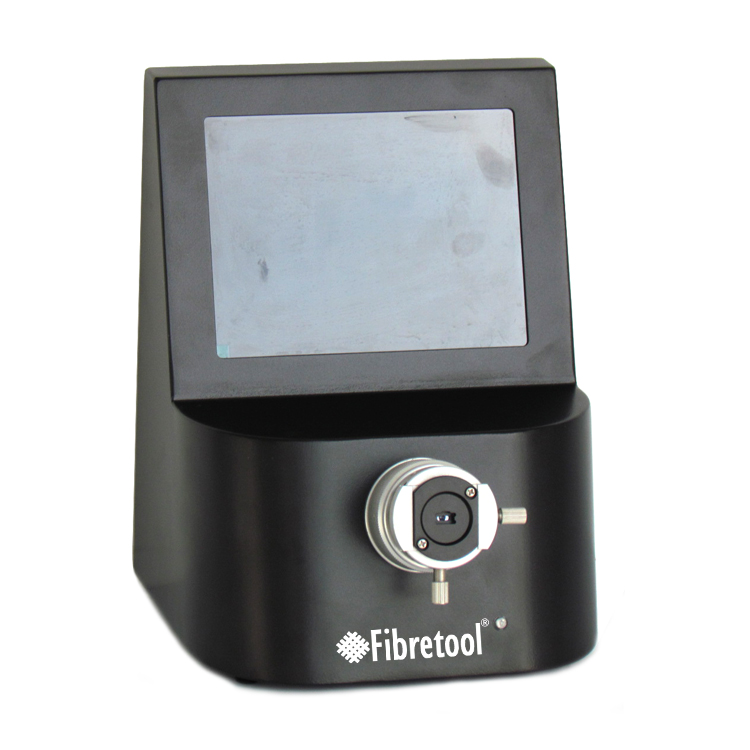

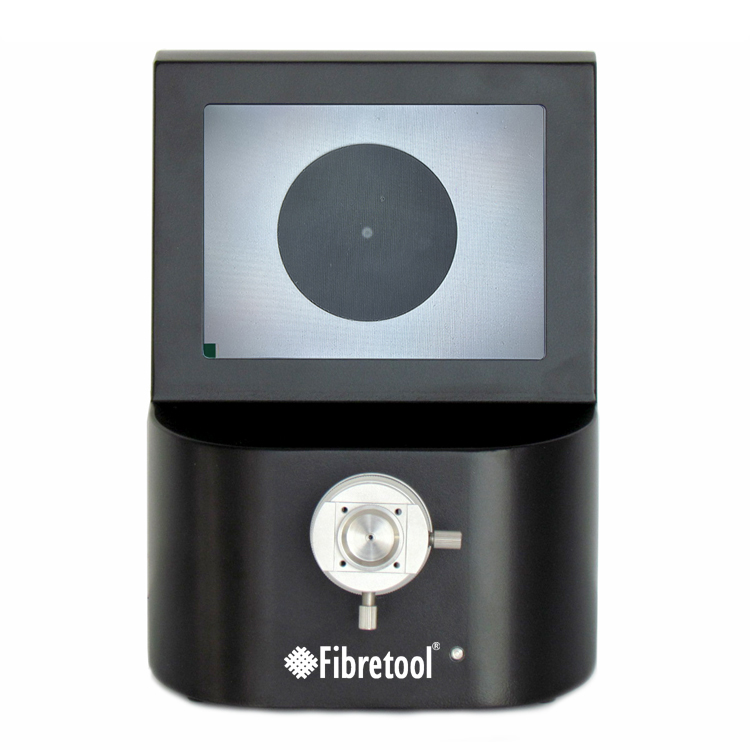

FTM-400X  400x Bench-top Optical Fiber Microscope
❤ Add to collection

FTM-400X 400x Bench-top Optical Fiber Microscope

Integrated design, Magnification option: 80X, 200X, 400X

PART#: FTM-400X

FEATURES;

● High Definition Images
With coaxial illumination optic magnify system, FTM-400X can easily find the slight defects and scratches on fiber endface. High resolution image sensor and 8"pure black and white digital TFT LCD can show the most real details of fiber endface.

This is an integrated fiber endface inspector, it combines optical microscope and monitor in a body other than separate designs. It has clear images and long life time. it has series of adaptors for various kinds of connectors such as multi fiber connectors, optical componentsIt is an essential instrument for optical manufacturing.

0.00
0.00
¥0.00
¥0.00
Weight:0.00KG
Description

Integrated design, Magnification option: 80X, 200X, 400X

PART#: FTM-400X

FEATURES;

● High Definition Images
With coaxial illumination optic magnify system, FTM-400X can easily find the slight defects and scratches on fiber endface. High resolution image sensor and 8"pure black and white digital TFT LCD can show the most real details of fiber endface.

This is an integrated fiber endface inspector, it combines optical microscope and monitor in a body other than separate designs. It has clear images and long life time. it has series of adaptors for various kinds of connectors such as multi fiber connectors, optical componentsIt is an essential instrument for optical manufacturing.


FEATURES;


 High Definition Images

With coaxial illumination optic magnify system, FTM-400X can easily find the slight defects and scratches

on fiber endface. High resolution image sensor and 8"pure black and white digital TFT LCD can show the most real details of fiber endface.

 FTM-400X high performance fiber optic microscope is specialized in application for fiber connector end face inspection, it is easy for use and accurate, It's not only can be applied to the universal FC/SC/ST and LC/MU connectors, but also can be applied to the MTP/MPO connectors.

 Easy operation and clear images

 Pre-positioning center,optical images always displayed in the center

 Ergonomic design,suitable for fiber optic connector manufactures

 Longevity,the internal light bulbs lasting for 5000 hourss

 Safe observation through the built-in CCD camera even if working on transmission of laser

 Optical magnification:400 times; (80x, 200x can be optional)

 Power: 110V-240VAC

 Adapter: MTP/MPO connector adapters, Universal adapter accepts most ST, SC & FC 2.5mm and 1.25mm LC/MU connector ferrules. MT ferrule adapters are available.
