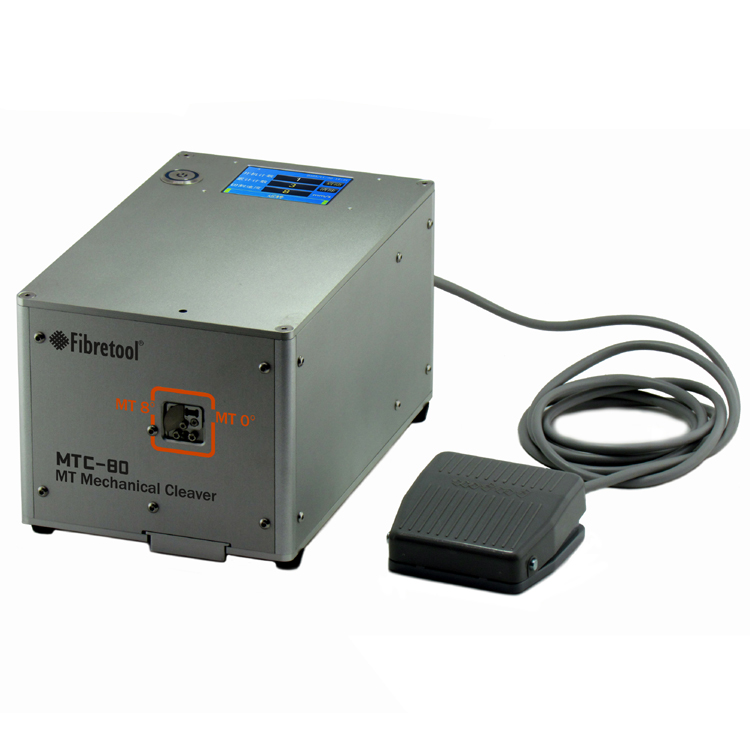

Automatic MT Ferrule Mechanical Cleaver
❤ Add to collection

Automatic MT Ferrule Mechanical Cleaver

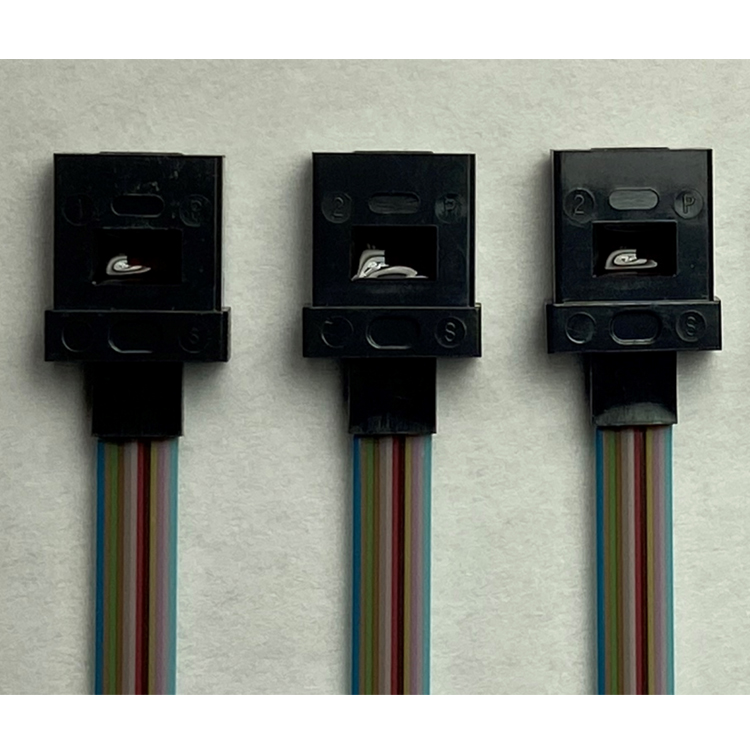

MTC-80 Automatic MT ferrule cleaver in a hgihly reproducible manner. When the ferrules are subsequently mounted on a polishing fixture, all automatically cleaved epoxy beads will protrude by the same amount, Leading to a much more consistent polish.


PART#: MTC-80

DESCRIPTION;

The MTC-80 Benchtop MT fiber mechanical cleaver is designed to cut all epoxied ferrules and connectors, including the LC and SC using 125 μm fibers, the 4-72 fiber MT ferrules and SMA connectors with fibers up to 2000 μm in diameter.



The MTC-80 contains a finer saw, optimized for cutting smaller diameter epoxied fibers that provides the smoothest cut possible, permitting a closer cut to the ferrule face and producing the ideal surface for polishing.


0.00
0.00
¥0.00
¥0.00
Weight:0.000KG
Description

MTC-80 Automatic MT ferrule cleaver in a hgihly reproducible manner. When the ferrules are subsequently mounted on a polishing fixture, all automatically cleaved epoxy beads will protrude by the same amount, Leading to a much more consistent polish.


PART#: MTC-80

DESCRIPTION;

The MTC-80 Benchtop MT fiber mechanical cleaver is designed to cut all epoxied ferrules and connectors, including the LC and SC using 125 μm fibers, the 4-72 fiber MT ferrules and SMA connectors with fibers up to 2000 μm in diameter.



The MTC-80 contains a finer saw, optimized for cutting smaller diameter epoxied fibers that provides the smoothest cut possible, permitting a closer cut to the ferrule face and producing the ideal surface for polishing.



SPECIFICATIONS;

Model

MTC-80

Applicable Fiber

MT,   MT-APC

Processing Time

~ 1 second   for 12-fiber MT ferrules

Cladding Diameter

250μm

Maximum Fiber Protrusion

10 mm   from face of ferrule before cutting

Recommended Cut Length

100 μm   for MT and MT-APC

Cut Angle

+/- 0.5°

Expected Saw Lifetime

>   600,000 cuts when cutting 12-fiber MT ferrules

Power Supply

110-240   Vac, 50-60 Hz, 1.2A

Dimensions (W X D X H)

225(W) X   140(D)x 128(H) mm

Weight

4.20 Kg
