PART#: HW-05C
FEATURES;
• Compact Ergonomic Design
• High Precision Cleavers
• 250um Coated or 900um Buffer fiber
• Singlemode or Multimode use
• 12 Position Rotatable and Replicable Blade
• Part: blade model: FCP-20BL
Overview:

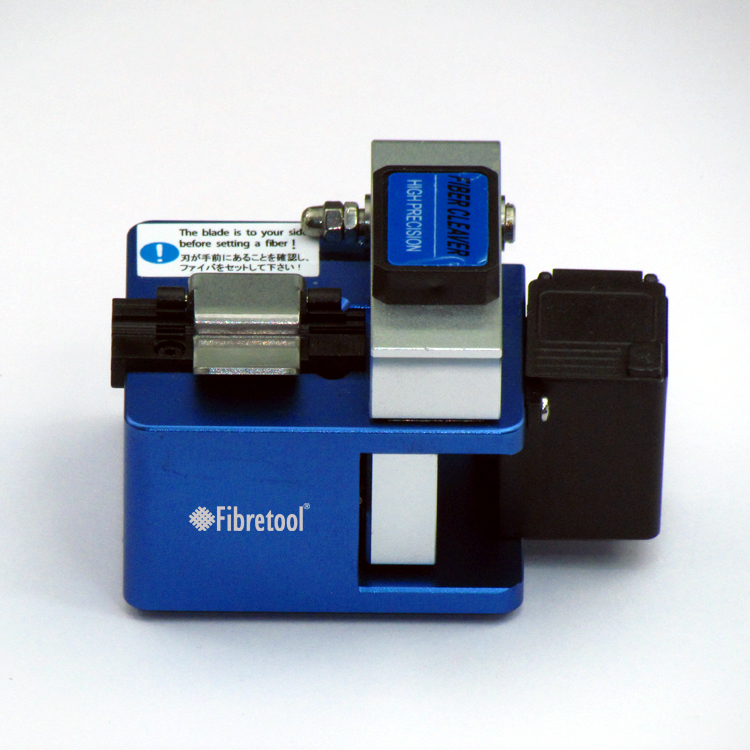

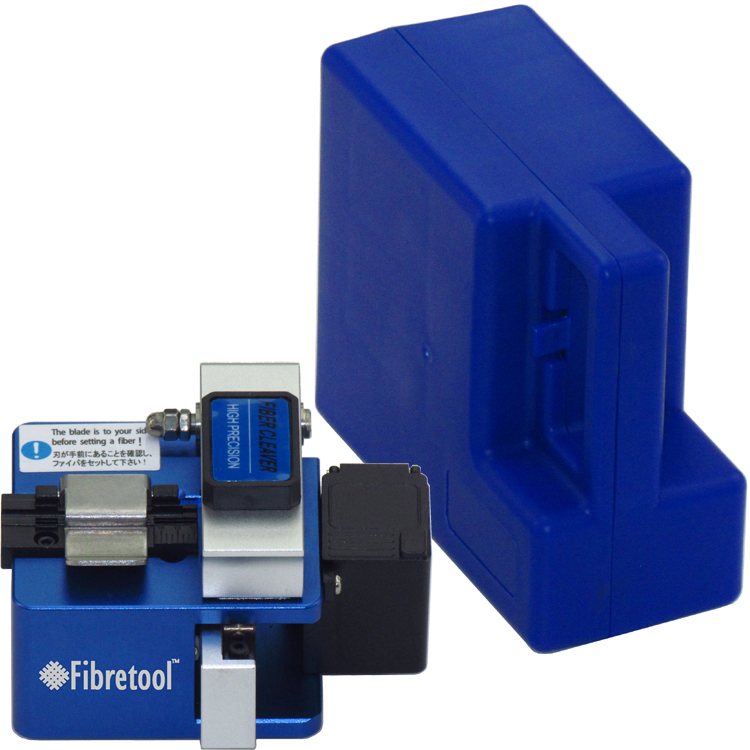

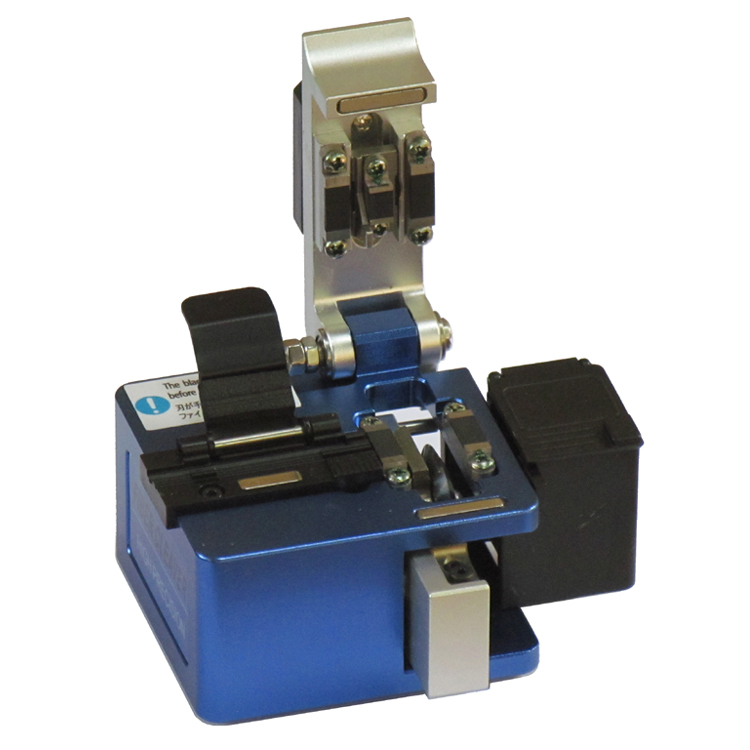

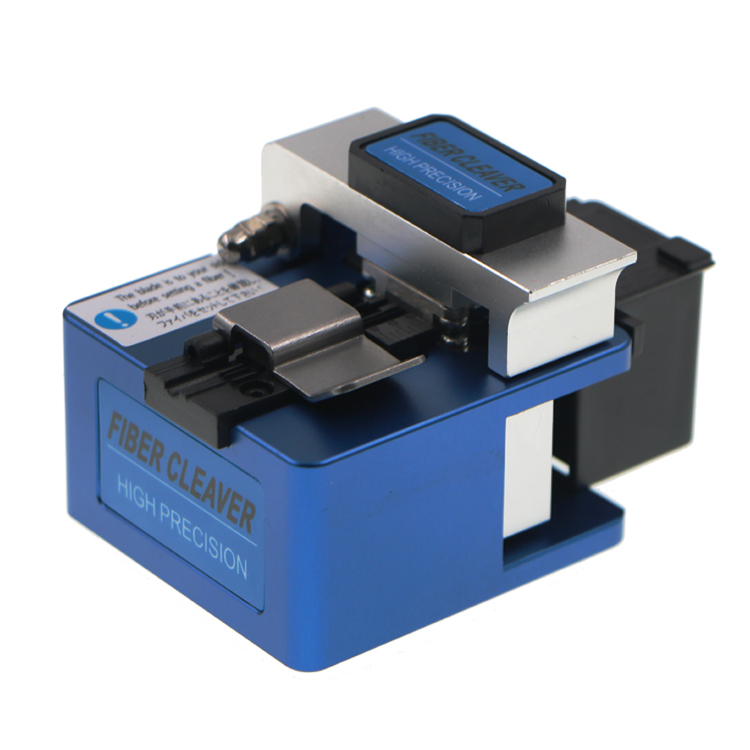

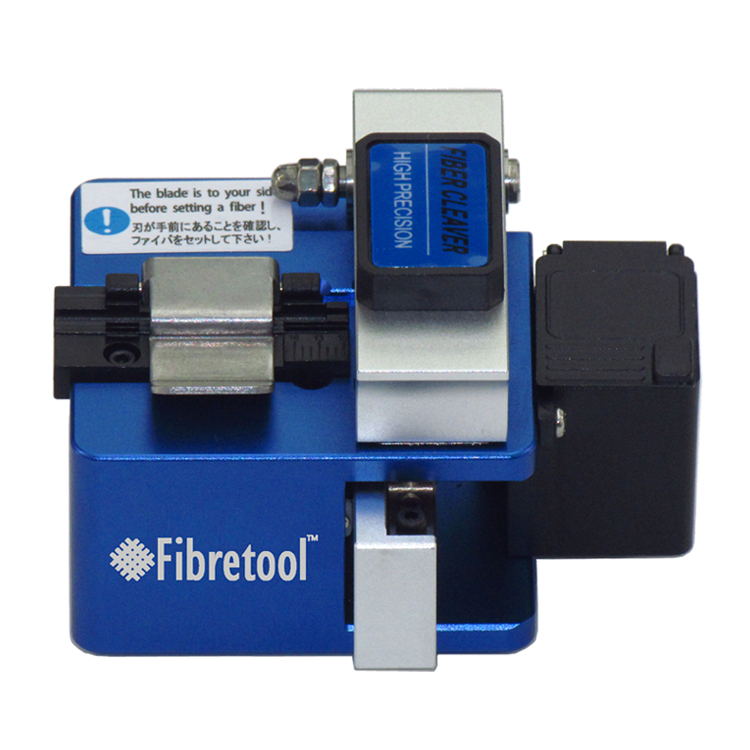

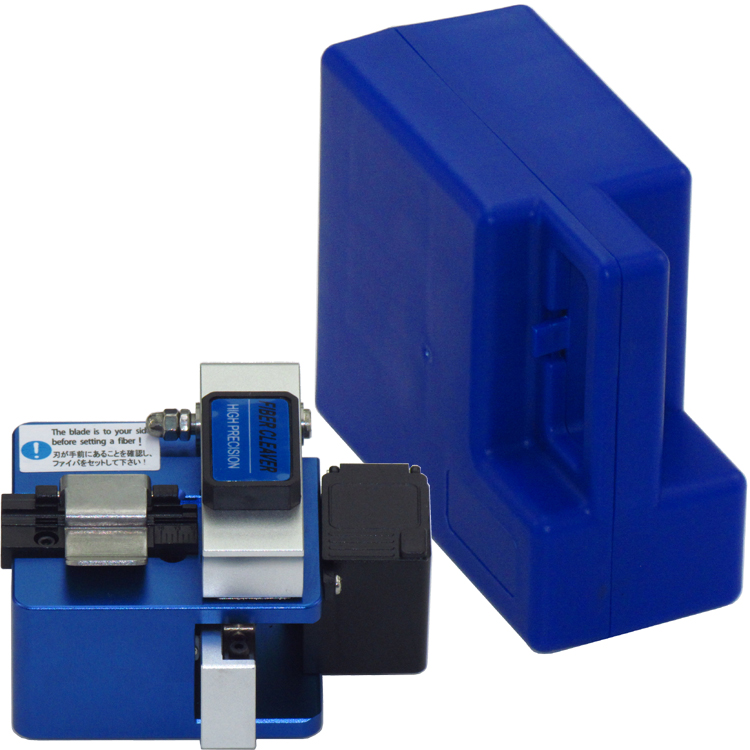

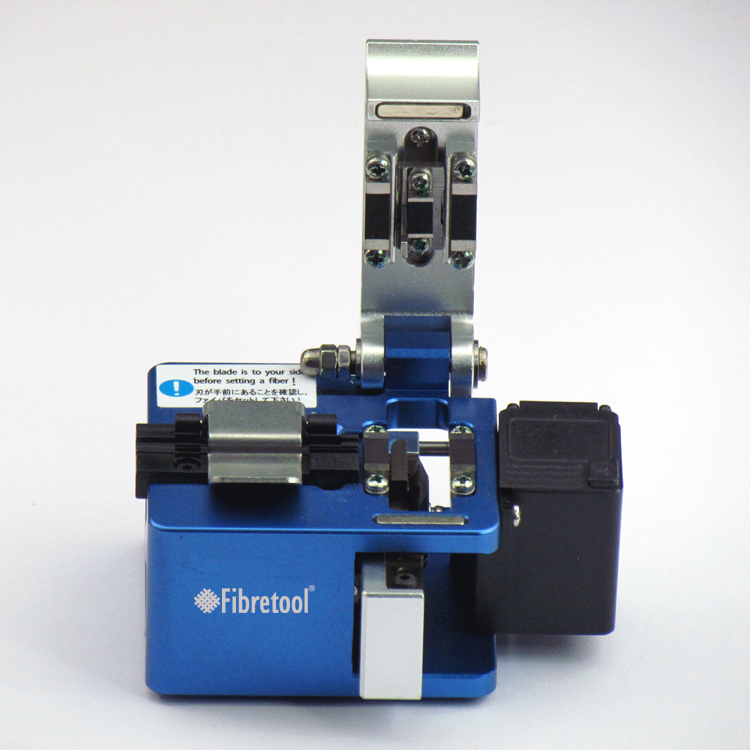

The HW-05C Fiber Optic Cleaver gives you high precision at low cost.
This compact and easy to use cleaver is perfect for all cleaving applications,
from fusion splicing to mechanical splicing and field installing quick termination connectors.
The HW-05C works with both 250um coated and 900um buffered fibers.

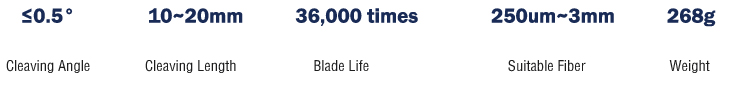

Fiber Diameter | 125um |
Coating Diameter | 250um ~ 900um |
Cleave Angle | 90o ± 0.5o |
Cleave Length | 10mm ~ 20mm |
Blade Life Time | 36,000 cleaves (3,000 per blade position) |
Cleaver Dimensions | 58 × 55 × 48mm (without fiber trash bin) |
Weight | 268g (without fiber trash bin) |
